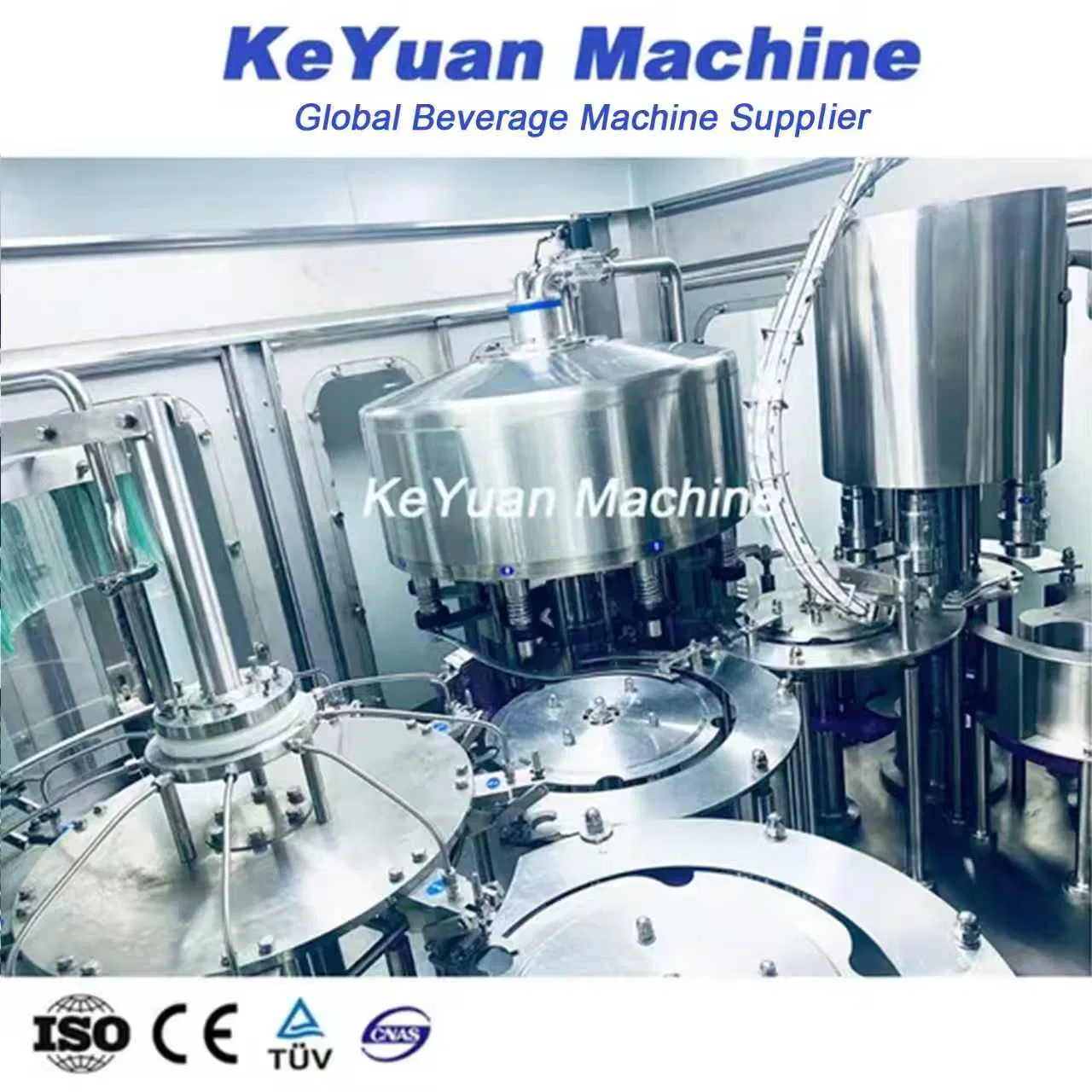

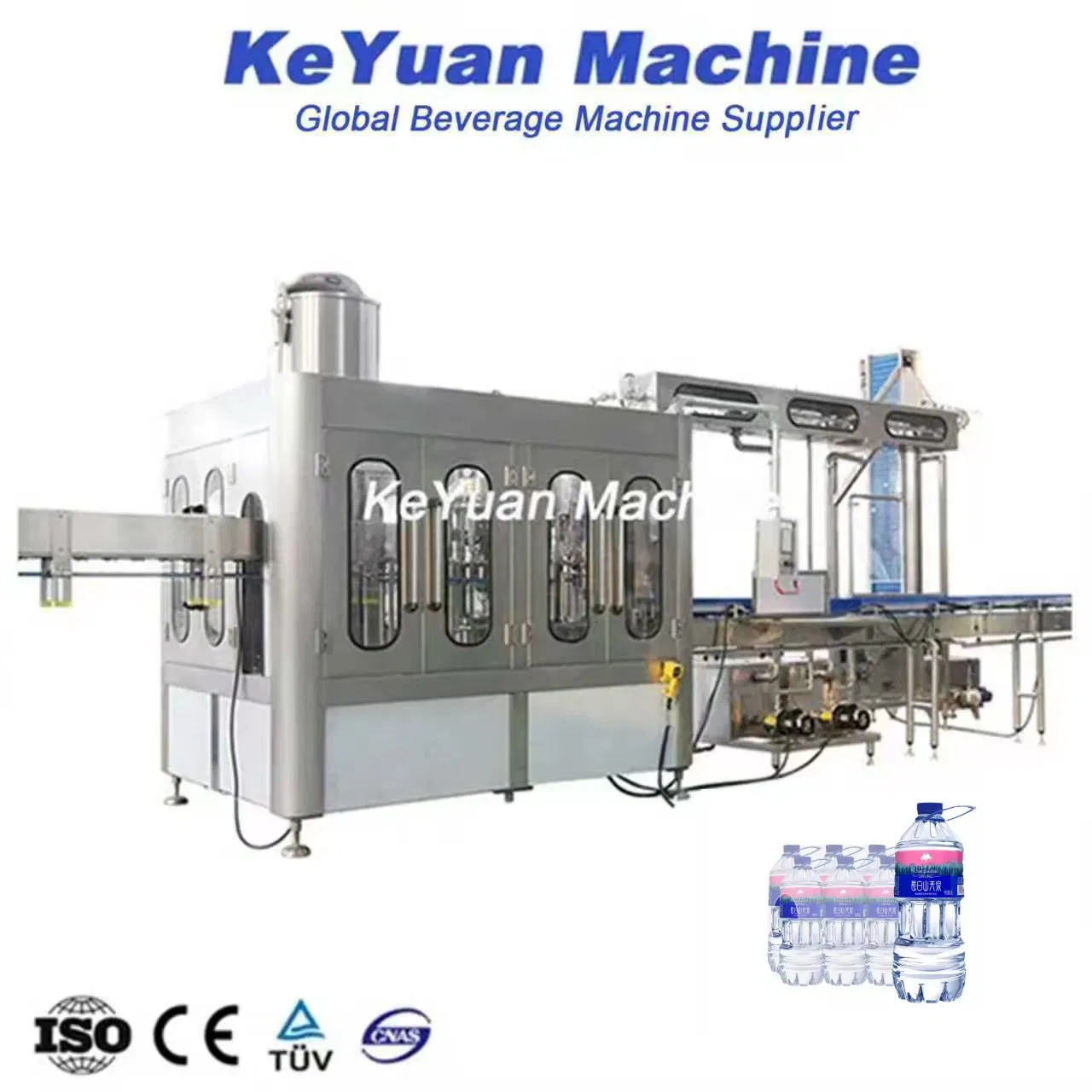

Stainless Steel 304 5L Monoblock Water Filling System for Pet Bottles

Customization:	Available
After-sales Service:	Overseas Engineer Provided
Warranty:	2 Years

Technical Specifications

Model NO.

CGF12-12-6

Type

Weighing-type Filling Machine

Automatic Grade

Automatic

Material Type

Liquid

Filling Valve

Multi-Head

Structure

Rotary

Packaging

PET Bottle (3L-15L)

Capacity

4000 BPH (for CGF12-12-6)

Product Overview

⚙️

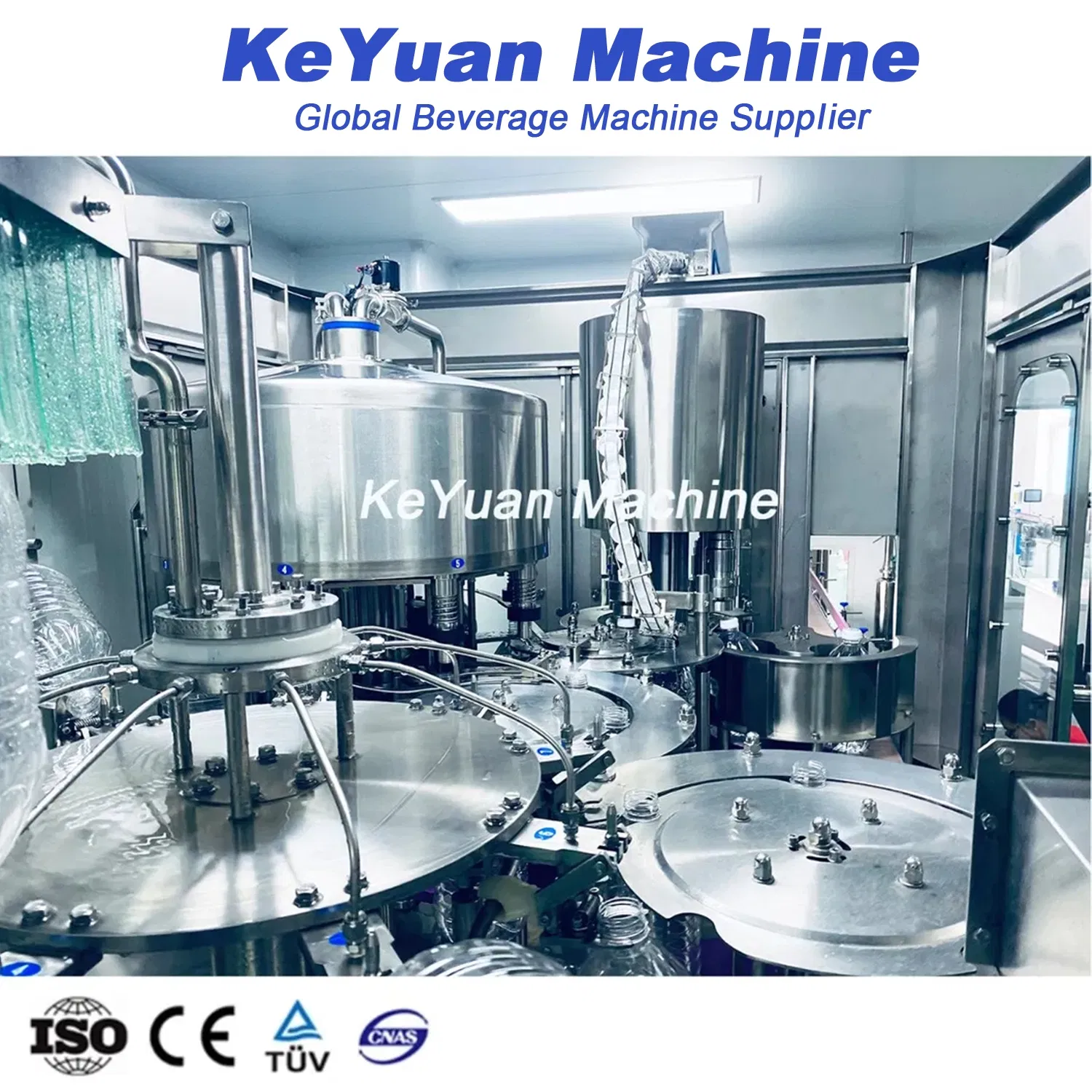

3-in-1 Rotary Bottling Solution Highly adaptable system engineered for large PET bottles (3L to 10L) with zero parts changeover.

This advanced system features a robust all 304 stainless steel construction. It includes efficient water-spray rinsers that reduce water consumption while ensuring superior cleanliness for high-volume production of mineral water, drinking water, and edible oil.

High-Accuracy Filling: PLC-controlled valves ensure smooth and precise volume for various liquids.
Gentle Capping: Electromagnetic heads with torque control minimize bottle stress.
Intelligent Automation: "No Bottle, No Fill/No Cap" logic prevents waste and maximizes efficiency.

Core Machine Modules

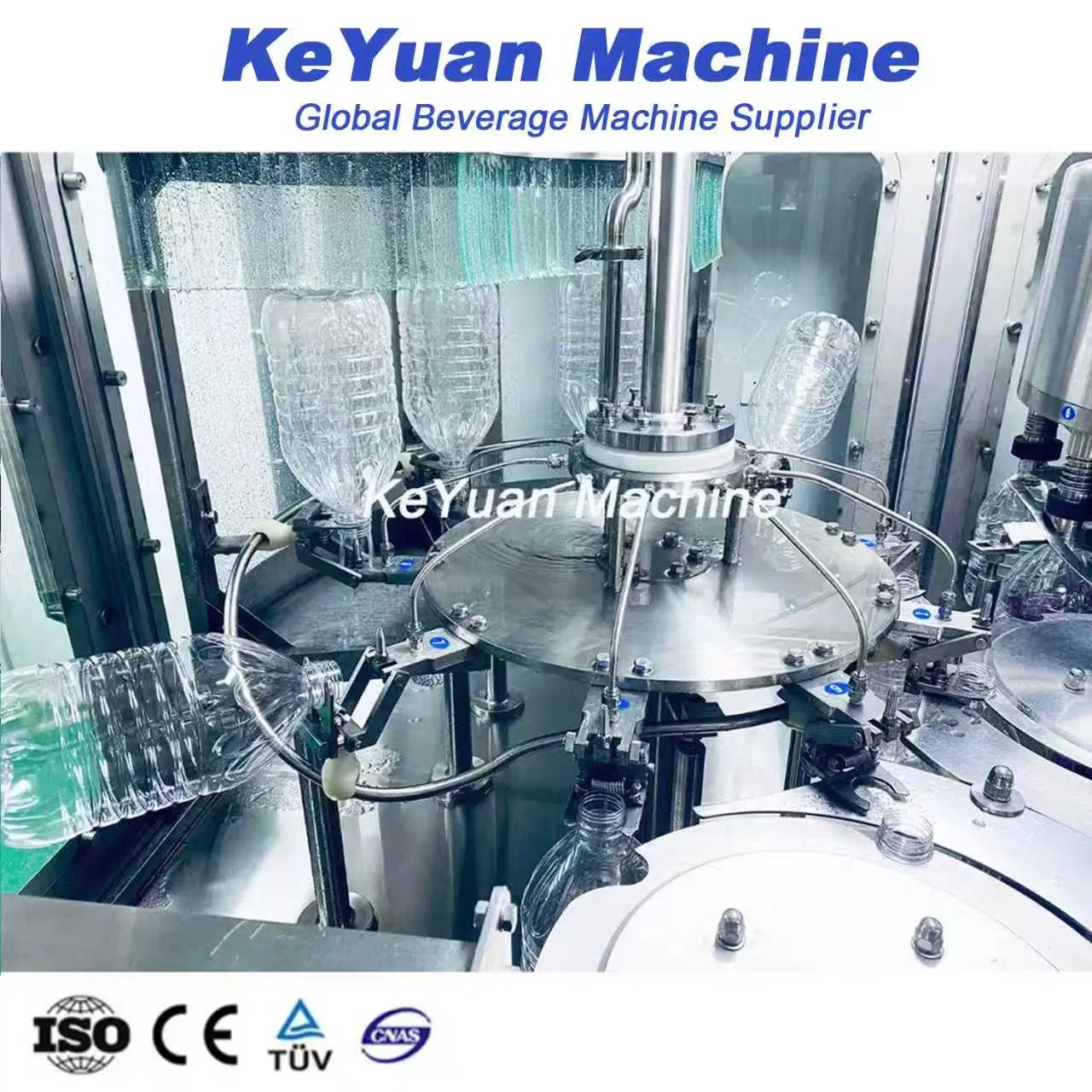

💧 Washing Section

Direct air conveyor infeed connected to the starwheel. Features water-efficient 304/316 stainless steel spray heads and scratch-resistant grippers with soft plastic pads.

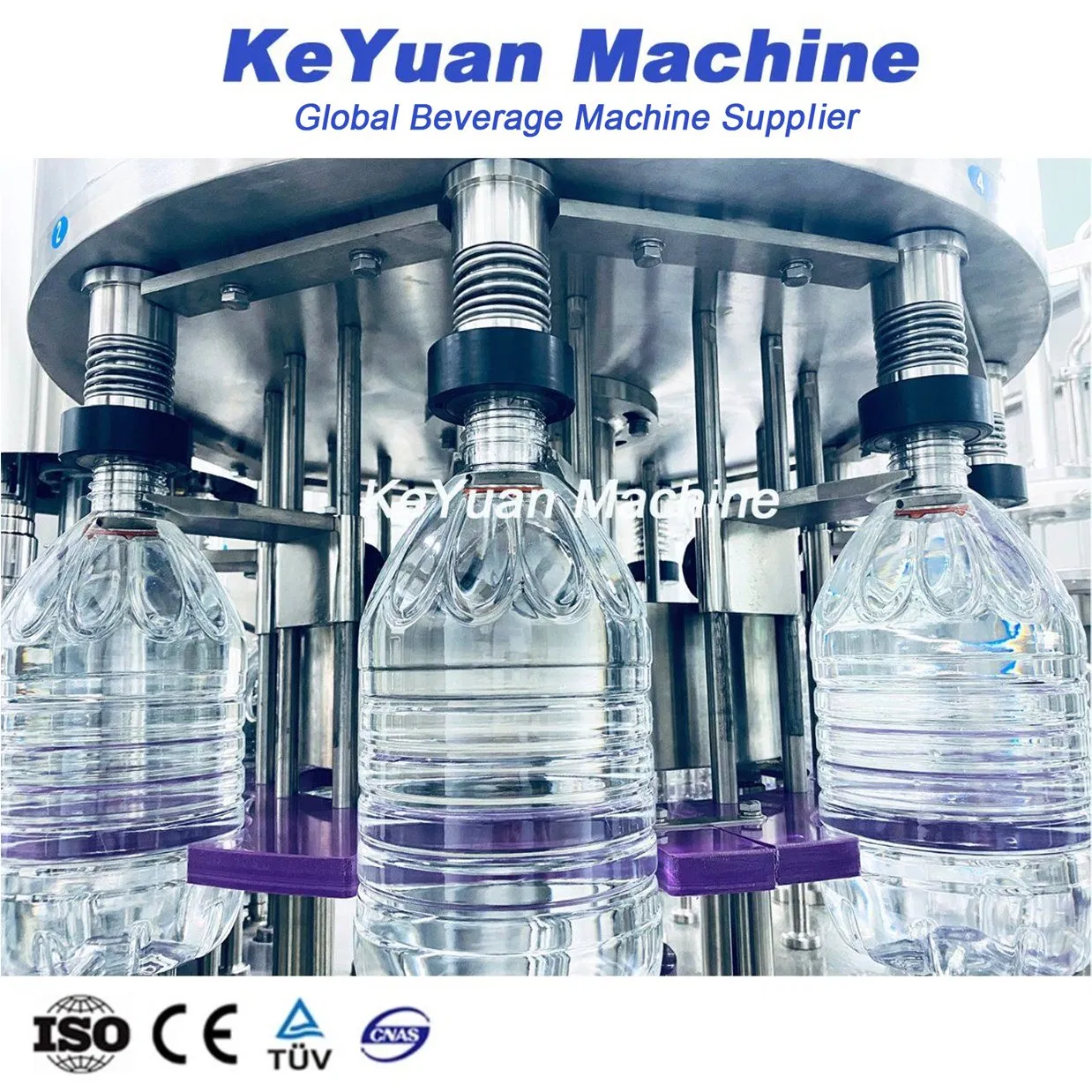

🍾 Filling Section

High-precision 304/316 nozzles for uniform liquid levels. Hygienic design with no dead corners and finely polished product-contact surfaces.

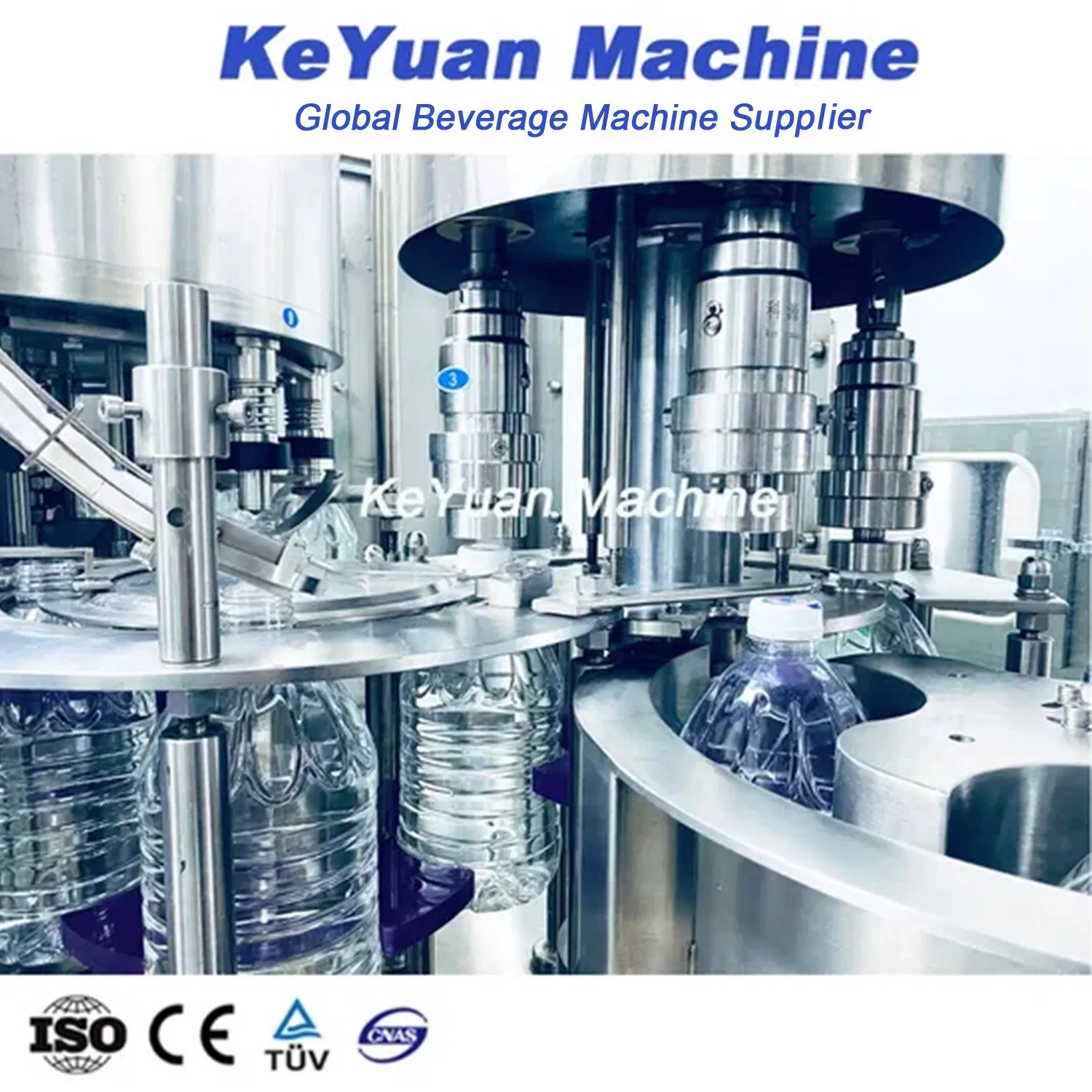

🔩 Capping Section

Place & Cap system with electromagnetic heads. Features torque-release functions and a defect rate of ≤0.2% for consistent sealing.

Model Comparison

Parameter/Model	CGF9-9-4	CGF12-12-6	CGF18-18-6
Rated Capacity	2500 BPH	4000 BPH	6000 BPH
Washing/Filling Heads	9 / 9	12 / 12	18 / 18
Capping Heads	4	6	6
Main Motor Power	2.5kW	4.5kW	5.5kW
Dimensions (mm)	280020002200	350020002200	420020002200

Supporting Equipment

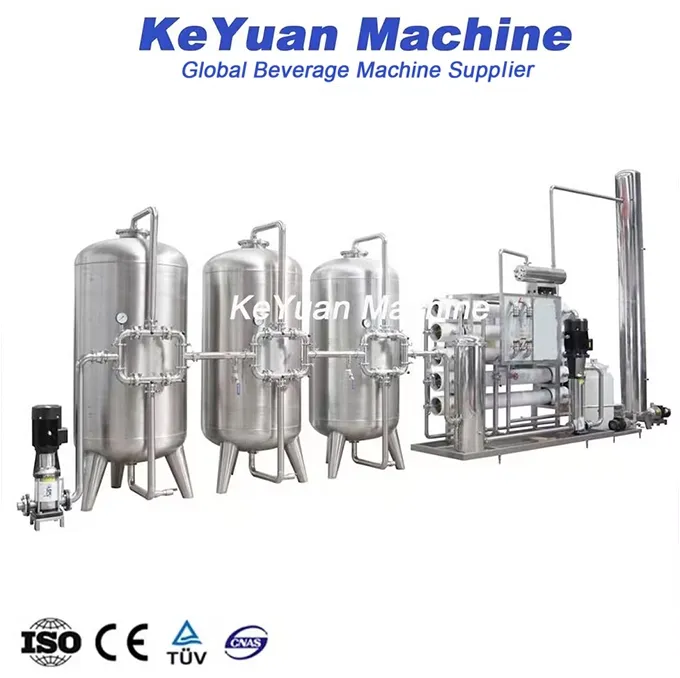

Water Treatment System

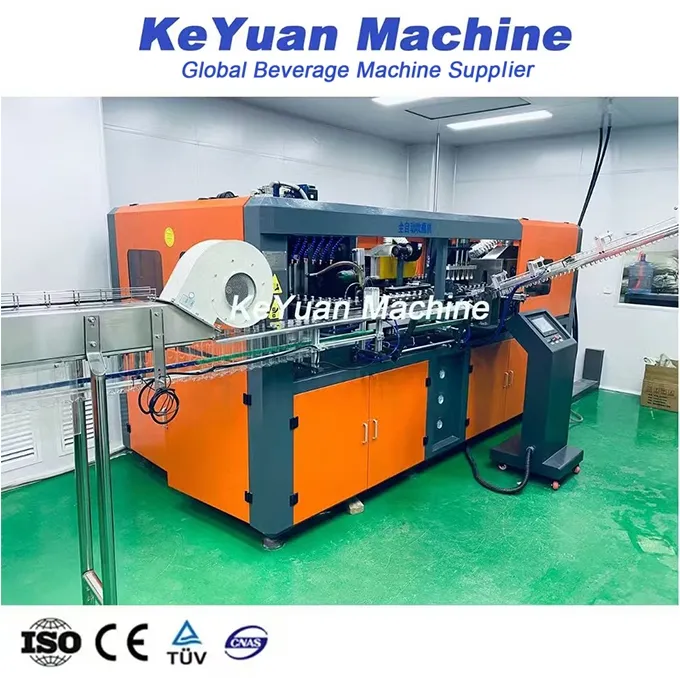

Automatic Blowing Machine

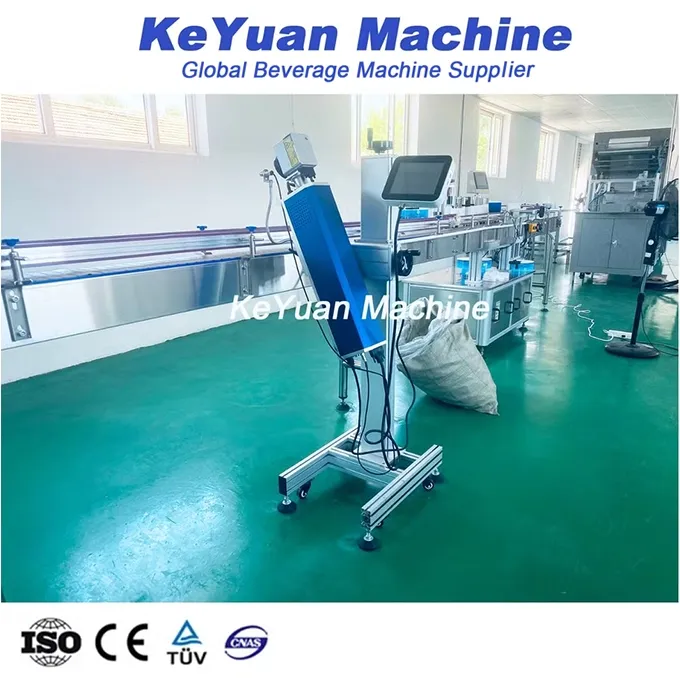

Laser Date Printer

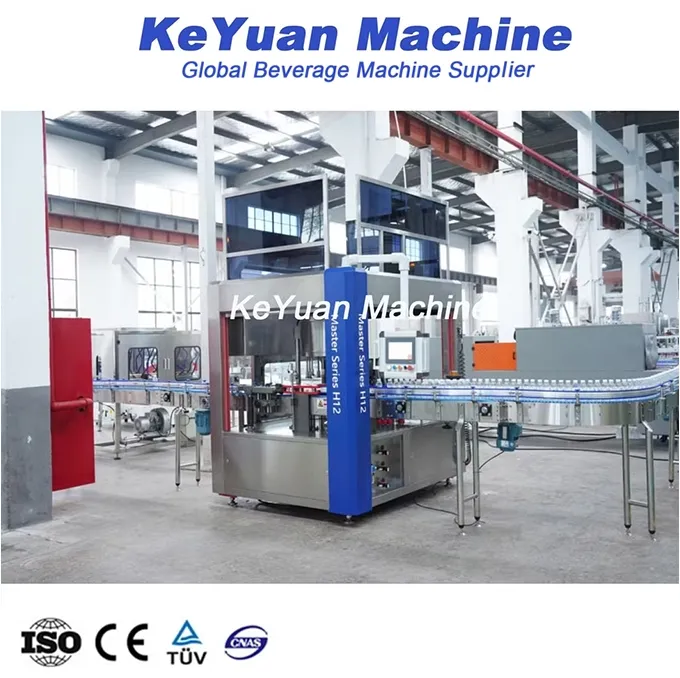

Hot Melt Glue Labeler

Full Lifecycle Service

Pre-Sales Support

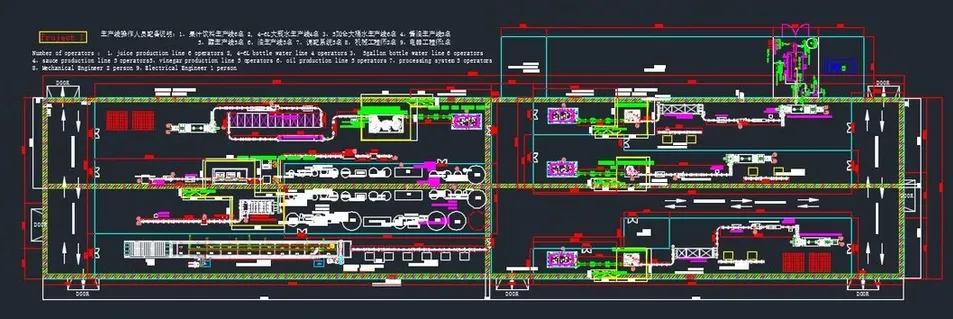

Customized factory layout planning
Machine operation video demonstrations
Technical inquiry responses within 24 hours

After-Sales Service

Engineers dispatched for site installation
Weekly production progress updates
8-hour thorough test runs before delivery

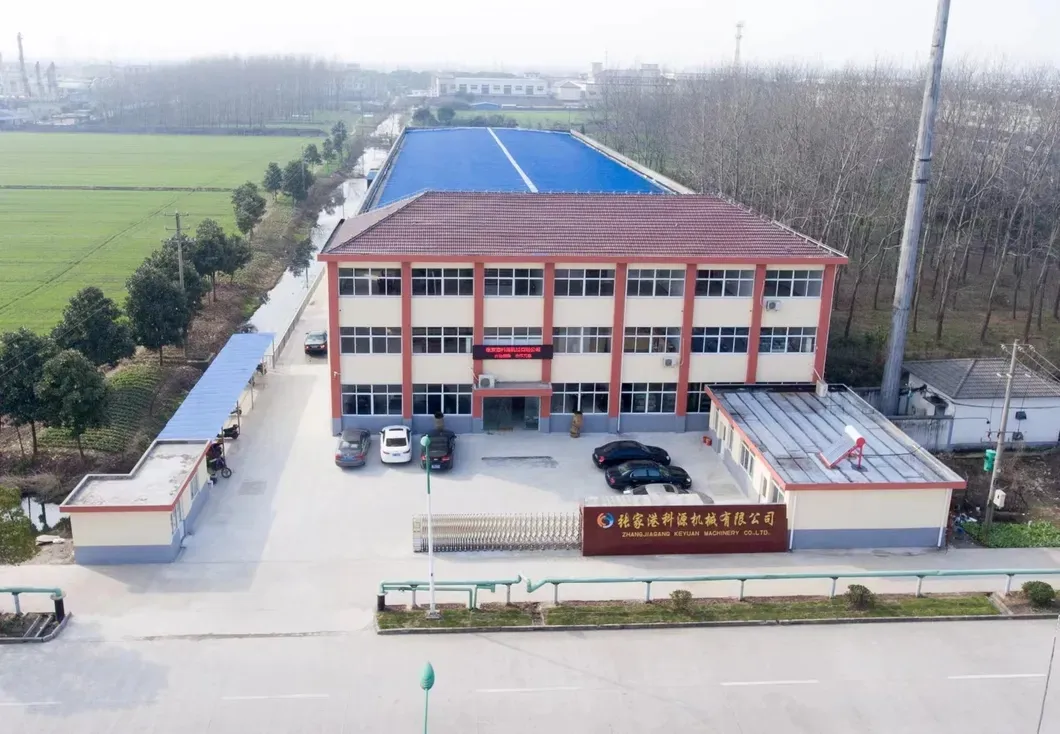

Manufacturing Excellence

As a leading integrated manufacturer in the beverage packaging industry, we specialize in complete production lines for carbonated drinks, mineral water, fruit juice, and protein beverages. With over two decades of experience, we provide turn-key solutions from R&D to global after-sales support.

Frequently Asked Questions

1. What bottle sizes can this filling machine handle?

This 3-in-1 bottling line is specifically engineered for large PET bottles ranging from 3L to 10L. Custom configurations for bottles up to 15L are also available.

2. Is it difficult to switch between different bottle volumes?

No, the key advantage of this system is zero parts changeover when switching between bottle sizes within the 3L-10L range, enabling seamless production shifts.

3. What materials are used for the machine construction?

The entire machine is constructed using high-quality 304 or 316 stainless steel for all product-contact surfaces to ensure hygiene and corrosion resistance.

4. How does the "No Bottle, No Fill" system work?

The machine uses intelligent PLC sensors to detect the presence of a bottle. If no bottle is detected at the valve, it will not trigger the filling or capping process, significantly reducing waste.

5. Do you provide installation and training services?

Yes, we provide turnkey solutions which include dispatching engineers to your site for professional installation, commissioning, and staff training.

6. What is the typical production capacity of these lines?

Depending on the model, capacity ranges from 2500 BPH (CGF9-9-4) up to 6000 BPH (CGF18-18-6) for large format bottles.
