Advanced Smart Packing and Sealing System for Plastic Cups

Basic Specifications

Model NO.

YB-520

Automatic Grade

Automatic

Application

Drinks, Oil, Tea, Fish, Meat, Snack, Rice, Flour, Seasoning

Type

Forming Filling Sealing Machine

Driven Type

Electric

Material Type

Powder

Packaging

Cartons

Packaging Material

Film

HS Code

8441309000

Transport Package

Wooden Box by Sea

Production Capacity

2000 Sets/Year

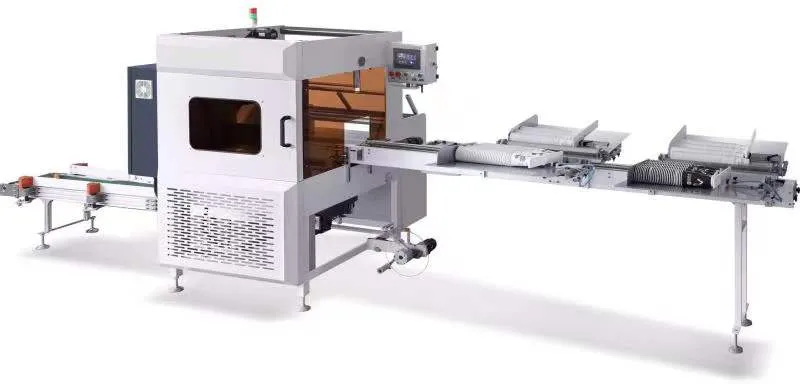

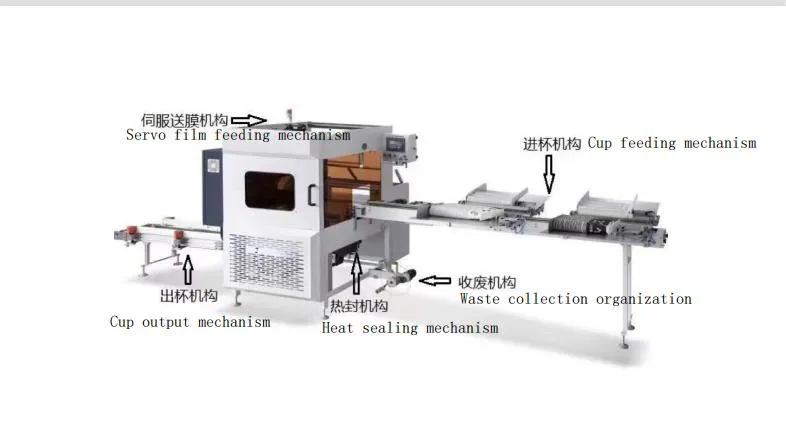

YB-520 Horizontal Packaging Machine - Four Stations

Equipment Introduction

1

Cup feeding: After the paper cup is counted by the cup counting frame, it slides onto the cup table. Once detected by the optical eye, the turning mechanism sends it to the heat sealing splint.

2

Film feeding: Upon cup detection, the PLC program triggers the servo driver to output the precise film length required based on the cup caliber.

3

Heat sealing: The hot air splint and sealing knife complete the bag sealing process efficiently.

4

Cup output: Sealed cups are dropped onto the conveyor and sorted into boxes via the PLC memory function.

Core Mechanism Characteristics

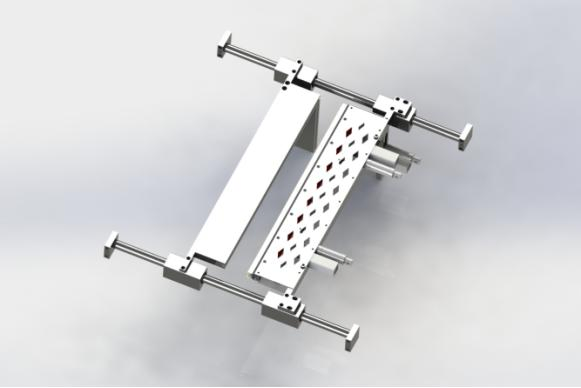

Mechanical and pneumatic execution ensures firm and beautiful incisions. Optimized for low noise and vibration. The cutter uses specialized quenching processes, making it compatible with PE, OPP, PP, and POF films.

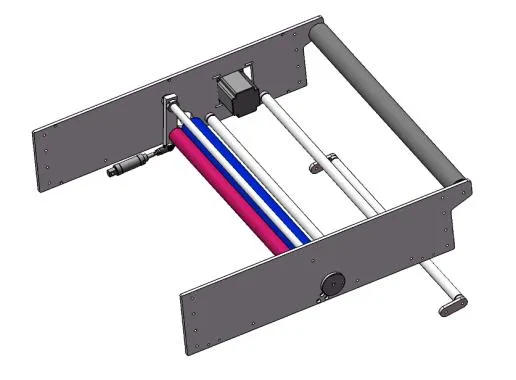

The servo motor film feeding mechanism provides high accuracy. Film lengths can be set in groups for various paper cup sizes, significantly reducing material waste.

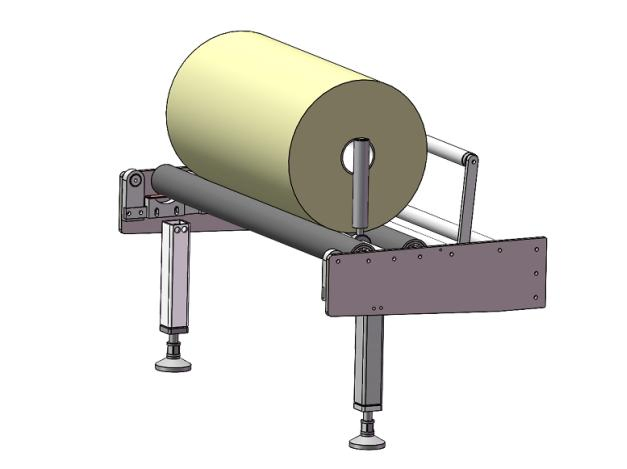

Floor-supported film mechanism allows for faster threading and loading of larger, heavier film materials compared to traditional suspended systems.

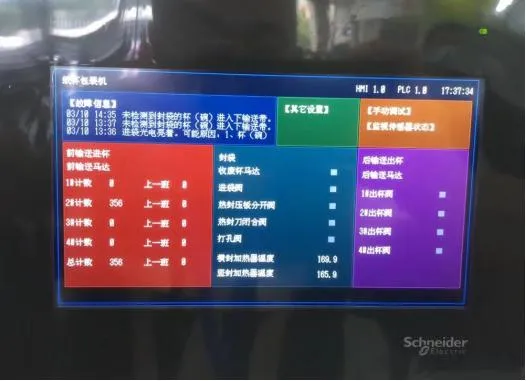

Equipped with imported international brand PLC programmable controllers and an intuitive touch human-machine interface for simplified operation.

Top 10 Equipment Advantages

4 independent motor controls (servo motors for feeding, discharging, and waste collection).
Advanced motion controller for high-speed command response.
Ultra-precise product positioning.
Independent temperature modules for stable and uniform heating.
304 stainless steel construction for all product contact parts.
Full integration of international brand electrical components.
Anti-empty bag function: Automatic start/stop to save film.
Multi-specification production capability on a single machine.
Automatic shutdown alarm for insufficient air pressure.
Proven quality through years of cooperation with top-tier manufacturers.

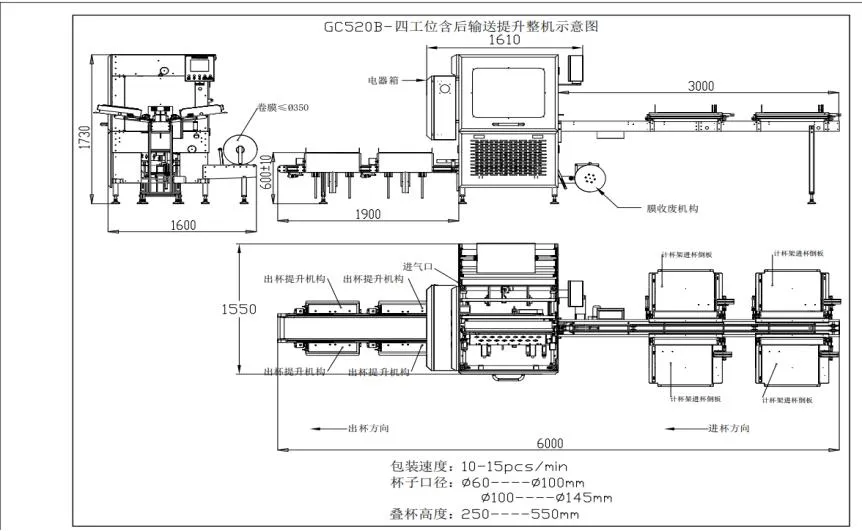

Technical Parameters (4 Stations)

Model	YB-520B
Speed	10-15 bag/min
Cup Bottom Size	Ø65-Ø145 mm
Package Height	250-550mm
Material	OPP PE PP POF
Film Thickness	15-30um
Total Power	2.8KW (220V 50HZ)
Weight	800kg
Machine Size	600016001730mm

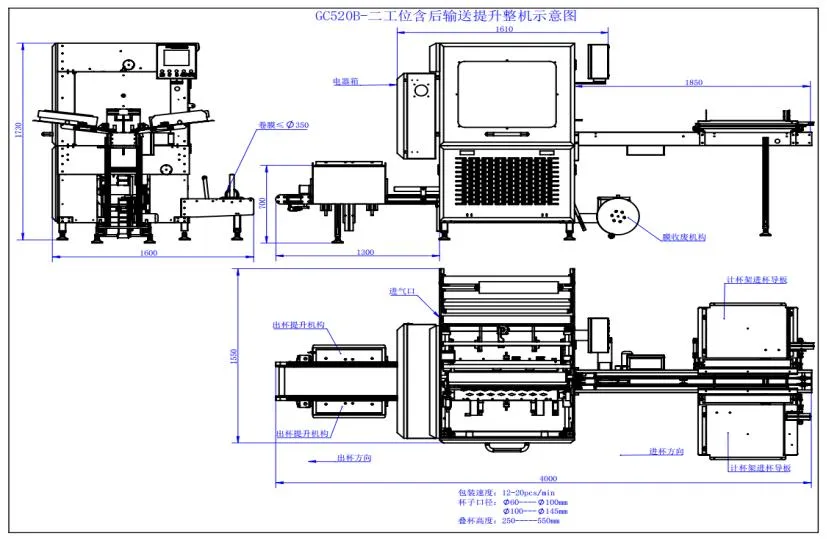

Technical Parameters (2 Stations)

Model	YB-520B
Speed	10-20 bag/min
Weight	650kg
Machine Size	400016001730mm

Key Components Configuration

Parts	Brand	Origin
PLC	Schneider	France
Touch Screen	Schneider	France
Servo Motor	Delta/Schneider	France/China
Photoelectric Switch	Schneider	France
Pneumatic Components	Runjia	China

* Note: Configurations are for reference only, please refer to the actual equipment.

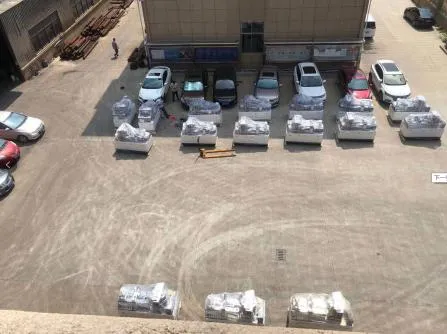

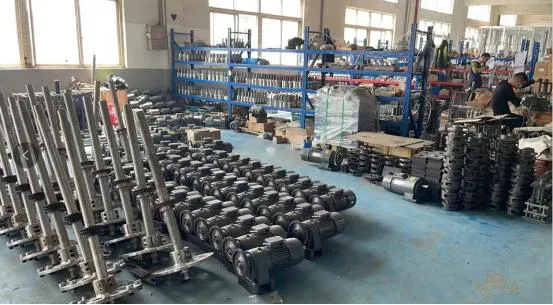

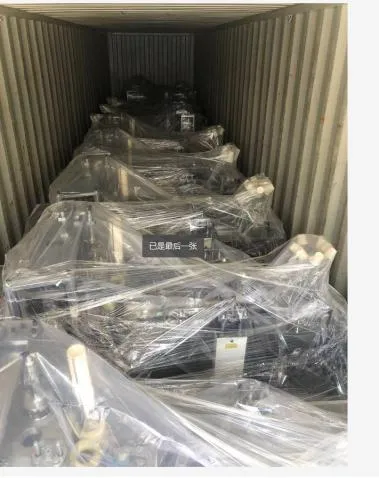

Factory Display

Frequently Asked Questions

What materials can the YB-520 packaging machine handle?

The machine is versatile and can package various materials including drinks, oil, tea, fish, meat, snacks, rice, flour, and seasonings, particularly in powder form.

Which packaging films are compatible with this equipment?

It effectively supports a wide range of films including PE, OPP, PP, and POF. The specialized cutter and heating system ensure clean seals across these materials.

How does the "Anti-Empty Bag" function help in production?

The machine automatically starts when it detects material and stops when no material is present. This prevents the waste of packaging film and ensures efficient operation.

Can one machine produce different sizes of cup packages?

Yes, the YB-520 is designed for flexibility. It can produce different specifications and sizes online, making it suitable for various paper cup machine outputs.

What brands of electrical components are used?

We use high-quality international brands such as Schneider (France) for the PLC, touch screen, and sensors, and Delta for servo motors to ensure stable performance.

What is the production speed of the YB-520 series?

The speed varies by model and product characteristics: the 4-station model typically operates at 10-15 bags/min, while the 2-station model can reach up to 20 bags/min.
