PawEase Feeder
1 / 5
| Model NO. | WT150L |
| Material | Stainless Steel |
| Motor Power(kw) | 1~10 |
| Usage | Building Materials, Chemical, Metallurgy |
| Delivery Date | 10-25 days |
| Type | Storage Feeder |
| Appearance | Closed-Type |
| Warranty | 1 Year |
| Movement Mode | Vibration |
| Transport Package | Wooden Box |

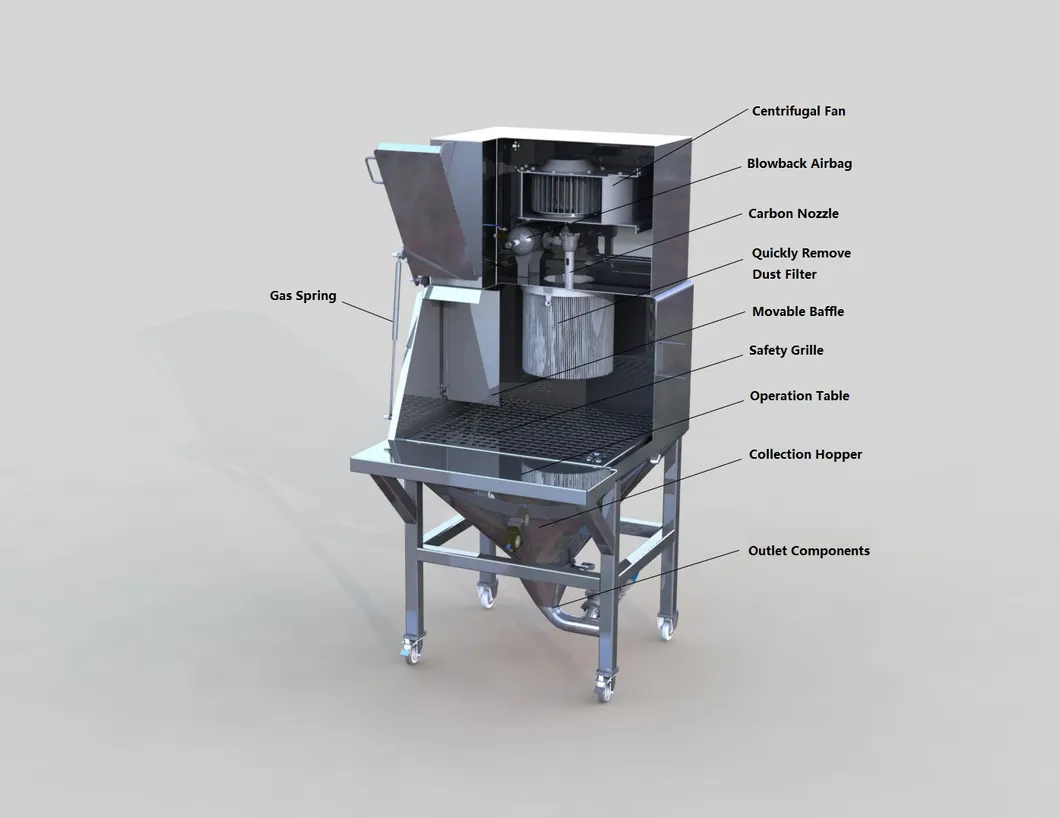

1. When small bag powder material needs to be unpacked and poured into the next process, it is manually unpacked before being fed into the system. Dust generated during feeding is captured by the dust collection fan.
2. The material is intercepted by a vibrator (safety screen) to catch large blocks and foreign objects, ensuring that only particles meeting the requirements are discharged.
| Model | WT100/150 |
|---|---|
| Volume(L) | 100/150 |
| Power(KW) | 0.75/1.1 |
| Compressed air consumption (L/min)/MPa | 50/0.6 |
| Discharge interface | Quick installation 8inch |
| Dust removal fan interface | φ100/φ150 |
| Weight(Kg) | 150/200 |
| Overall dimensions(mm) | 900×800×1850 / 1000×900×2000 |
High filtration accuracy, fast discharge speed, non-clogging, simple structure, low energy consumption, low noise, long service life, good sealing, no material leakage, no dust overflow, no material storage inside the machine, no dead corners, and low failure rate.
| Fault phenomenon | Fault cause | Troubleshooting |
|---|---|---|
| No backflushing | Compressed air valve closed / Pulse valve malfunction / Filter clogged | Open valve / Check pulse valve / Replace filter |
| No electric vibration | Damaged motor / Not powered on | Replace motor / Connect power |
| Slow/No fan extraction | Fan damage / Filter clogged | Replace fan / Replace filter |
