Product Description

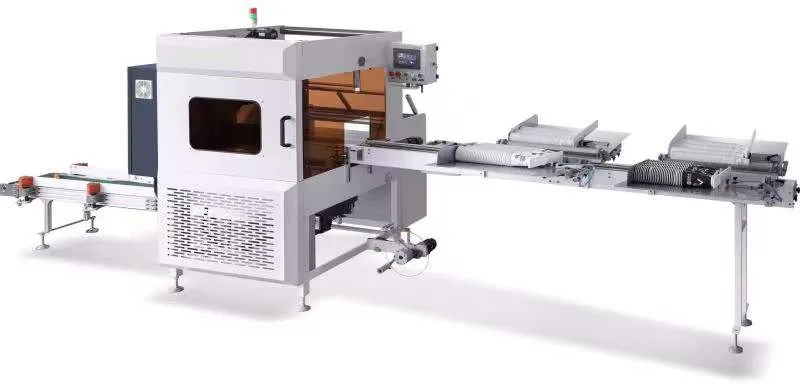

YB-520 Horizontal Packaging Machine - Four Stations

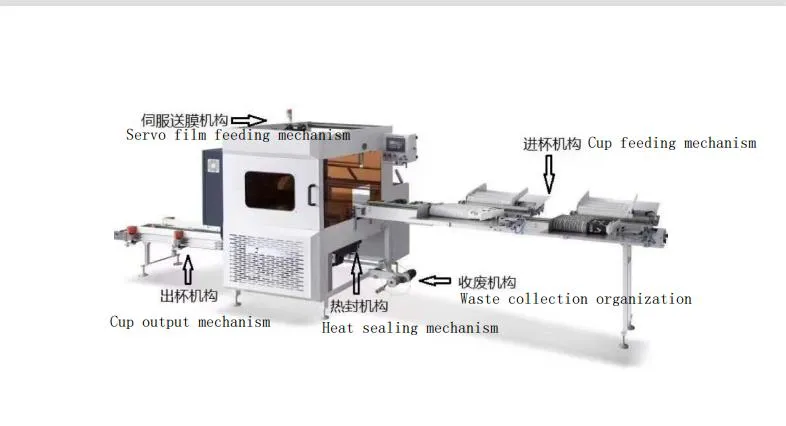

Equipment Introduction

Cup feeding: After the paper cup is counted by the cup counting frame, it falls and slides onto the cup table. Once detected by the optical eye, the turning mechanism pours and sends it to the heat sealing splint.
Film feeding: Upon cup detection, the PLC program sends a pulse to the servo driver to output the specific film length required for the cup's caliber.
Heat sealing: The hot air splint opens, the cup moves down, the splint closes, and the heat sealing knife seals the film to complete the bag.
Cup output: Sealed cups drop onto the rear conveyor. Based on the PLC memory function, different specifications are sorted into corresponding outlets.

Key Mechanism Characteristics

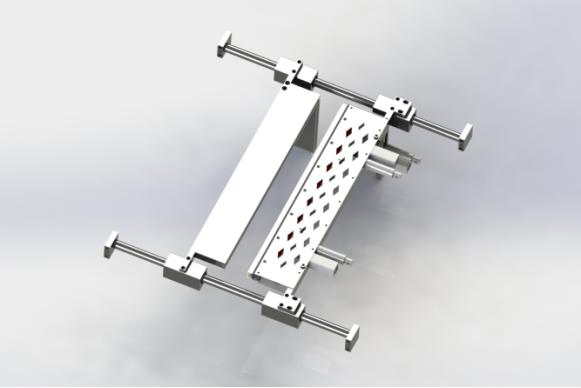

Cutting System: Uses mechanical and pneumatic execution for firm, beautiful incisions. Reduced noise and vibration with durable, specially quenched cutters compatible with PE, OPP, PP, and POF films.

Servo Feeding: The servo motor mechanism ensures accurate film feeding. Supports group settings for multiple cup sizes, significantly saving film material.

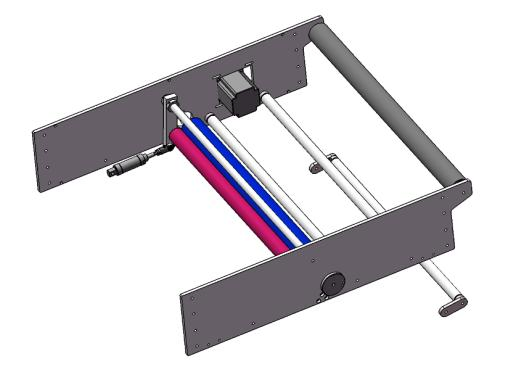

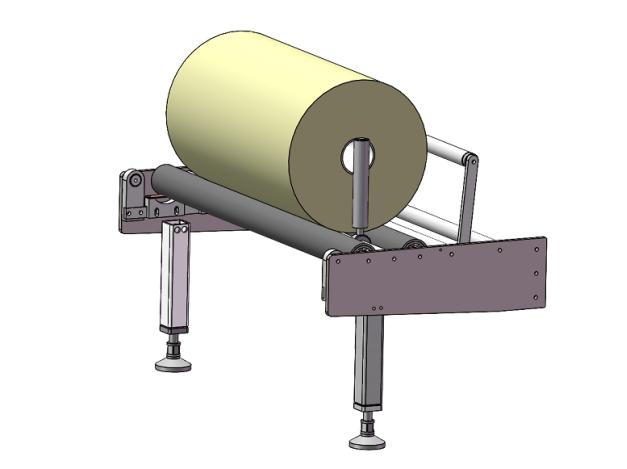

Film Support: Floor-style support makes threading and loading faster. It handles larger rolls and heavier film materials with ease.

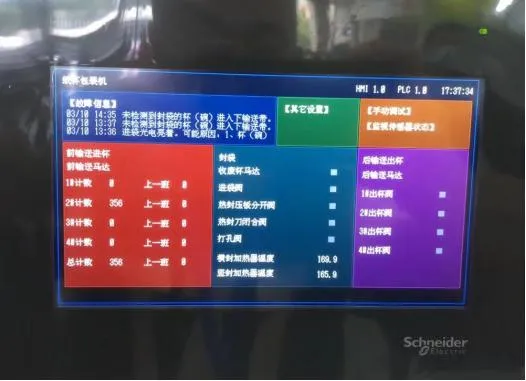

Control Interface: Integrated with international brand PLC programmable controllers and a touch human-machine interface for simplified operation.

Ten Advantages of Equipment

4 independent motor controls (Servo motor used for feeding, discharging, and waste collection).
Motion controller for rapid response to various commands.
Precise positioning of products for consistent quality.
Independent temperature control module for stable and uniform heating.
304 stainless steel used for all parts in contact with the product.
All electrical components sourced from international brands.
Anti-empty bag function: Starts with material and stops without, preventing film waste.
One machine handles different specifications for various paper cup machines online.
Automatic shutdown alarm for insufficient air pressure to reduce material waste.
Stable and reliable quality proven through years of cooperation with first-line manufacturers.

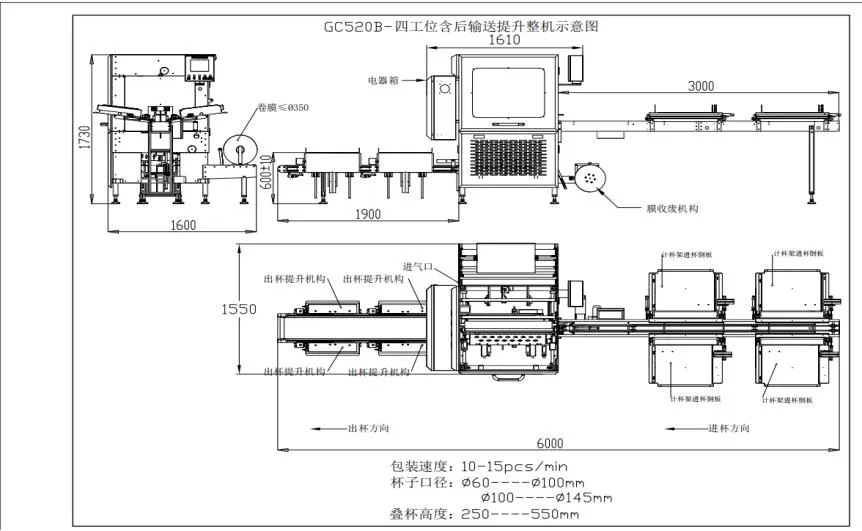

Technical Parameters - Four Stations

Model	YB-520B
Speed	10-15 bag/min (Product dependent)
Cup Bottom Size	Ø65-Ø100, Ø100-Ø145
Package Height	250 - 550mm
Material of Packing Film	OPP PE PP POF
Thickness of Packing Film	15 - 30um
Total Power	2.8KW (220V 50HZ)
Weight	800kg
Machinery Size	600016001730mm

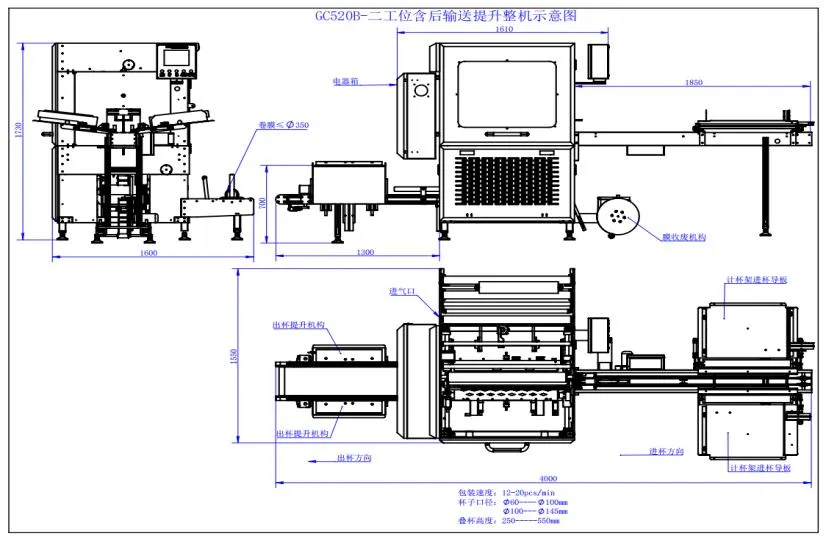

Technical Parameters - Two Stations

Model	YB-520B
Speed	10-20 bag/min
Weight	650kg
Machinery Size	400016001730mm

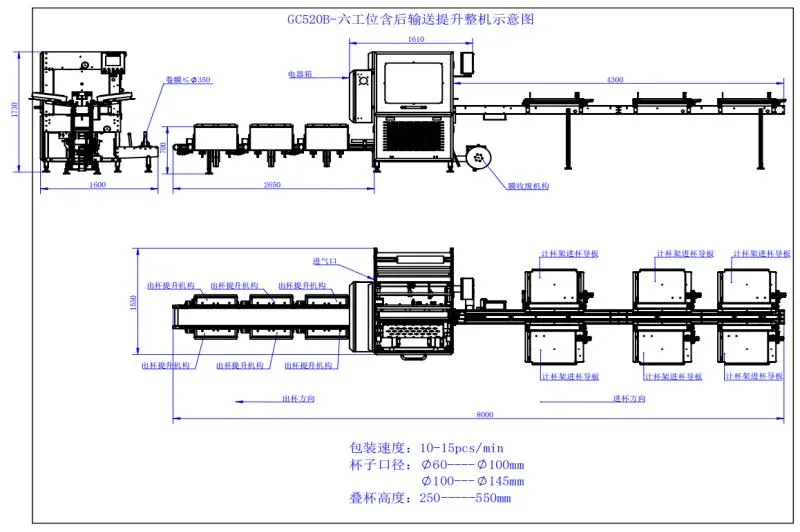

Technical Parameters - Six Stations

Model	YB-520B
Speed	10-15 bag/min
Weight	950kg
Machinery Size	800016001730mm

Main Electrical Components

Parts	Brand	Place of Origin
PLC	Schneider	France
Touch Screen	Schneider	France
Servo Motor	Delta/Schneider	France/China
Photoelectric Switch	Schneider	France
Pneumatic Components	Runjia	China

Note: Above configuration is for reference only. Please refer to actual equipment.

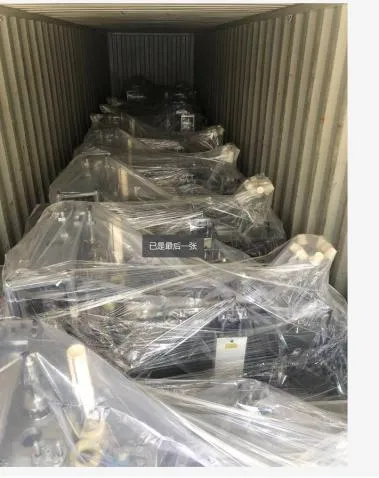

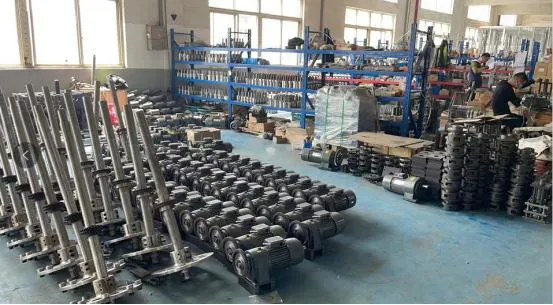

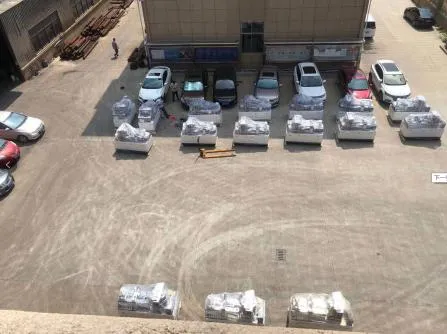

Factory Display
