Product Description

Basic Information
Model NO.RO-3000
TypeVolumetric Filling Machine
Automatic GradeFully Automatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Dosing DeviceCapacity Cup
Filling PrincipleAtmospheric Pressure
StructureRotary
PackagingBottle (Plastic Pet, PE)
Bottles Size200ml-2000ml
Output1000 to 24000 Bottles/Hour
Complete Reverse Osmosis Water Treatment System

This RO water treatment plant can treat tap water, well water, brackish water, and mineral water. It is ideal for drinking water, bottled water, and industrial applications. Utilizing advanced reverse osmosis technology, the system features world-class American brand Hydranautics membranes for superior purification.

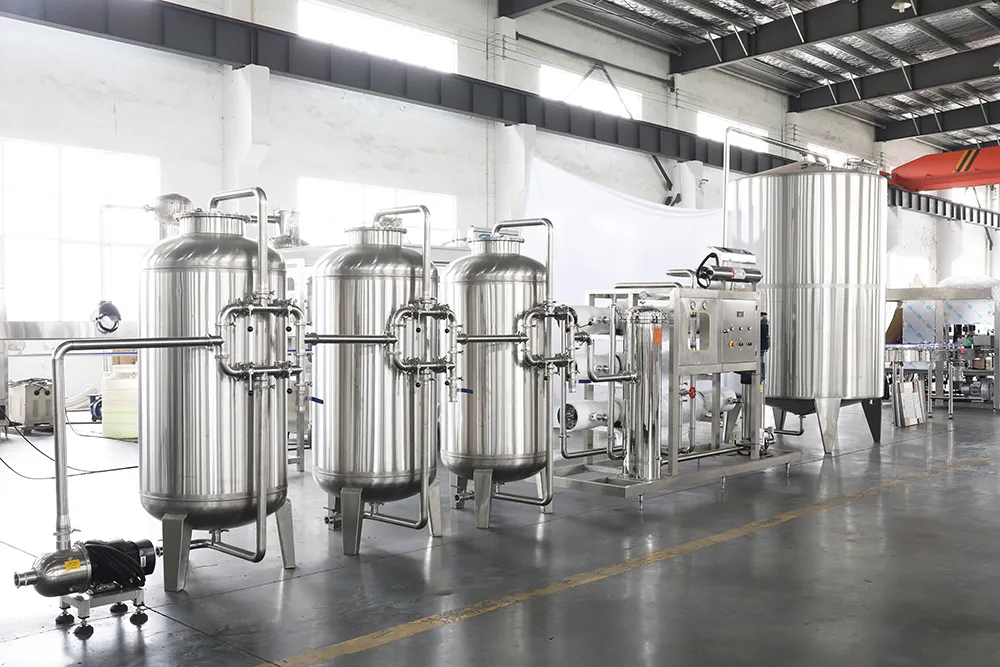

RO Water Treatment Plant
Processing Flow Chart
Raw Water tank → Silica sand filter → Active carbon filter → Sodium ion exchanger → Precision filter → Reverse Osmosis → Mixing Tower (UV & Ozone Sterilization) → Finished Water tank
Core Components Functional Breakdown
Silica Sand Filter: Removes suspended solids and gluten particles to reduce turbidity.
Active Carbon Filter: Eliminates pigment, odors, and biological organisms.
Sodium Ion Exchanger: Removes calcium and magnesium ions to soften the water.
Precision Filter: Ensures water entering the RO membrane is less than 0.1um in granularity.
Reverse Osmosis: Removes over 97% of soluble salts and 99% of colloids, microorganisms, and organic matter.
Dual Sterilization: Uses UV and Ozone to eliminate any remaining bacteria post-filtration.
System Advantages
Adopts high-efficiency imported RO membranes for maximum salt rejection.
Chemical-free process ensures stable pure water quality without secondary pollution.
304 Stainless steel construction for durability and hygiene compliance.
Integrated auto-pressure protection and online monitoring systems.
Automatic and manual membrane washing capabilities with chemical solution options.
Technical Parameters
Model RO-1000 RO-2000 RO-3000 RO-5000 RO-10000
Capacity (t/h) 1 2 3 5 10
Power (kw) 1.5 2.2 3 5.5 11
Desalt Rate 99.9%
Recovery Rate 50% - 60%
Technical Specifications

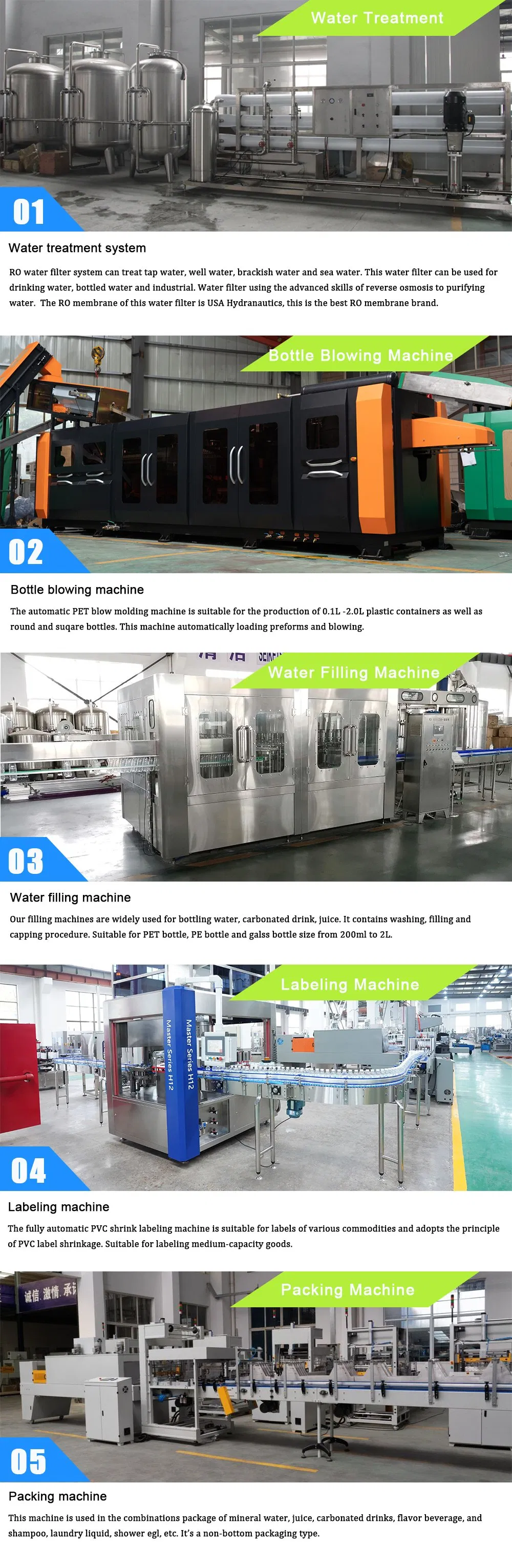

Main Products & Production

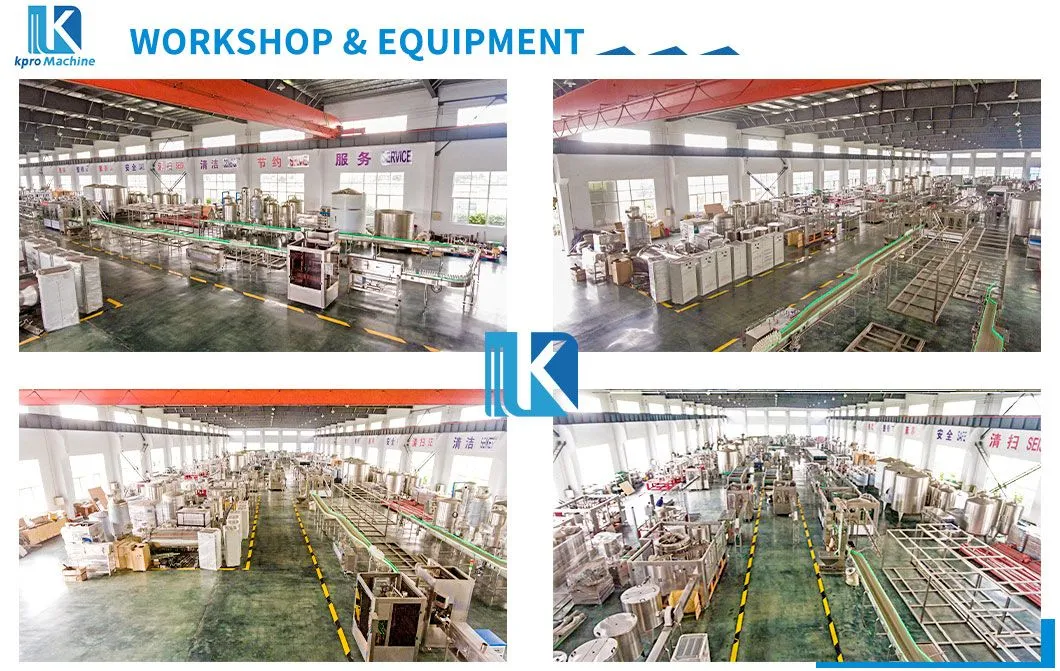

Product Line 1 Product Line 2 Production Facility
Certifications & Exhibitions
Certifications Exhibition Presence
Partners & Logistics
Customers Global Partners Packaging and Shipping
Frequently Asked Questions
1. What types of water can this RO system treat?
The RO water treatment plant is designed to treat tap water, well water, brackish water, and mineral water for drinking or industrial use.
2. What brand of RO membrane is used in the equipment?
We use high-performance RO membranes from the American brand Hydranautics, known for being the best in the industry.
3. Does the machine include sterilization features?
Yes, the system includes both UV sterilizers and Ozone sterilizers to ensure all potential bacteria are eliminated from the purified water.
4. What is the salt rejection rate of the system?
The system achieves a desalt rate of approximately 99.9%, effectively removing inorganic salts and heavy metal ions.
5. What is the production capacity range?
Our models range from the RO-1000 (1 ton per hour) to the RO-10000 (10 tons per hour) to suit different production needs.
6. What is the warranty and technical support provided?
We provide high-quality machinery with a 1-year guarantee and lifelong technical support, including engineer availability for overseas service.
