Product Description

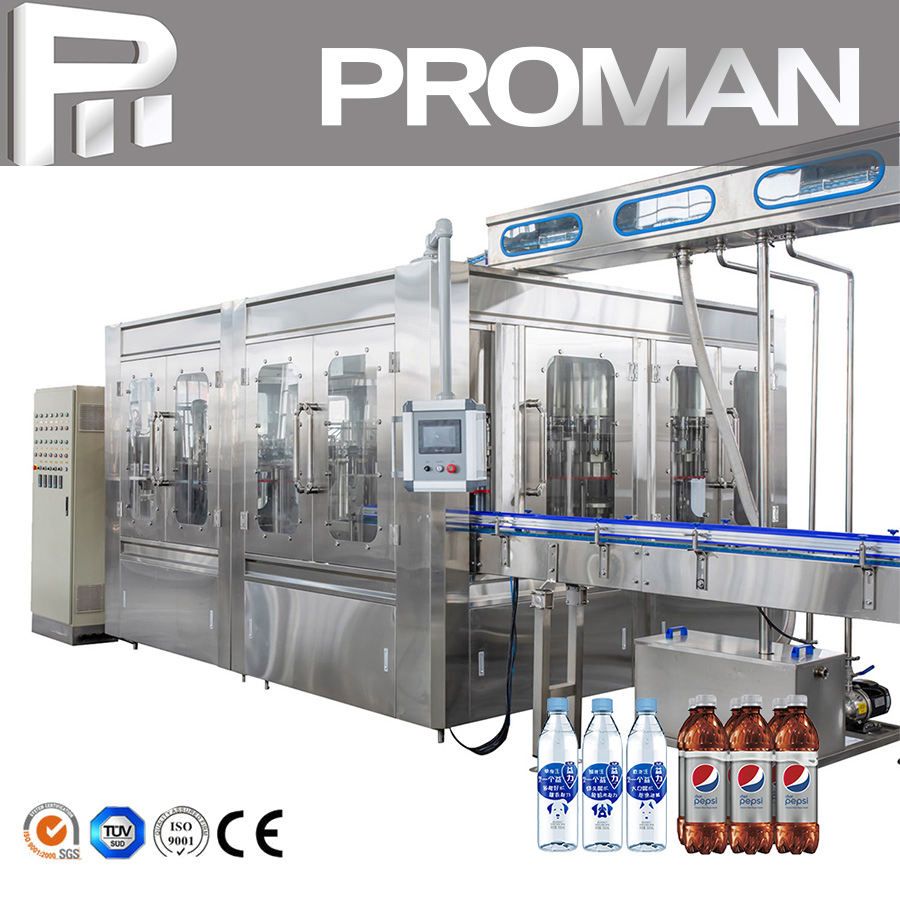

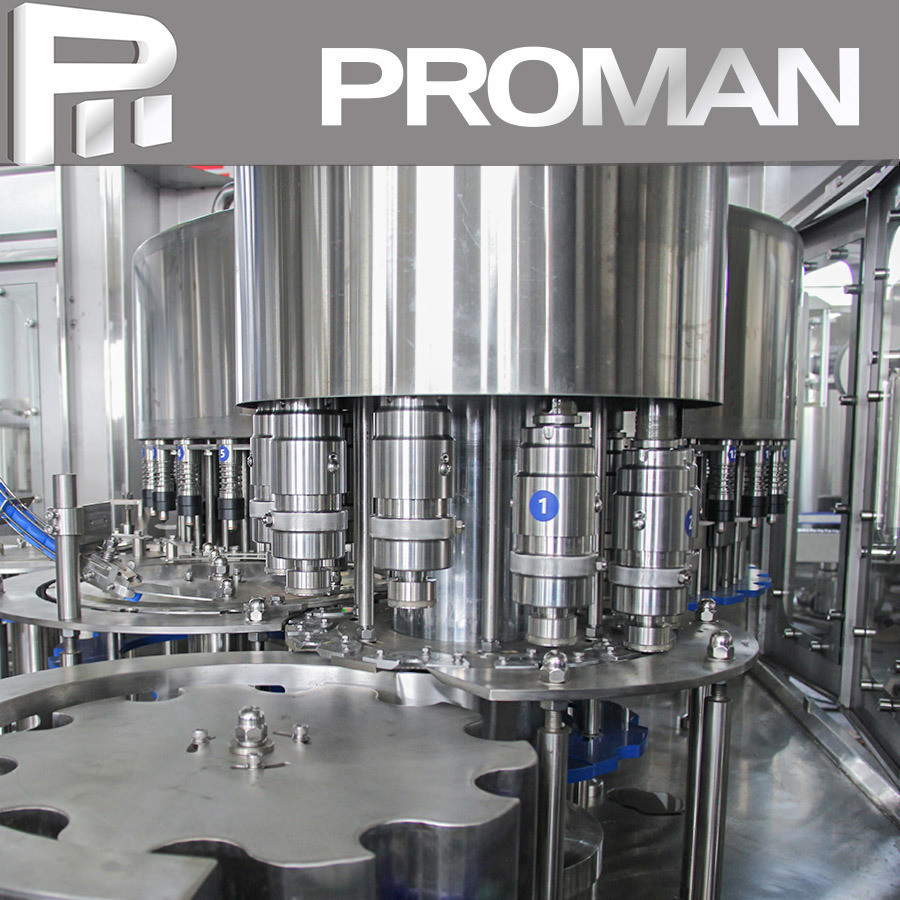

12 24 32 Filling Heads Plastic Pet Bottle Liquid Filler Purified Mineral Water Washing Filling Sealing System
General Description

Different models can satisfy various requirement of output from 2000B/H to 24000B/H. The machine adopts advanced Mitsubishi programmable controller (PLC) to control the machine automatically, interworking with inverter running more stable and reliable. The photoelectric sensor detects all part running state with a high degree of automation and easy operation.

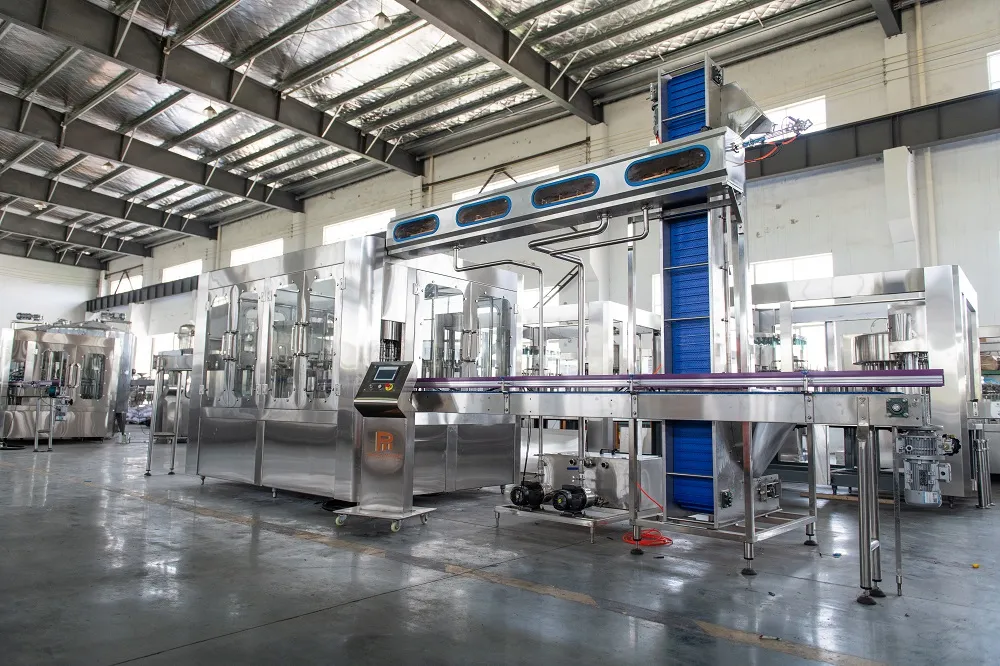

Water Filling Machine 1

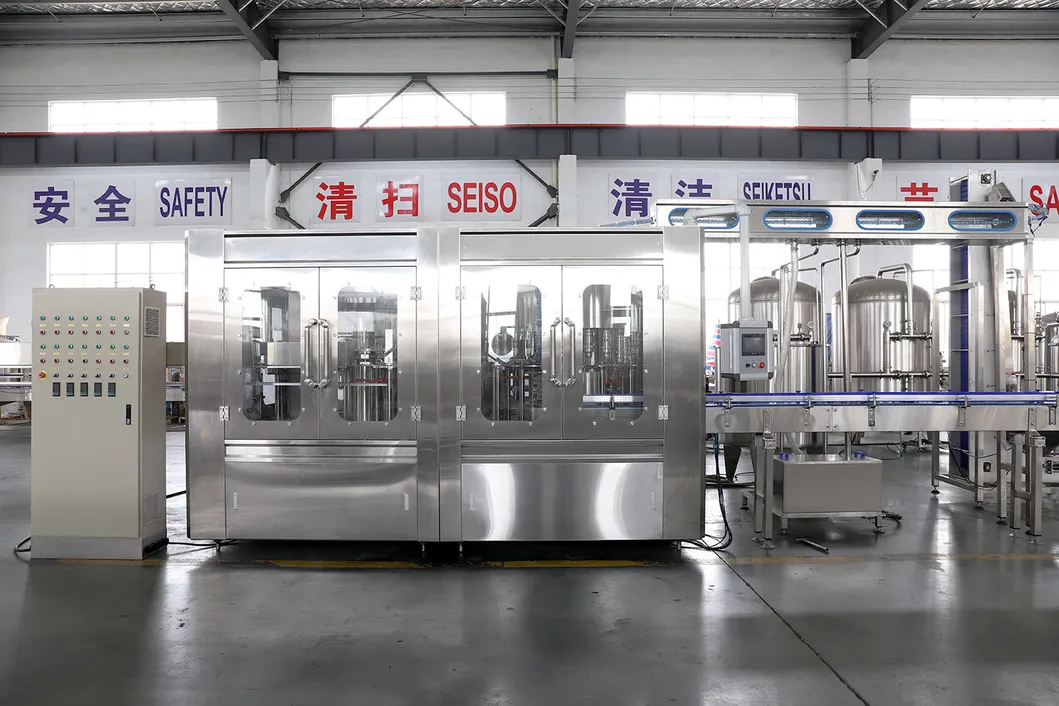

Water Filling Machine 2
Technical Parameter
Model CGF14-12-4 CGF16-16-5 CGF18-18-6 CGF24-24-8 CGF32-32-10 CGF40-40-12
Capacity (500ML) 4000BPH 6000BPH 8000BPH 12000BPH 15000BPH 18000BPH
Washing Heads 14 16 18 24 32 40
Filling Heads 12 16 18 24 32 40
Capping Heads 4 5 6 8 10 12
Suitable Bottle PET Bottle, Plastic Bottle
Diameter of Bottle 55-110 MM
Height of Bottle 150-310 MM
Suitable Cap Plastic Screw Cap
Weight 1500kg 2000kg 4000kg 4500kg 6000kg 7800kg
Main Motor Power 1.2kw 1.5kw 3kw 3kw 3kw 5.5kw

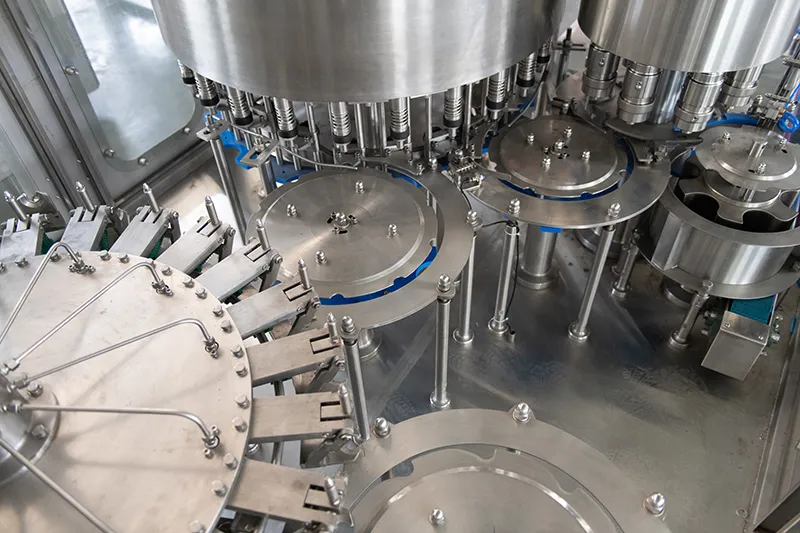

Washing Station

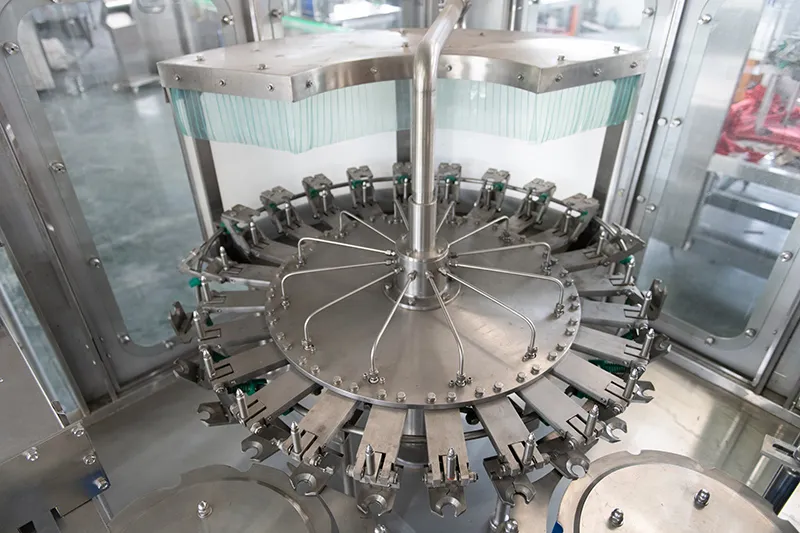

Filling Station
Key Components Detail

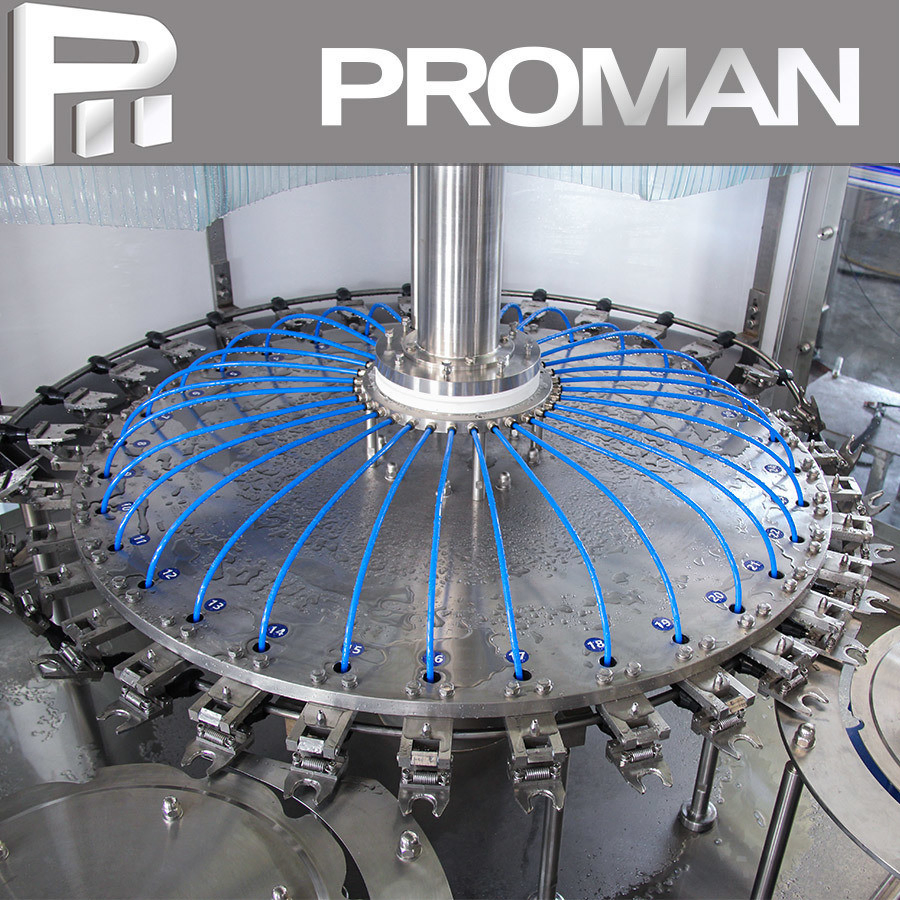

🔹 Washing Head:
  • Into bottle way is air conveyor direct connection with bottle dial.
  • All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
  • 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
  • 304/316 stainless steel washing pump make the machine more durable.
Washing Head Detail

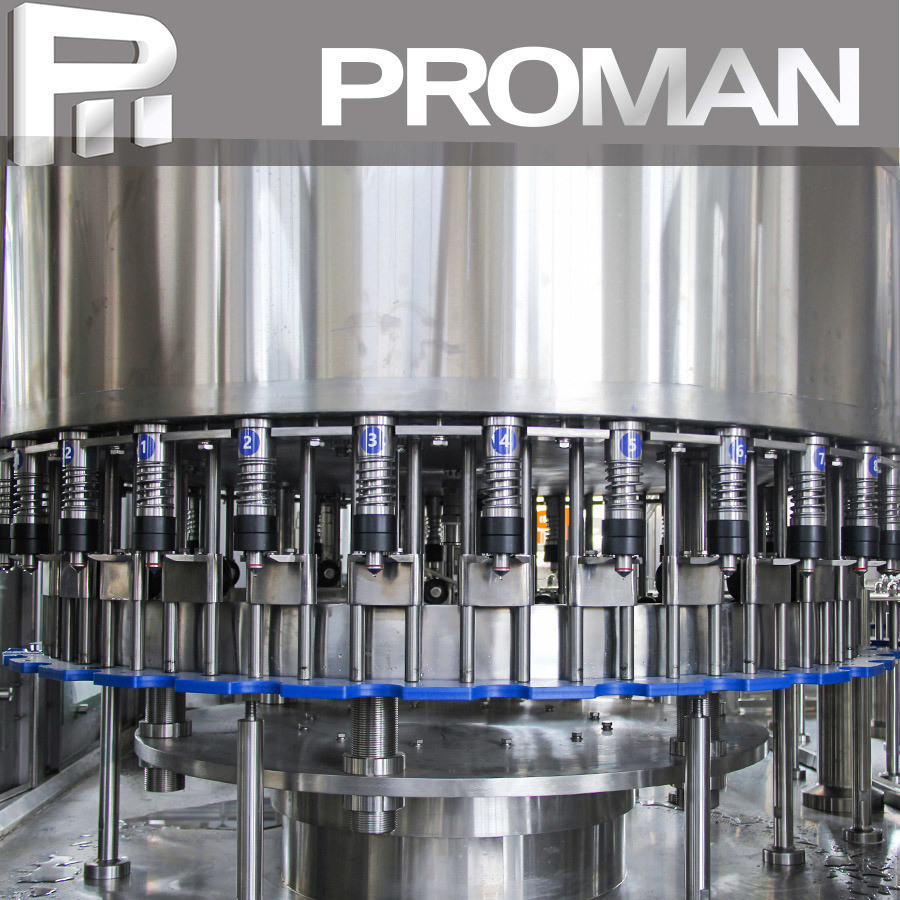

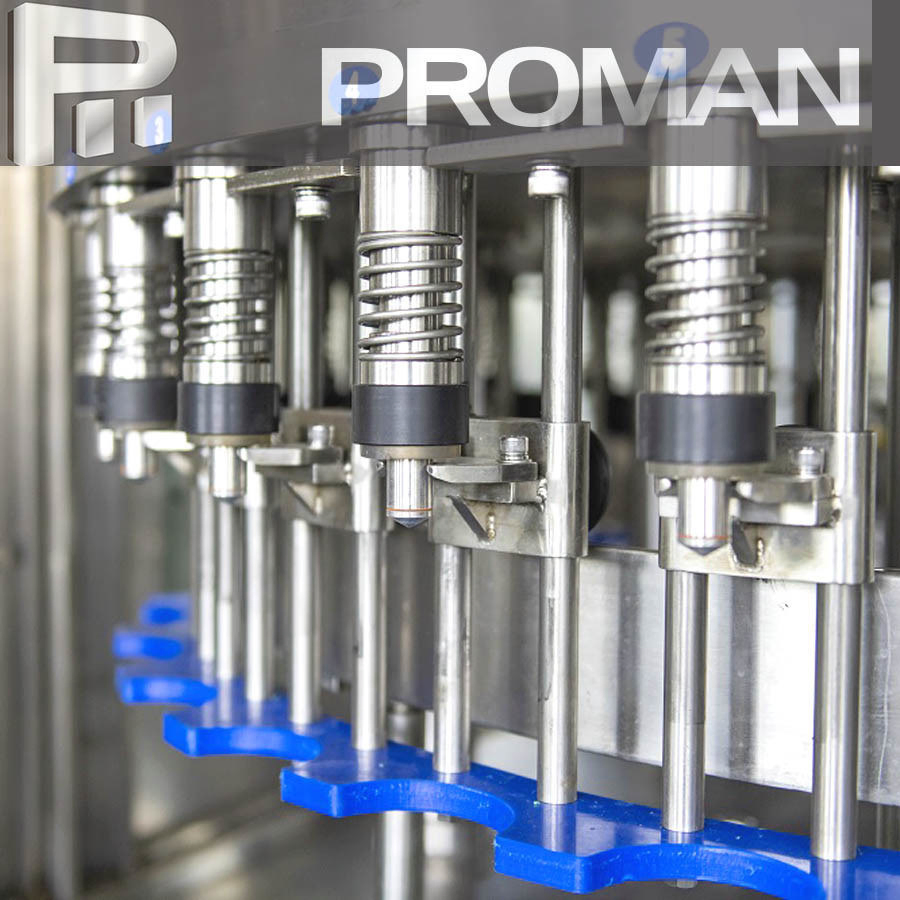

🔹 Filling Head:
  • 304/316 Stainless steel high precision filling nozzle.
  • Filling volume adjustable in fine rank, same liquid level after filling.
  • All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean.
  • 304/316 stainless steel filling pump.
  • Efficient spray nozzle rinse thoroughly and save water for flushing.
Filling Head Detail
🔹 Capping Head:
  • Place and capping system, electromagnetic capping heads, with burden discharge function.
  • All 304/316 stainless steel construction.
  • No bottle no capping; Automatic stop when lack of bottle.
  • Capping effect is stable and reliable, Defective rate ≤0.2%.
System Configuration & Advantages

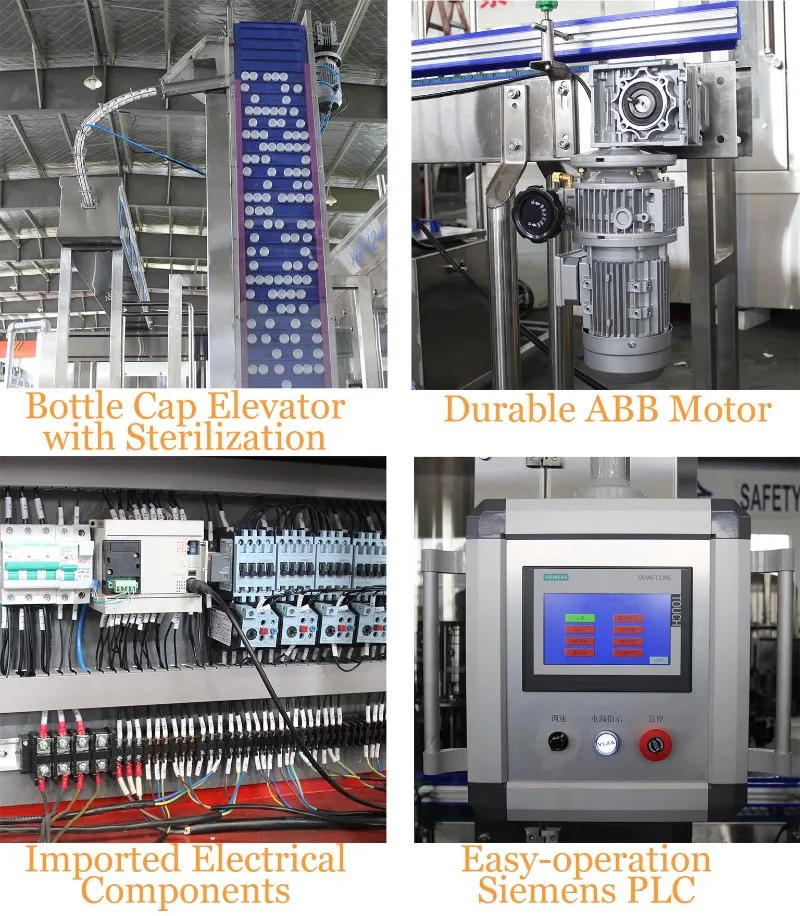

System Configuration

1. Integrated 3-in-1 System: Washing, Filling, and Capping finished by one machine - saves space and ensures hygiene.

2. Neck Clamping Technology: Advanced bottle neck clamping and suspending technology makes it convenient to change different bottle sizes.

3. Smart Control: Advanced programmable PLC and touch screen for easy operation.

4. International Standards: Electronic and pneumatic elements from famous international enterprises.

5. High-Quality Materials: All spare parts that touch water are made from high-quality stainless steel.

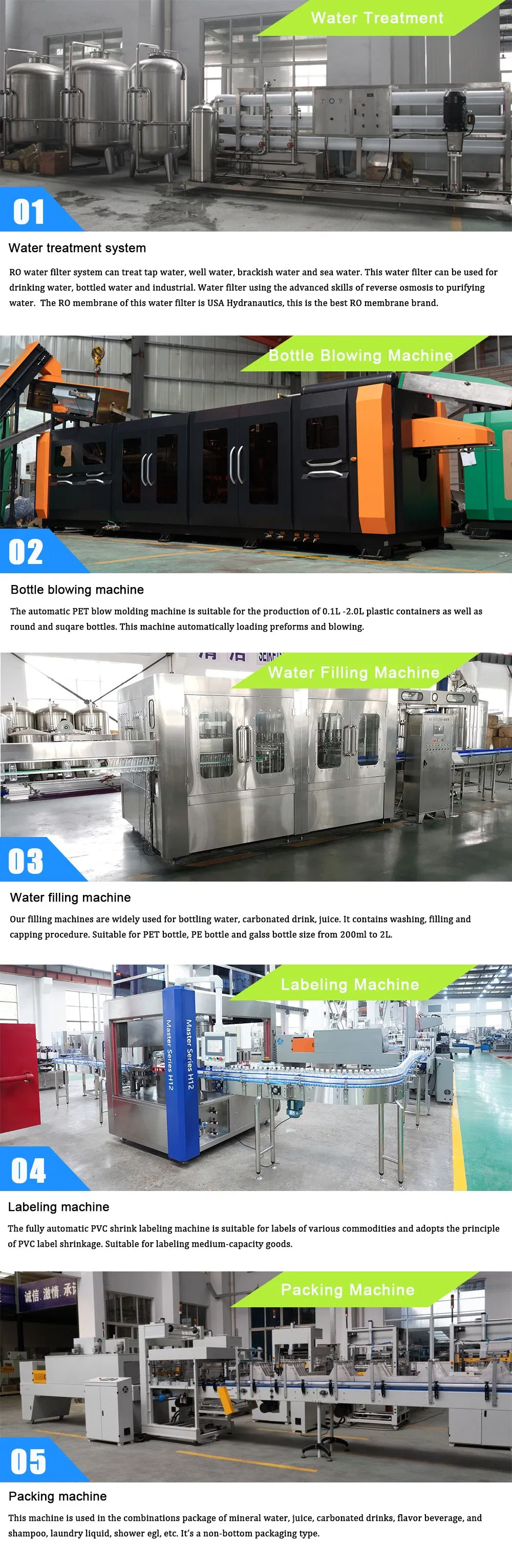

Quality Parts
Machine Assembly
Team Support
Certifications & Packing
Our Team
Export Packing
International Certifications
Frequently Asked Questions
How can I submit an enquiry for this machine?
You can reach out via email, phone, or instant messaging platforms like WhatsApp or Skype with your specific production requirements.
Is technical support available for installation?
Yes, we provide a professional team of engineers with extensive experience in installation, debugging, and training for machinery overseas.
What is the warranty period for the water filling line?
We offer high-quality machines with a 1-year guarantee and provide life-long technical support to ensure smooth operation.
What bottle sizes are compatible with this system?
The machine is designed for PET and plastic bottles with diameters between 55-110mm and heights ranging from 150-310mm.
What are the main advantages of the 3-in-1 design?
The integrated washing, filling, and capping system saves significant floor space, improves sanitary conditions, and allows for faster production.
How does the machine handle different bottle types?
The system utilizes advanced bottle neck clamping and suspending technology, making it very convenient to switch between different bottle specifications.
