Pet Bottle Fruit Juice Making System

Send Inquiry

Product Description

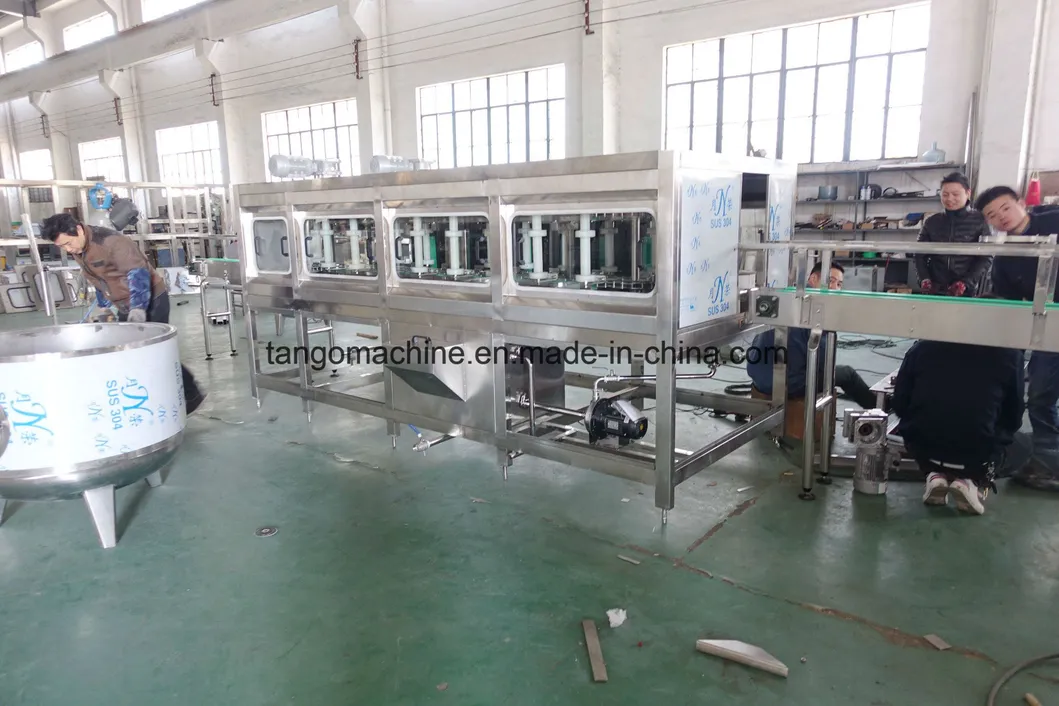

3 Gallon & 5 Gallon Barrel Drinking Water Linear Production Line (QGF)

5 Gallon Blow Molding Machine

The blow molding machine is specifically designed to produce 3 gallon and 5 gallon bottles. It is widely used to produce various shapes of plastic from PET with neck finishes ranging from 15mm to 200mm.

5 Gallon Filling Line Components

1. Automatic De-capper: Specially designed for 5 gallon barreled drinking water production lines to remove caps efficiently.

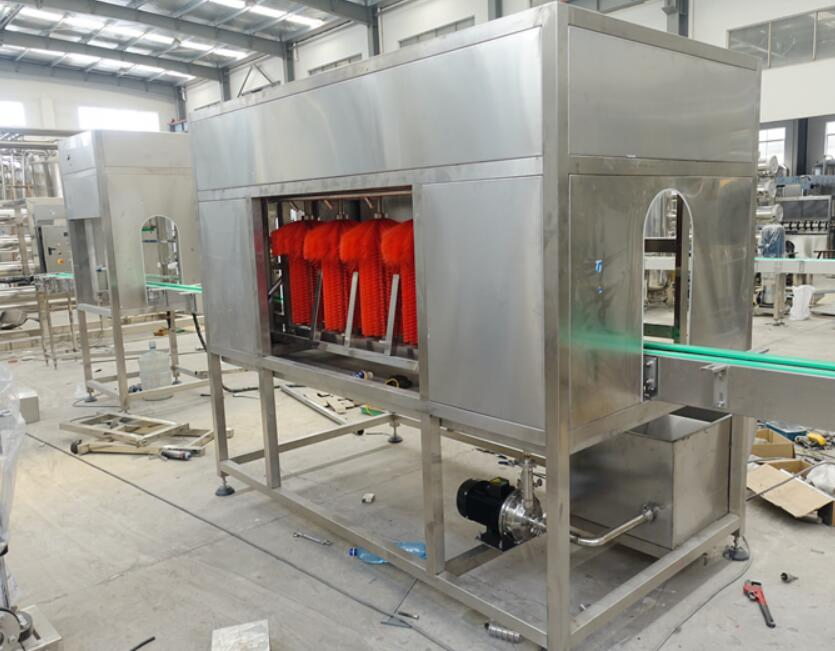

2. Automatic Barrel Brushing Machine: Cleans both inner and outer surfaces. It reduces settling caused by mineral water and algae substances during the production process.

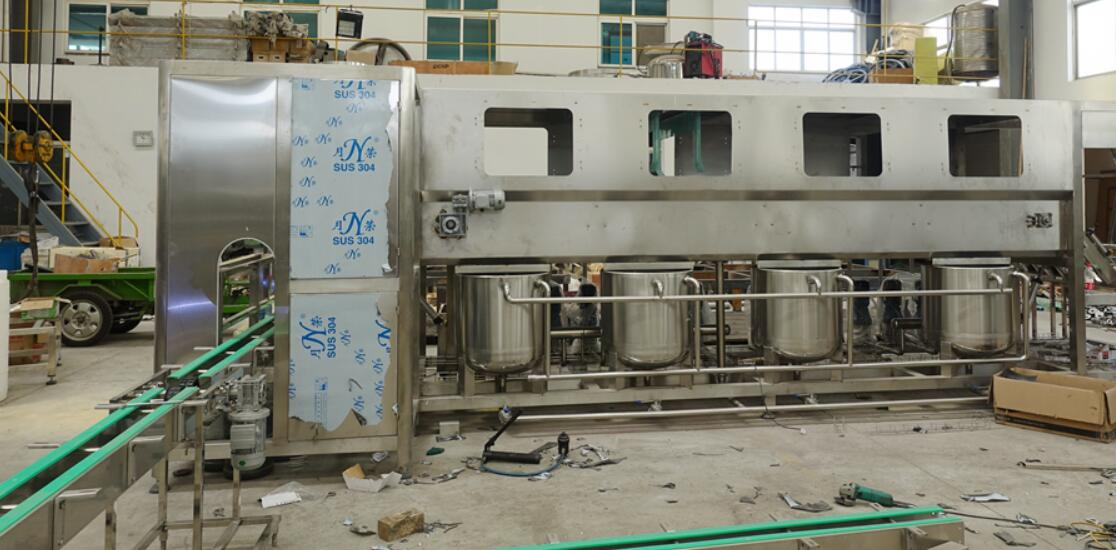

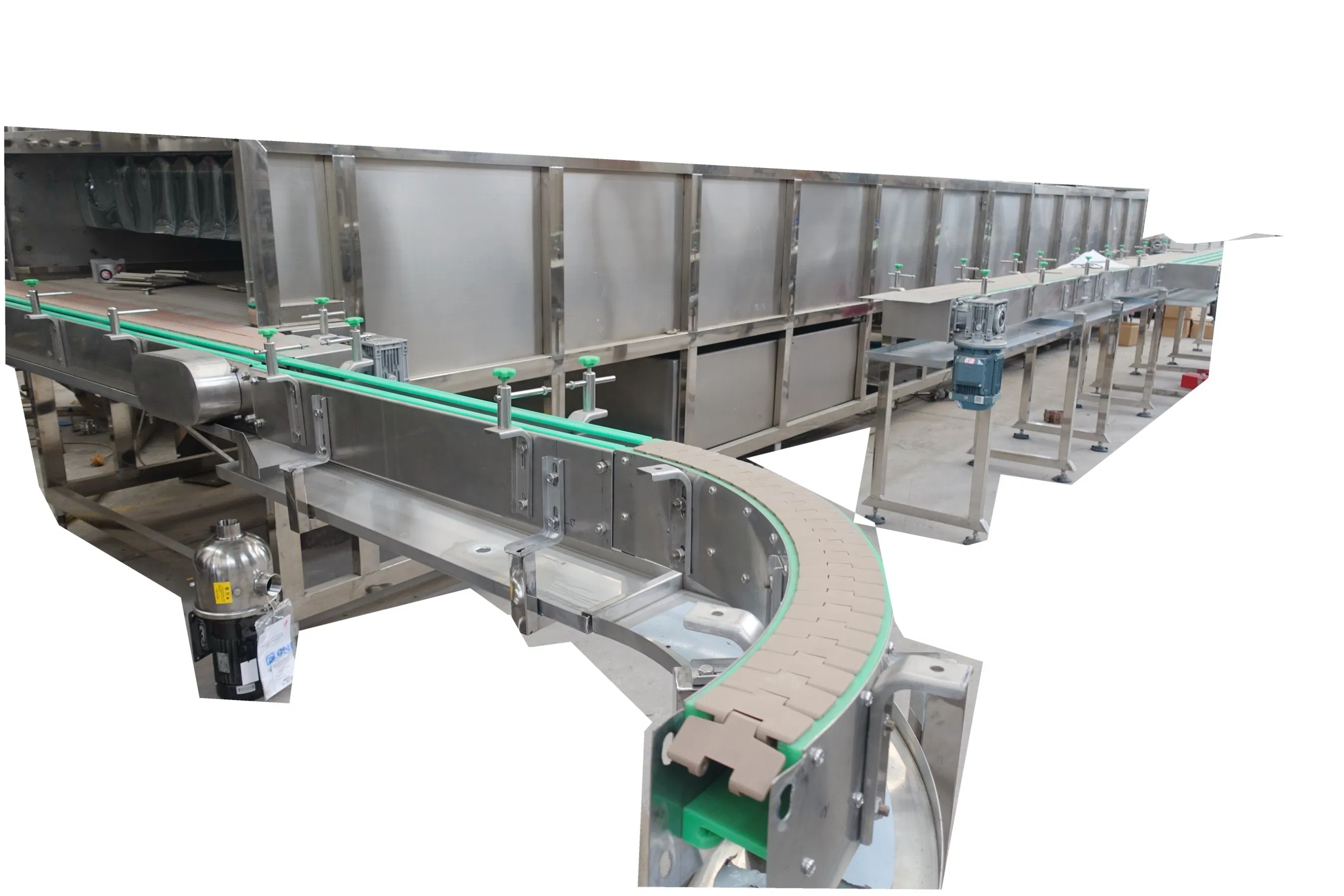

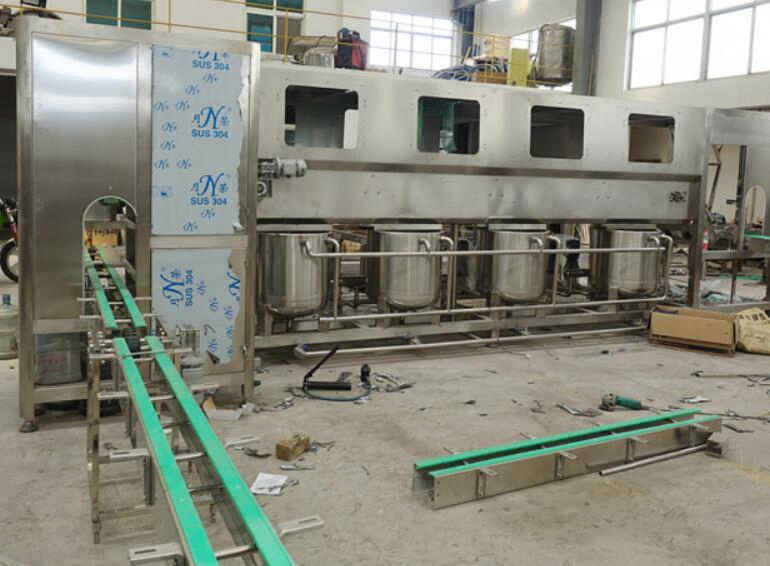

3. Automatic Barrel Loader: Reduces secondary pollution from manual operation by automatically conveying barrels into the mainframe for washing, increasing efficiency.

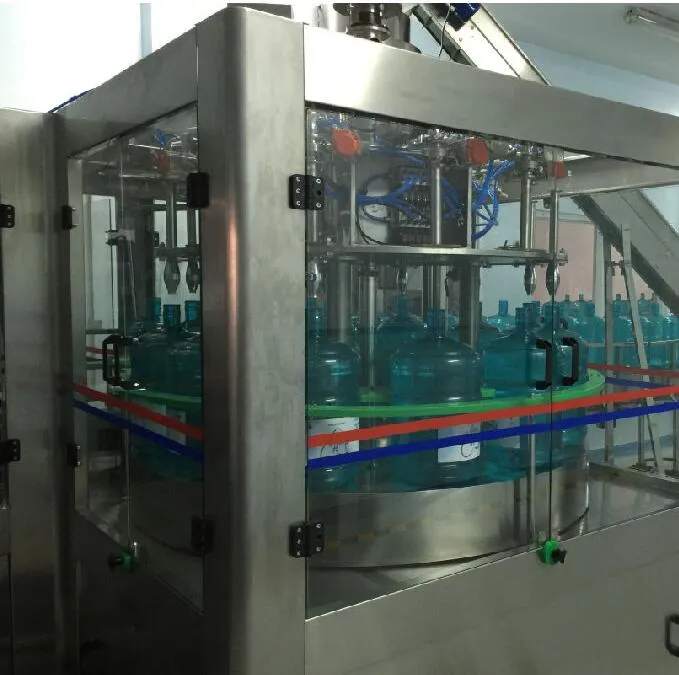

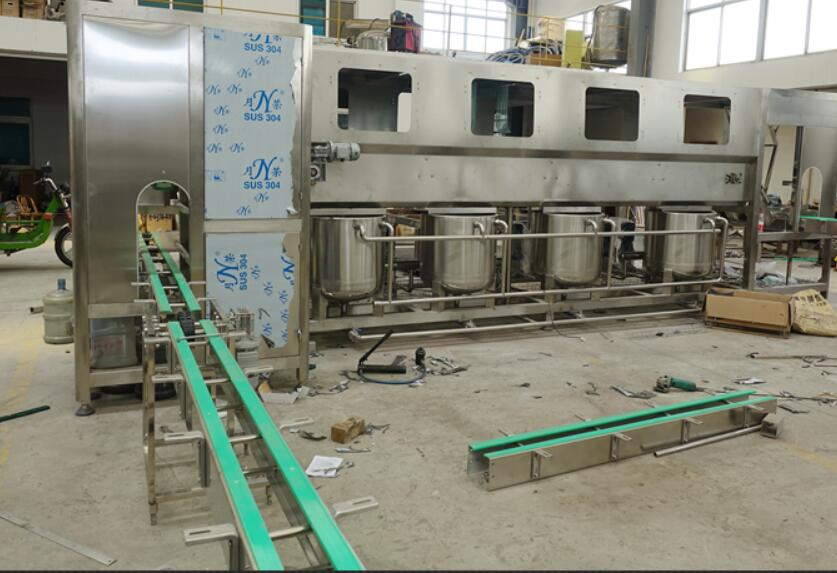

4. Barreled Water Filling Machine: Used for filling pure or mineral water into PET or PE barrels. Constructed from high-quality stainless steel for easy rinsing and corrosion resistance.

Main Technical Parameters (Model: QGF-240)

Filling heads: 2 heads
Filling volume: 5 gallon
Barrel Size: 276 × 490 mm
Capacity: 240 barrels per hour
Power supply: 380V, 50Hz (Max consumption 4 kw)
Water Usage: Filling 6t/h; Hot alkali washing 2t/h; Purified water washing 2t/h

12-Step Washing Procedure:

Inspection & Finishing

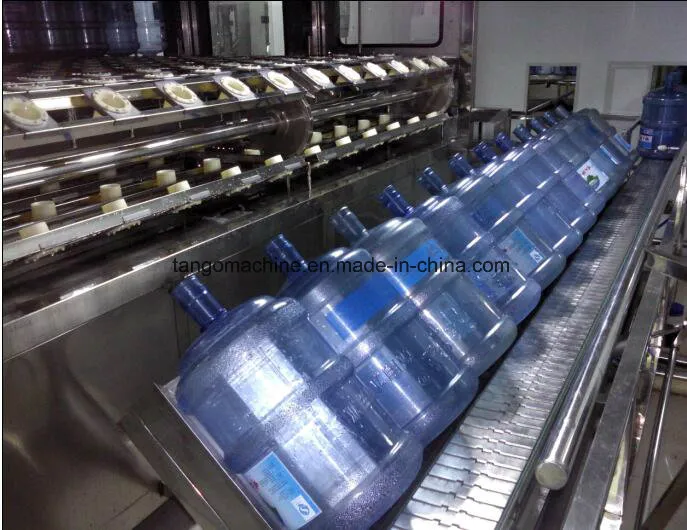

Light Check Box: Features a stainless steel protective garment with high-quality lighting. It allows for easy inspection of impurities, defects, and granules inside and outside the barrel, conforming to hygiene standards.

Cap Shrink Tunnel: Features adjustable temperature settings to adapt to different thermal shrinking films and production speeds. Uses high-temperature resistant materials for energy efficiency.

Model Specifications Comparison

Machine Model	QGF-120	QGF-240	QGF-300	QGF-400	QGF-600
Capacity (b/h)	120	240	360	480	600
Filling Head	1	2	3	4	5
Overall Size (mm)	370016001800	400015001800	400015801800	400015801800	500018501900
Main Power (kw)	3.8	6.8	8.8	11	11
Heating (kw)	-	9	10	12	12
Air Consumption	0.2	0.2	0.3	0.4	0.5

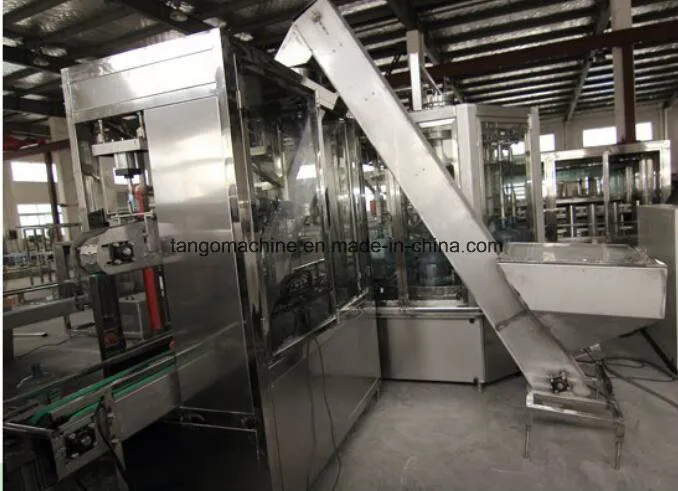

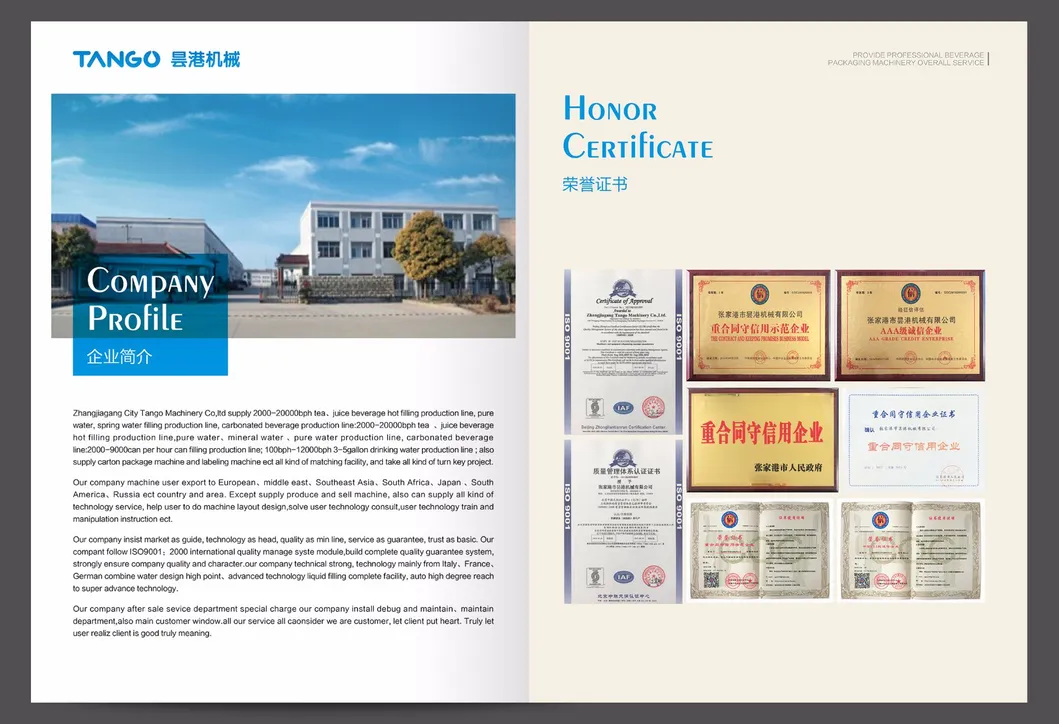

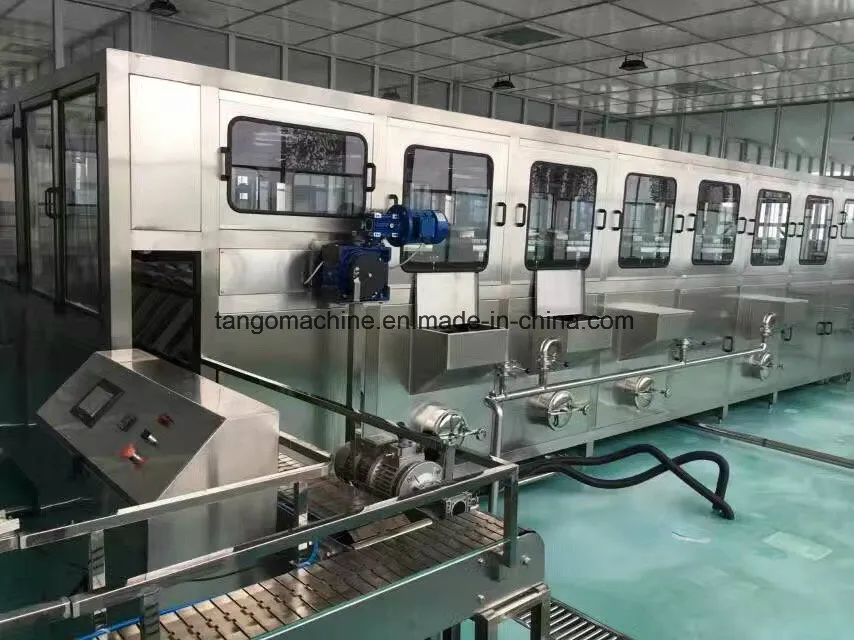

Workshop & Quality Display

Frequently Asked Questions

What types of barrels can this production line handle?

The QGF series is designed specifically for 3 gallon and 5 gallon barrels, commonly used for drinking water.

What is the production capacity of the QGF-240 model?

The QGF-240 model has a capacity of 240 barrels per hour with 2 filling heads.

What materials are used in the construction of the filling machine?

The machine is made of high-grade stainless steel, ensuring corrosion resistance and making it easy to rinse and maintain hygiene.

How many washing steps are included in the cleaning process?

The washing procedure includes 12 comprehensive steps, including alkali washing, disinfecting water washing, and purified water rinsing.

Which electrical components are used in the machine?

The system utilizes high-quality international brands such as Siemens and Omron for electrical parts, and Airtac for pneumatic components.

Is the production line automated?

Yes, it is a fully automatic barreled water production equipment that integrates mechanical, electronic, and pneumatic components for maximum efficiency.
