Product Description

Overview Product Description Detailed Photos FAQ

Basic Info

Model NO.

XMB-3220

Degrees of Freedom

4-axis

Drive Mode

Electric

Name

Air Bionic Quadruped Robot Dog

Style

Robot Dog Industrial, Robot Dog Ai

Use

Robot Dog for Home

Name Type

Robot Dog in China

Type Name

Interactive Robot Dog

Transport Package

According to Customer Suggestion

Specification

100% PVC

Trademark

None

HS Code

3923100000

Production Capacity

1,000,000 PCS/Year

Product Description

Item No: YZX-Y3

Quadruped Robot (Trial Version)

Hardware Platform

Standing size: L: 610mm±10mm, W: 370mm±10mm, H: 503mm±10mm
Duration of no-load movement: 1.5h~2h, endurance mileage: 2.7km
Robot balance algorithm uses full force control algorithm (plantar pressure sensor not required, 360 degrees without blind spot sensing, foot ends not easily worn, low maintenance cost)
Robot legs use aluminum alloy, calf uses high strength composite plastic material, pelma uses shock-absorbing, skid-resistant rubber
Pluggable lithium battery: capacity ≥4400mAh, rated energy ≥126.7Wh, charge time: 40min~1h
Machine freedom: 12 (freedom variance of one leg: 3)
Integrated joint module: outside diameter ≤76 mm, high torque density motor, high precision reducer, absolute type encoder, temperature sensor
Built-in power supply output: 5V/24V
Protected mode: soft scram protection, low voltage alarm, superheater temperature alarm

Motion Control

Industrial grade inertial sensor: accelerometer resolution 0.09mg, gyroscope resolution 0.004°/s
Communication bus control frequency: 1kHz

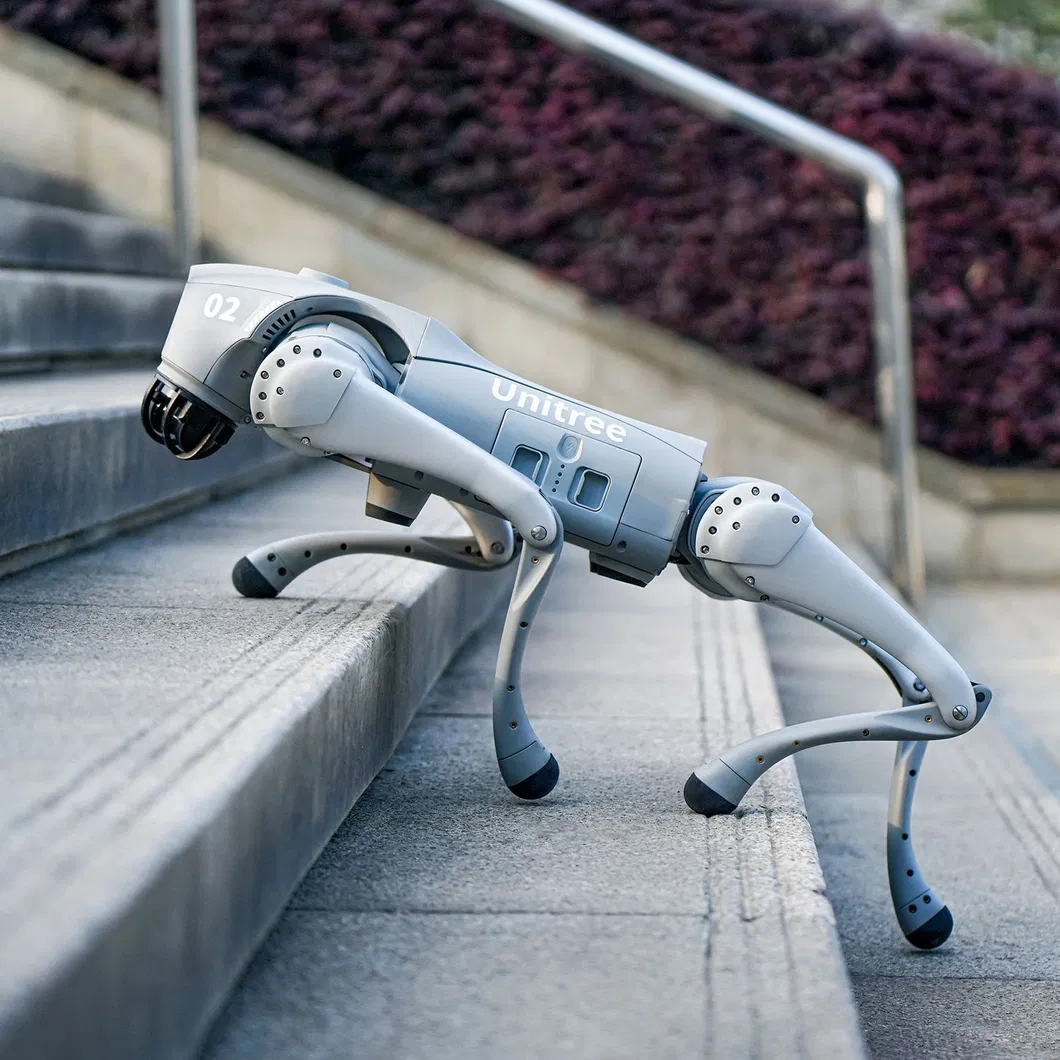

Gaits: up/down stairs, inclines, creeping (supports climbing slope up to 40° depending on material, stairs continuous climbing up to 15cm), walking on concrete and gravel roads
Continuous walking load: up to 5kg

Item No: YZX-Y3

Quadruped Robot (Discovery Edition)

Hardware Platform

Standing size: L: 610mm±10mm, W: 370mm±10mm, H: 503mm±10mm
Duration of no-load movement: 1.5h~2h, endurance mileage: 2.7km
Robot balance algorithm uses full force control algorithm (plantar pressure sensor not required, 360 degrees without blind spot sensing, foot ends not easily worn, low maintenance cost)
Robot legs use aluminum alloy, calf uses high strength composite plastic material, pelma uses shock-absorbing, skid-resistant rubber
Pluggable lithium battery: capacity ≥4400mAh, rated energy ≥126.7Wh, charge time: 40min~1h
Machine freedom: 12 (freedom variance of one leg: 3)
Integrated joint module: outside diameter ≤76 mm, high torque density motor, high precision reducer, absolute type encoder, temperature sensor
Built-in power supply output: 5V/24V
Protected mode: soft scram protection, low voltage alarm, superheater temperature alarm

Motion Control

Reinforced learning motion control algorithm
Industrial grade inertial sensor: accelerometer resolution 0.09mg, gyroscope resolution 0.004°/s
Communication bus control frequency: 1kHz
Gaits: up/down stairs, inclines, creeping (supports climbing slope up to 40° depending on material, stairs continuous climbing up to 15cm), walking on concrete and gravel roads
Continuous walking load: up to 5kg

Item No: YZX-Y3

Quadruped Robot (Professional Version)

Hardware Platform

Standing size: L: 610mm±10mm, W: 370mm±10mm, H: 503mm±10mm
Duration of no-load movement: 1.5h~2h, endurance mileage: 2.7km
Robot balance algorithm uses full force control algorithm (plantar pressure sensor not required, 360 degrees without blind spot sensing, foot ends not easily worn, low maintenance cost)
Robot legs use aluminum alloy, calf uses high strength composite plastic material, pelma uses shock-absorbing, skid-resistant rubber
Pluggable lithium battery: capacity ≥4400mAh, rated energy ≥126.7Wh, charge time: 40min~1h
Machine freedom: 12 (freedom variance of one leg: 3)
Integrated joint module: outside diameter ≤76 mm, high torque density motor, high precision reducer, absolute type encoder, temperature sensor
Built-in power supply output: 5V/24V and communication interface (Ethernet/USB3.0/HDMI/WiFi), convenient for secondary development
Protected mode: soft scram protection, low voltage alarm, superheater temperature alarm

Motion Control

Industrial grade inertial sensor: accelerometer resolution 0.09mg, gyroscope resolution 0.004°/s
Communication bus control frequency: 1kHz
Gaits: up/down stairs, inclines, creeping (supports climbing slope up to 40° depending on material, stairs continuous climbing up to 15cm), walking on concrete and gravel roads
Continuous walking load: up to 5kg
Control functions: running in place, moving around before and after, and turning around
Display moves: forward jump, up jump, twist jump, moonwalk and more
Supports development of other high performance gaits and movements

Intellisense

Carrying NVIDIA Jetson Xavier NX, uses Ubuntu operating system
Wide-angle camera ×1: horizontal view angle 130°; 1920×1080@30fps; can backlight, no distortion, supports human body identification and tracking
Ultrasonic radar ×2: supporting distance detection and stop algorithm development
Depth-sensing cameras ×1: Intel RealSense D435i supporting monocular color image, binocular gray image, depth point cloud, internal imu data output (can be used for visual SLAM and terrain mapping development, color image 1920×1080@30FPS; gray level image 1280×720@30FPS; deep point cloud 1280×720@30FPS; 2.5D terrain mapping is supported, supporting visual algorithm development)
Equipped with human body recognition, front and back stop obstacle, forward obstacle avoidance, autonomous navigation functions

Man-Machine Interaction & Secondary Development

Equipped with speakers and LED light strips, real-time feedback on robot status, and music and lights for robot demonstrations
Providing Android-end robot control application to realize low-delay real-time image transmission and motion control, and support one-click voice control, stop and other functions
Providing robot model, SDK and API for motion development, and demo for motion development, and provide detailed secondary development manuals
Providing perceptual development software interface, provide identification following function and navigation algorithm source code, provide detailed user manual and secondary development manual; Built-in ROS system to support rapid secondary development

Item No: YZX-Y3

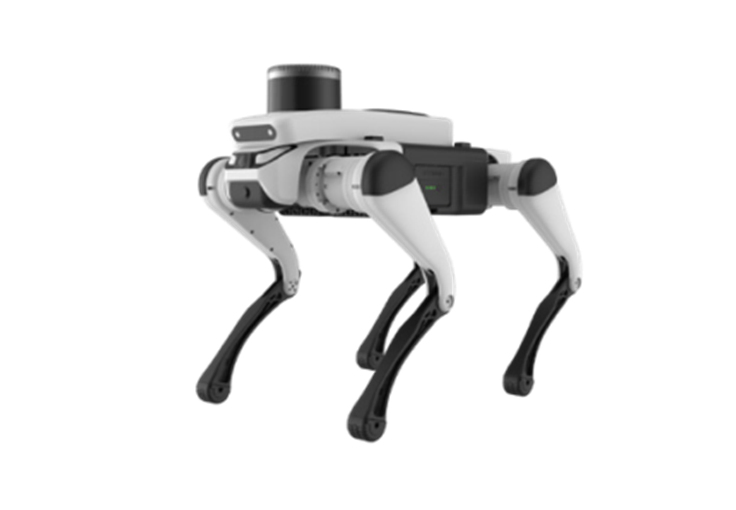

Quadruped Robot (Laser Version)

Hardware Platform

Standing size: L: 610mm±10mm, W: 370mm±10mm, H: 503mm±10mm
Duration of no-load movement: 1.5h~2h, endurance mileage: 2.7km
Robot balance algorithm uses full force control algorithm (plantar pressure sensor not required, 360 degrees without blind spot sensing, foot ends not easily worn, low maintenance cost)
Robot legs use aluminum alloy, calf uses high strength composite plastic material, pelma uses shock-absorbing, skid-resistant rubber
Pluggable lithium battery: capacity ≥4400mAh, rated energy ≥126.7Wh, charge time: 40min~1h
Machine freedom: 12 (freedom variance of one leg: 3)
Integrated joint module: outside diameter ≤76 mm, high torque density motor, high precision reducer, absolute type encoder, temperature sensor
Built-in power supply output: 5V/24V and communication interface (Ethernet/USB3.0/HDMI/WiFi), convenient for secondary development
Protected mode: soft scram protection, low voltage alarm, superheater temperature alarm

Motion Control

Industrial grade inertial sensor: accelerometer resolution 0.09mg, gyroscope resolution 0.004°/s
Communication bus control frequency: 1kHz
Gaits: up/down stairs, inclines, creeping (supports climbing slope up to 40° depending on material, stairs continuous climbing up to 15cm), walking on concrete and gravel roads
Continuous walking load: up to 5kg
Control functions: running in place, moving around before and after, and turning around
Display moves: forward jump, up jump, twist jump, moonwalk and more
Supports development of other high performance gaits and movements

Intellisense

Carrying NVIDIA Jetson Xavier NX, uses Ubuntu operating system
Wide-angle camera ×1: horizontal view angle 130°; 1920×1080@30fps; can backlight, no distortion, supports human body identification and tracking
Ultrasonic radar ×2: supporting distance detection and stop algorithm development
Depth-sensing cameras ×1: Intel RealSense D435i supporting monocular color image, binocular gray image, depth point cloud, internal imu data output (can be used for visual SLAM and terrain mapping development, color image 1920×1080@30FPS; gray level image 1280×720@30FPS; deep point cloud 1280×720@30FPS; 2.5D terrain mapping is supported, supporting visual algorithm development)
LiDAR ×1 (Laser Version Only): 16 channels, detection range 100m @10%, 150m @70%; supporting 3D-SLAM algorithm exploitation building a map to navigate and avoid obstacles, supporting depth-sensing cameras inertial navigation, LiDAR multi-sensor fusion algorithm, more accurate navigation, path planning and obstacle avoidance can be achieved
Equipped with human body recognition, front and back stop obstacle, forward obstacle avoidance, autonomous navigation functions

Man-Machine Interaction & Secondary Development

Equipped with speakers and LED light strips, real-time feedback on robot status, and music and lights for robot demonstrations
Providing Android-end robot control application to realize low-delay real-time image transmission and motion control, and support one-click voice control, stop and other functions
Providing robot model, SDK and API for motion development, and demo for motion development, and provide detailed secondary development manuals
Providing perceptual development software interface, provide identification following function and navigation algorithm source code, provide detailed user manual and secondary development manual; Built-in ROS system to support rapid secondary development

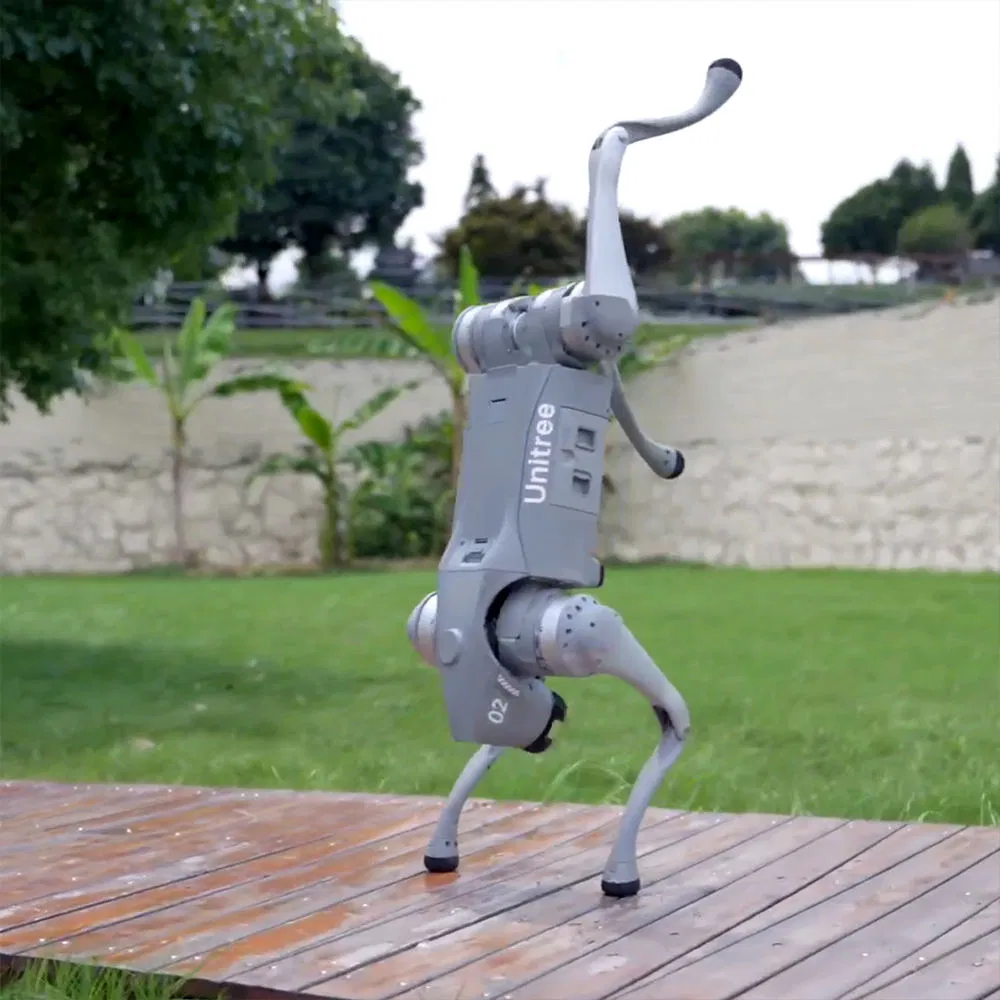

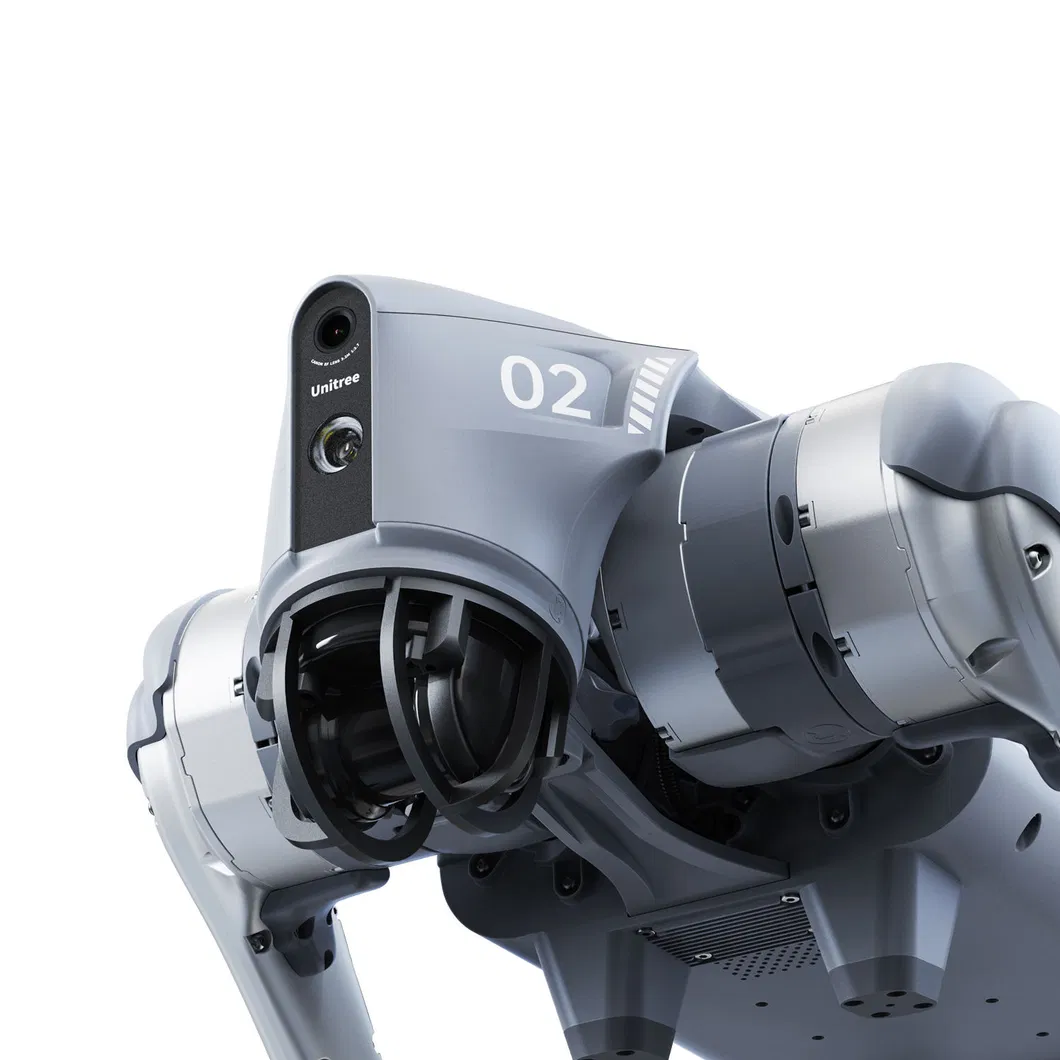

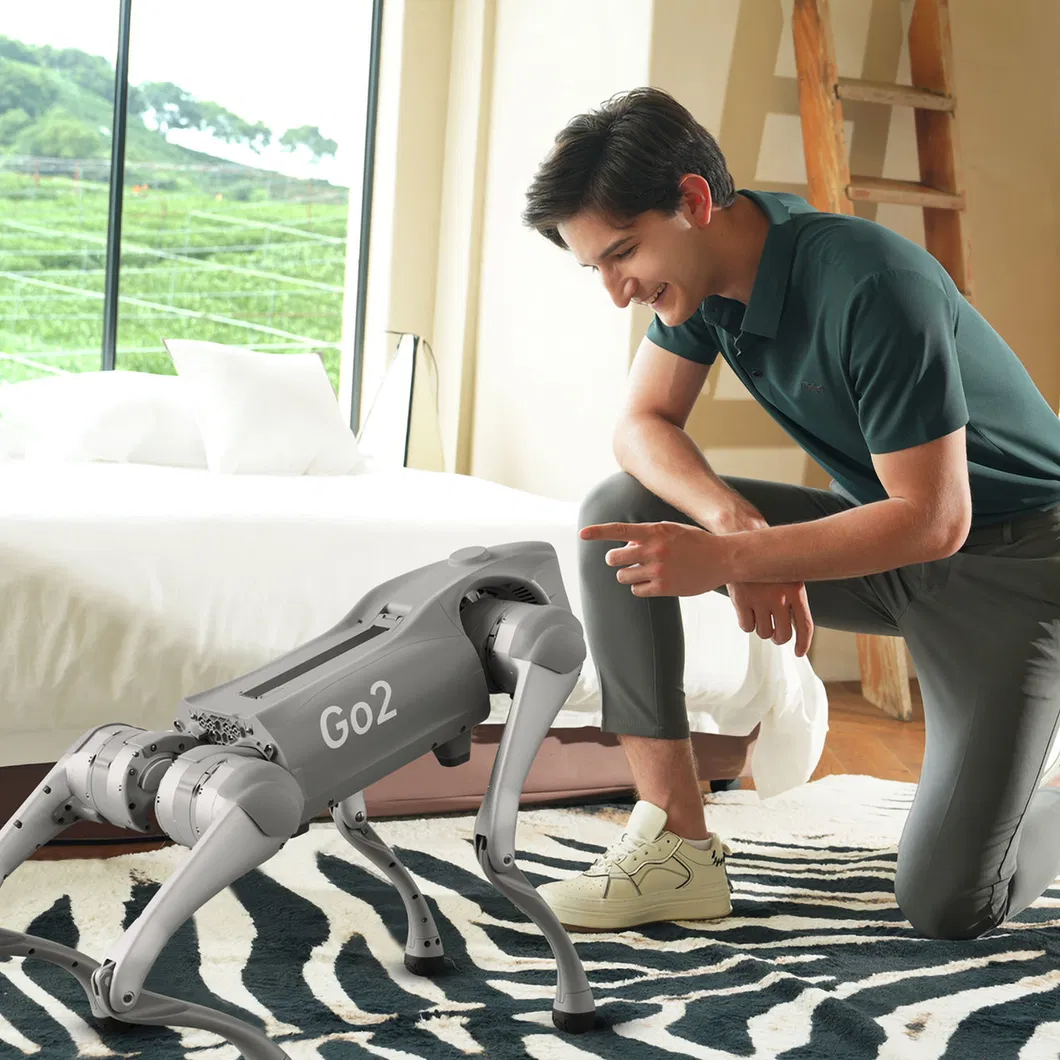

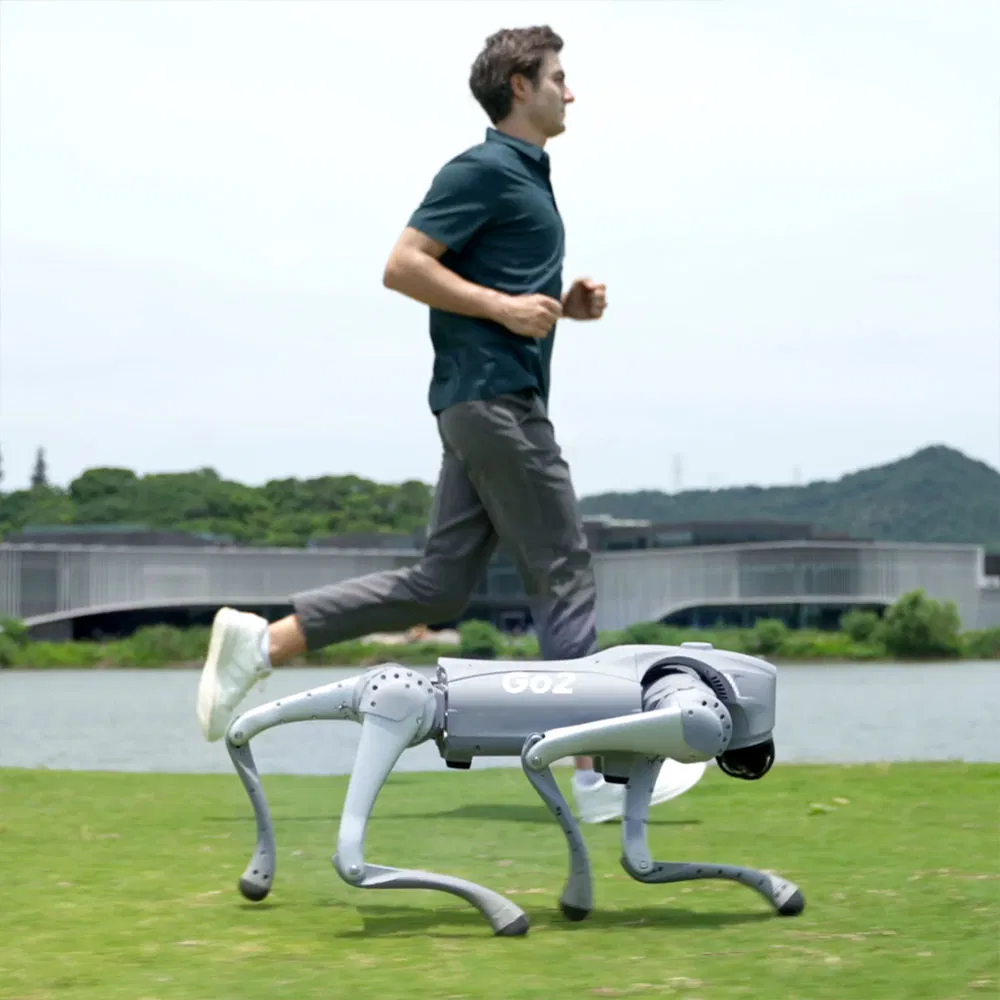

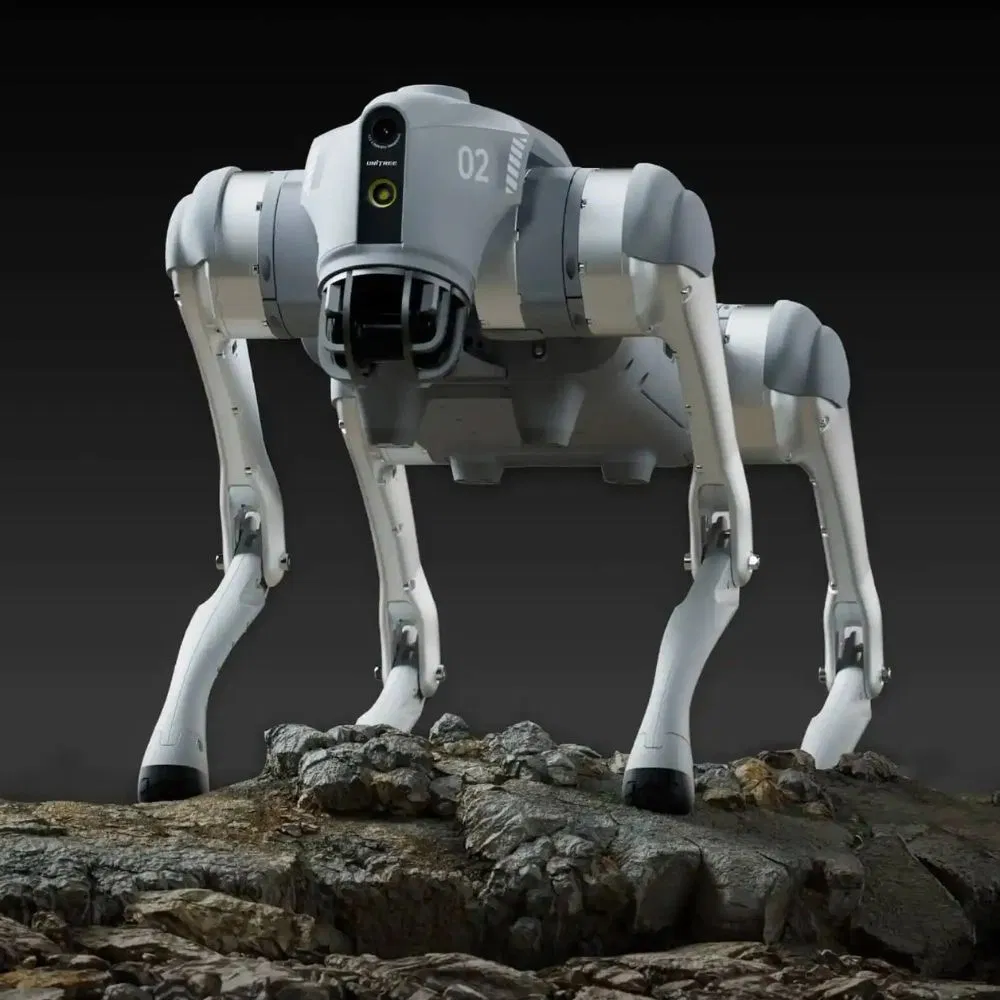

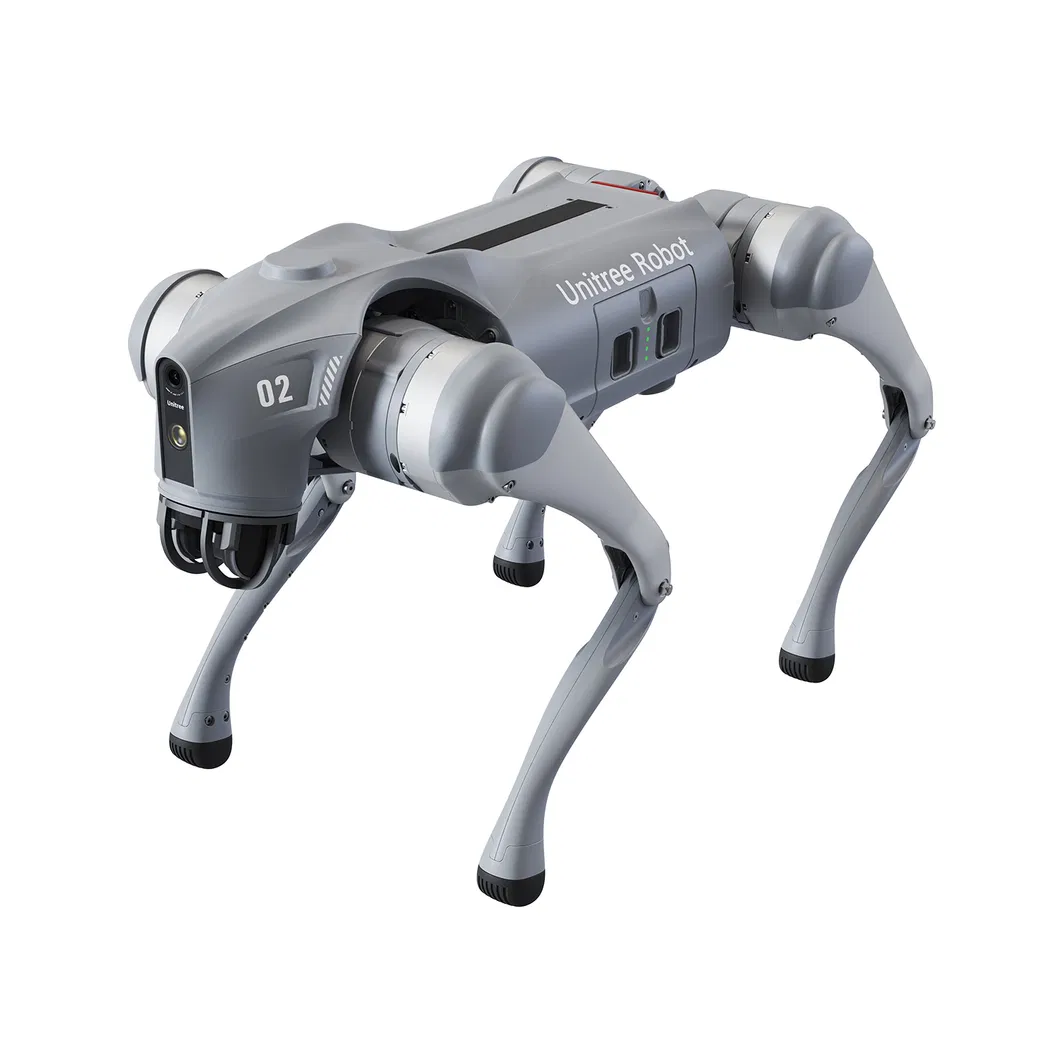

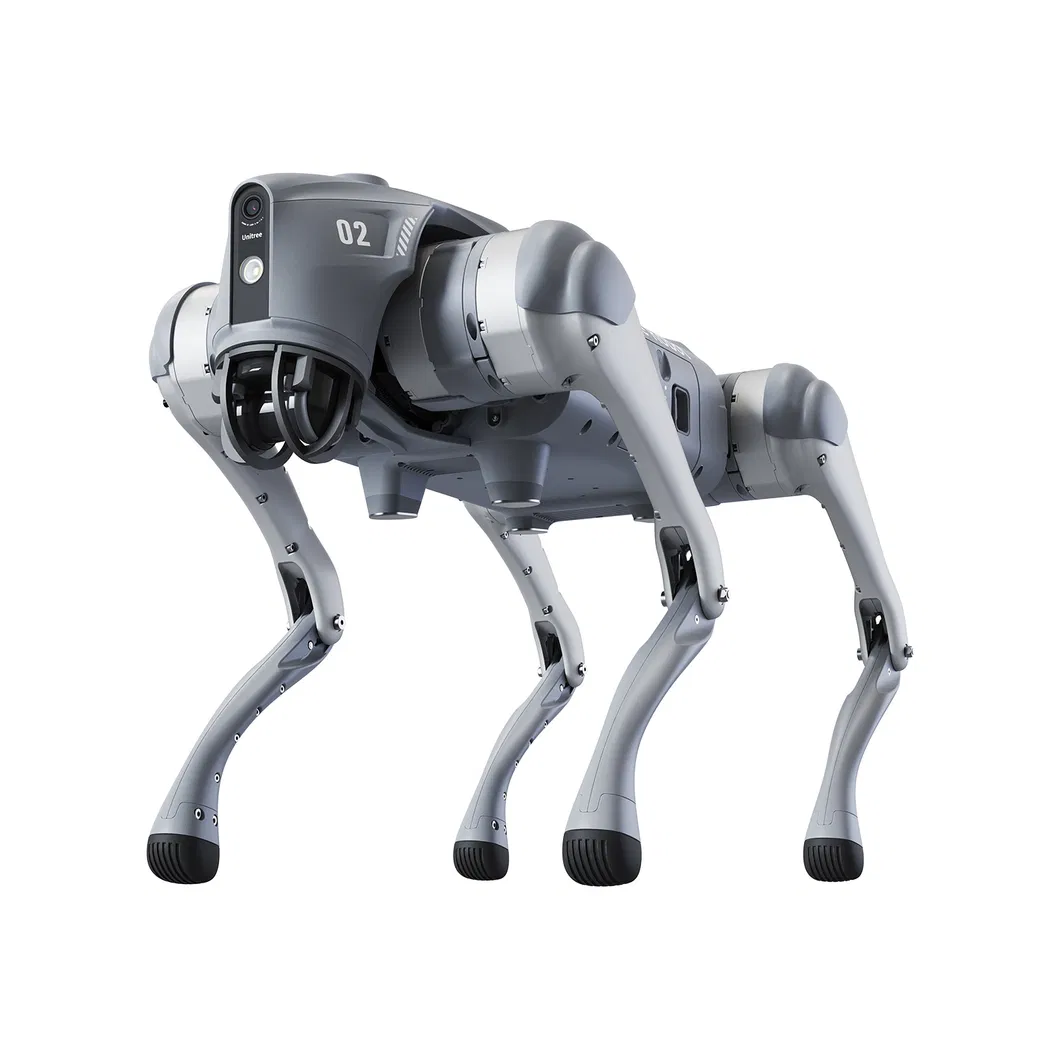

Detailed Photos

Frequently Asked Questions

Are you a factory or a trading company?

We have our own factory to produce printing and packaging products, and we also act as an agent for several other brands.

Why should we choose your products?

We are a reliable partner dedicated to win-win solutions. We offer highly professional pet and robotic products tailored exactly to your requirements, backed by reasonable factory pricing.

How are shipping costs calculated?

For smaller shipments, we can send goods via courier services such as FEDEX or DHL at highly competitive rates due to our long-term cooperation. For larger shipments, we deliver via sea freight and can provide a quote using either our forwarder or yours.

How is the price determined, and can it be discounted?

Pricing depends on your specific demands, including shape, size, and quantity. We will provide our best quotation upon receiving a full description of the item you require.

What is the sample lead time and payment terms?

Sample time is typically 3 to 7 days after the order and samples are confirmed. We accept T/T (50% deposit, with the balance paid after order completion), L/C, Western Union, D/P, and O/A.

What are the main differences between the YZX-Y3 versions?

The YZX-Y3 series scales from a basic Trial Version for motion testing, to the Discovery Edition featuring reinforcement learning, the Professional Version with advanced perception (NVIDIA Jetson, depth camera, ROS SDK), and the Laser Version which adds LiDAR for high-precision 3D-SLAM navigation and obstacle avoidance.
