As a professional manufacturer of liquid beverage packaging solutions, we supply comprehensive equipment including water treatment systems, water filling production lines, carbonated drink making and filling lines, juice production lines, and complete packaging solutions such as labeling and shrink packing machines.

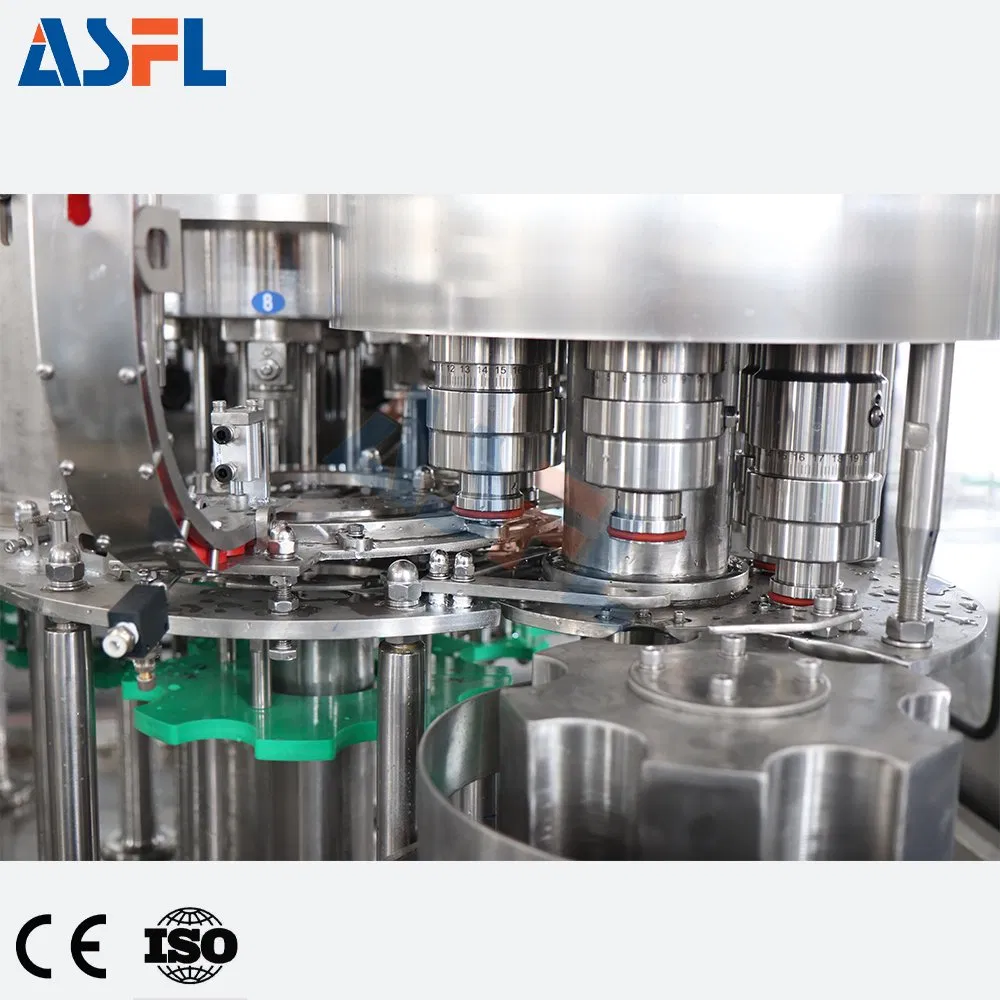

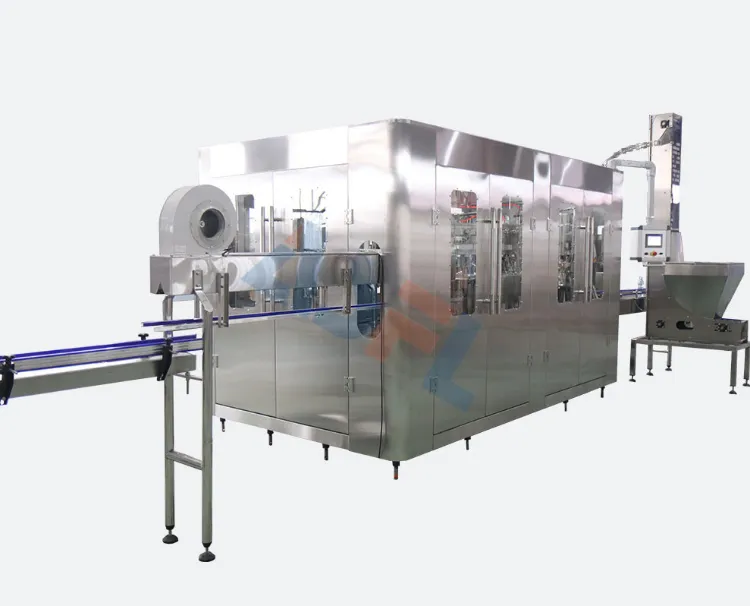

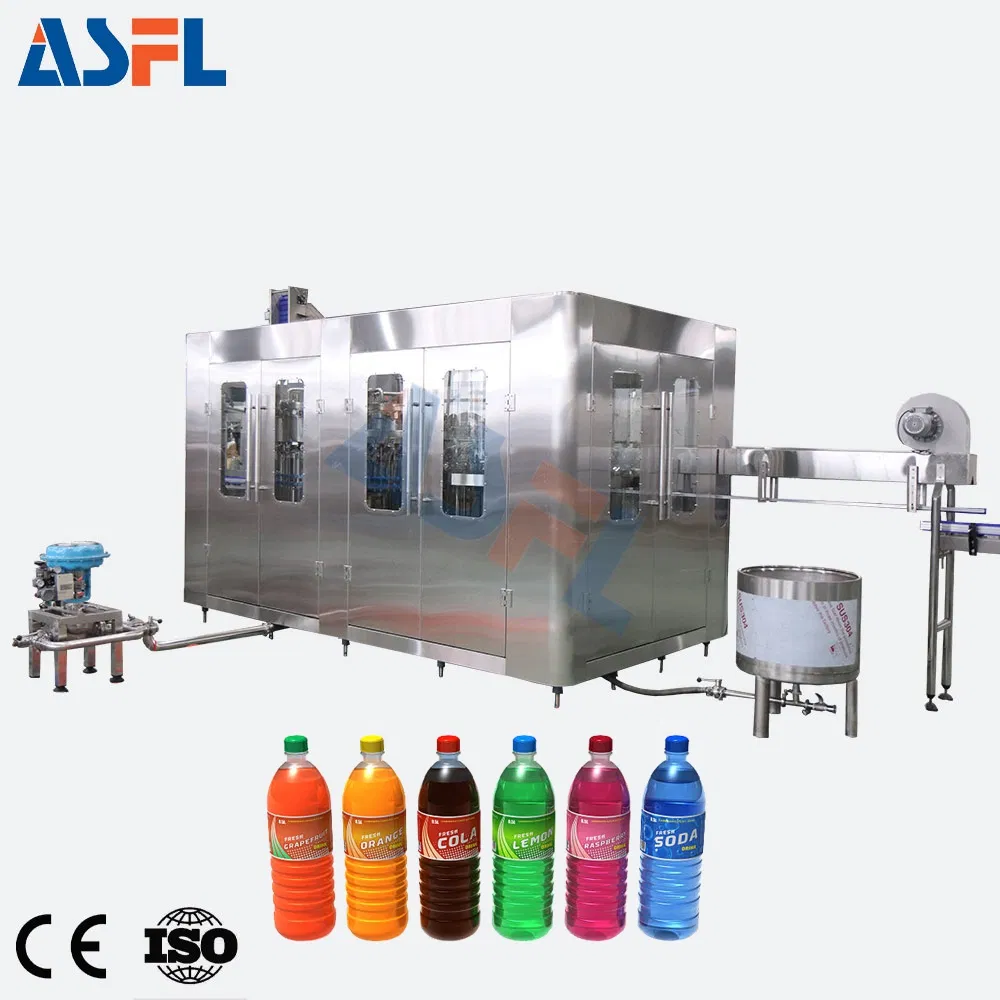

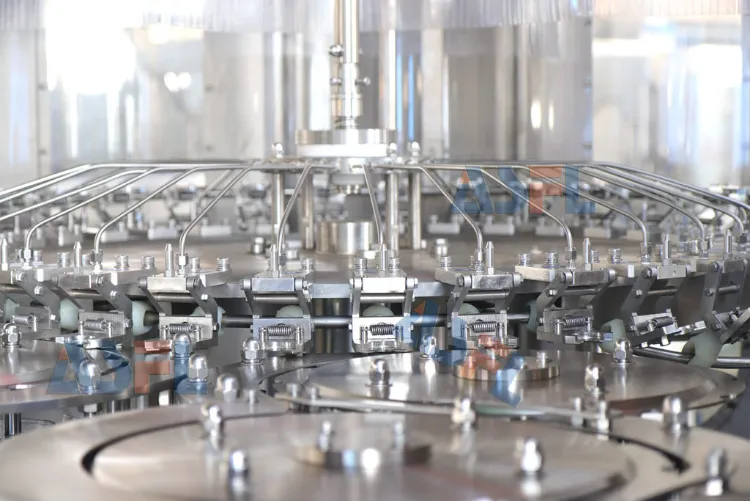

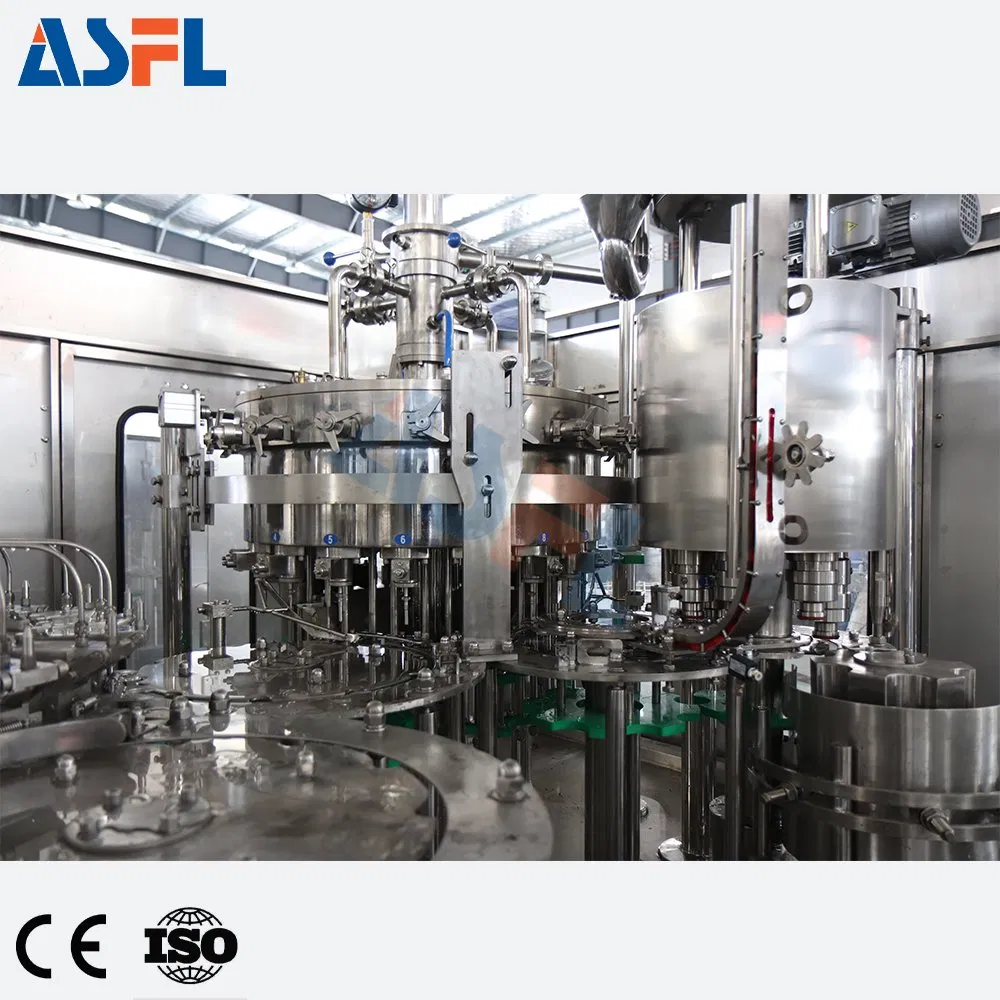

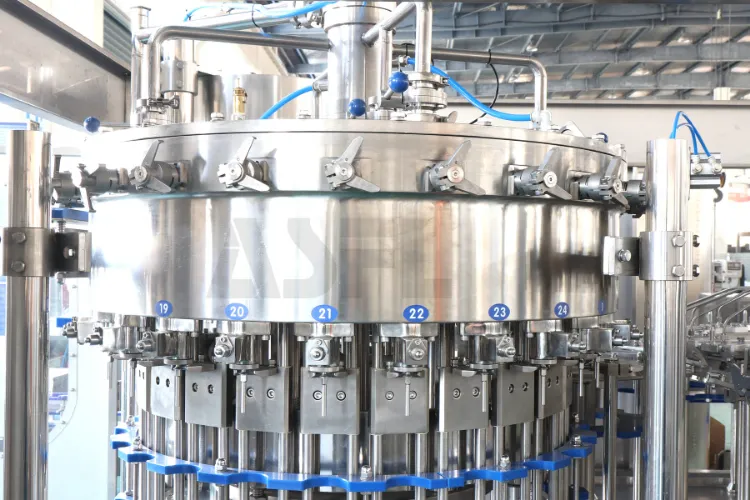

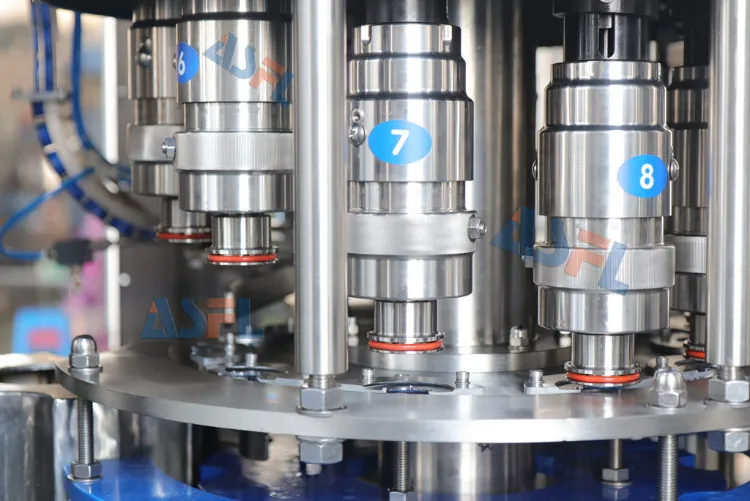

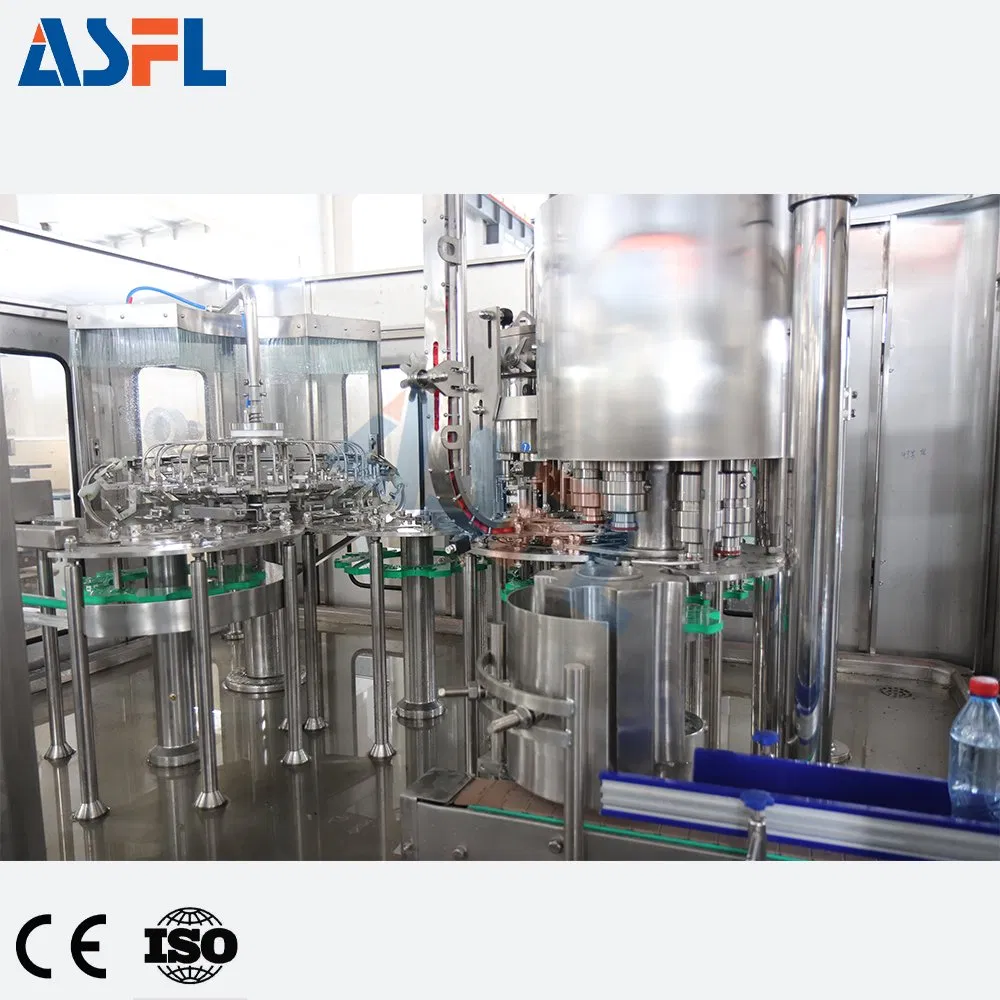

The Carbonated Soft Drink Filling Machine adopts bottleneck drive technology to realize automatic bottle washing, filling, and capping. It features accurate CO2 pressure control and stable liquid level management. Equipped with multiple protection and alarm devices for jammed bottles or missing caps, it ensures high product quality, reliability, and simple operation. All material contact parts are made of high-grade stainless steel for hygiene and easy cleaning.

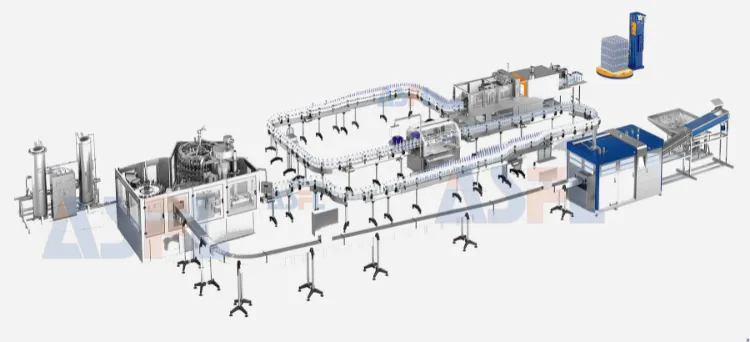

Factory Layout - Carbonated Soft Drink Filling Line
| Equipment Type | Automatic |
|---|---|
| Bottle Type | PET round or square bottle (200 - 2000ml) |
| Bottle Dimensions | Diameter 50-115mm | Height 160-320mm |
| Capacity | Up to 24000BPH (500ml) |
| Suitable Products | Carbonated soft drink, soda water, cola, etc. |
| Model | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 | DCGF50-50-12 |
|---|---|---|---|---|---|
| Capacity (500ml) | 3000-4000 | 6000-8000 | 8000-10000 | 10000-14000 | 14000-18000 |
| Suitable Bottle | PET circular or square (50-115mm diameter) | ||||
| Bottle Height | 160-320mm | ||||
| Total Power | 5.03kw | 6.57kw | 8.63kw | 9.63kw | 12.5kw |
| Weight (kg) | 3500kg | 4500kg | 6000kg | 8000kg | 10500kg |

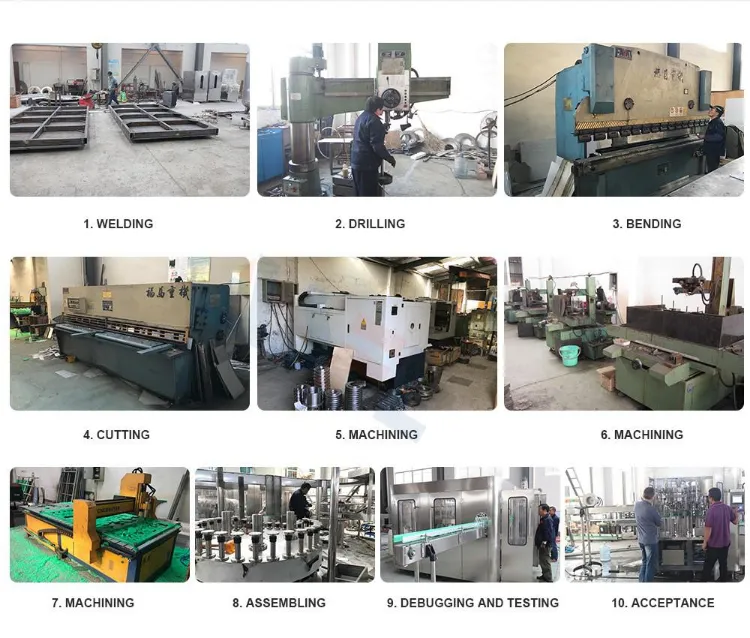

Our production process involves strict quality control across ten critical stages: welding, drilling, bending, machining, assembling, debugging, testing, and final acceptance. Every machine undergoes repeated testing before being put into service to ensure peak performance.
