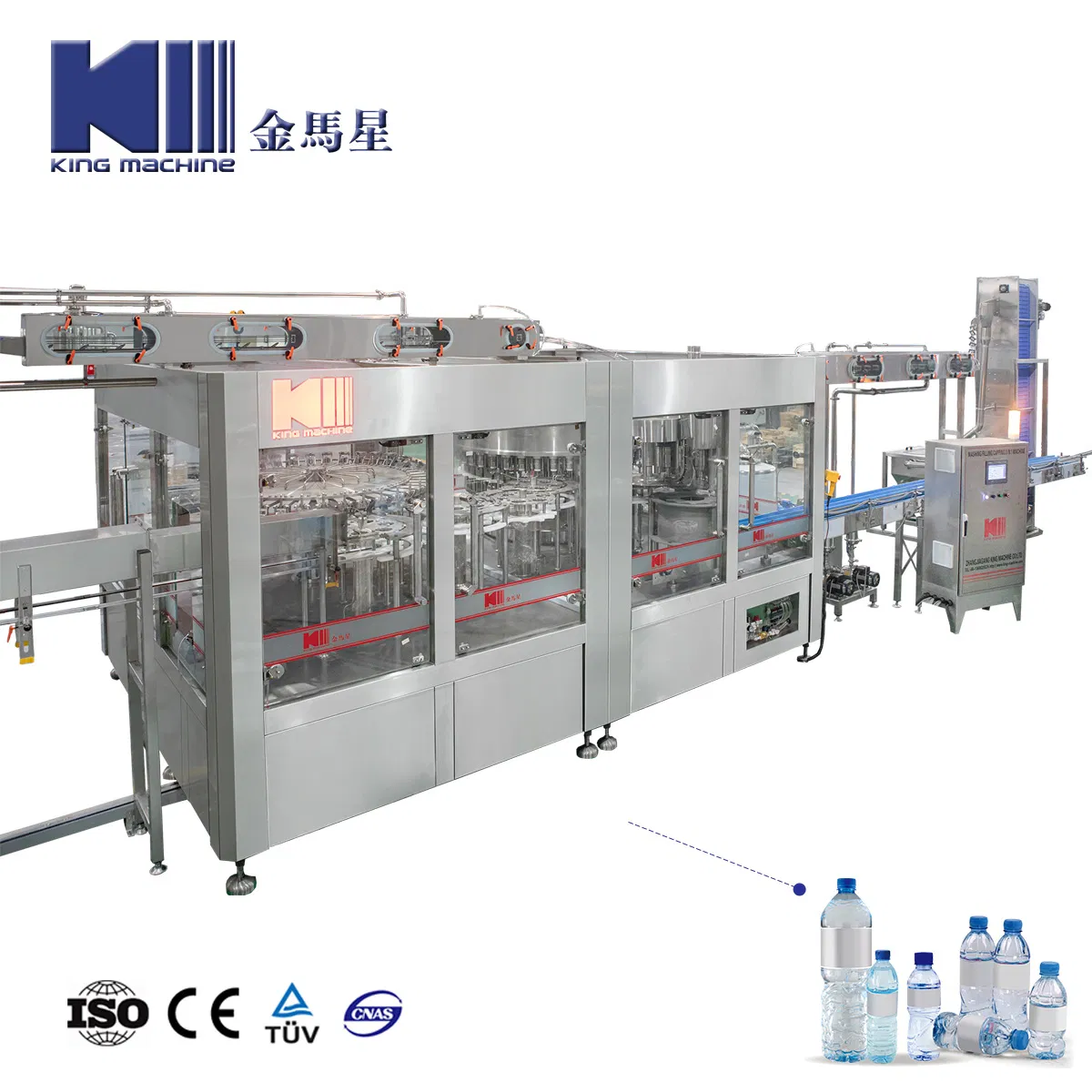

Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
1 / 5
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System
Automatic Drinking Mineral Water Filling System

Automatic Drinking Mineral Water Filling System

Customization: Available
After-sales Service: Support
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.
CGF-XFH
Type
Volumetric Filling Machine
Automatic Grade
Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Dosing Device
Plunger
Structure
Rotary
Packaging
Bottle
Function
Washing, Filling, Capping
Capacity
2000bph~18000bph
Material
Stainless Steel 304/316
Electric Parts
Siemens
Product Description

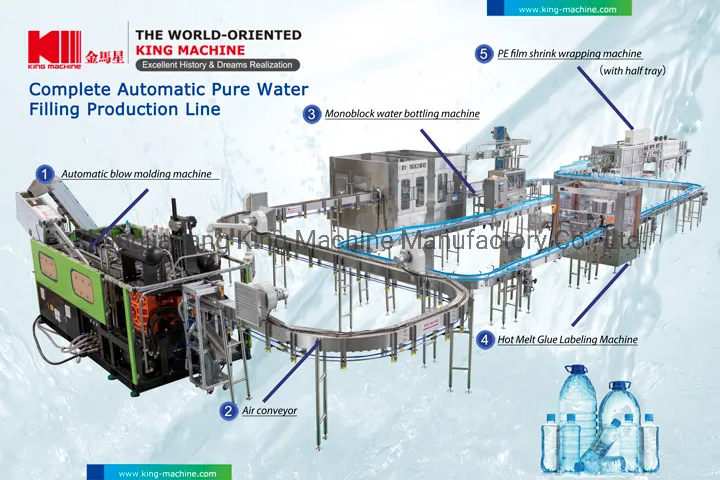

Full Automatic Pure Mineral Water Bottle Filling Machine

Full Automatic Pure Mineral Water Bottle Filling Machine

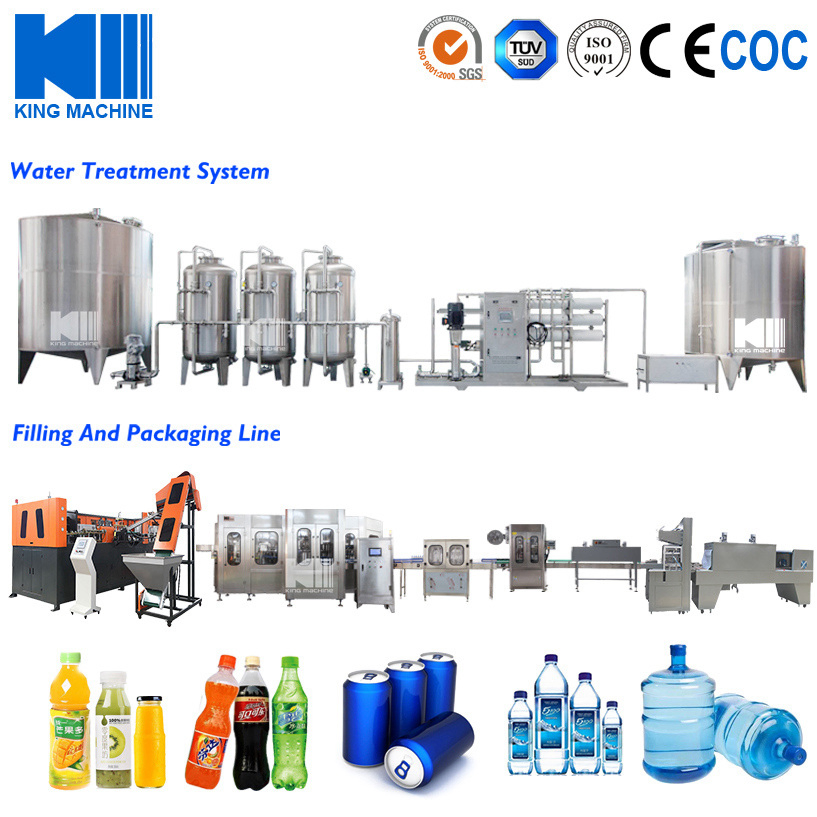

We supply complete solutions for water filling plants, including water treatment systems, washing-filling-capping machines, code sprayers, automatic labeling machines, automatic packing machines, and automatic palletizer systems.

Introduction:

The Wash-filling-capping 3-in-1 unit is used to produce polyester bottled mineral water, purified water, and other non-gas beverages. It integrates the processes of bottle washing, filling, and sealing into one body, reducing manual contact, improving sanitary conditions, and increasing production efficiency.

Technical Parameters
ContainersPET Bottle (Square or Round)
Filling Volume100-2000ml
Filling PrincipleAtmospheric Pressure / Gravity Filling
Temperature Range10~40ºC
Power Supply380V, 3 Phase, 50HZ
Detailed Photos & Components

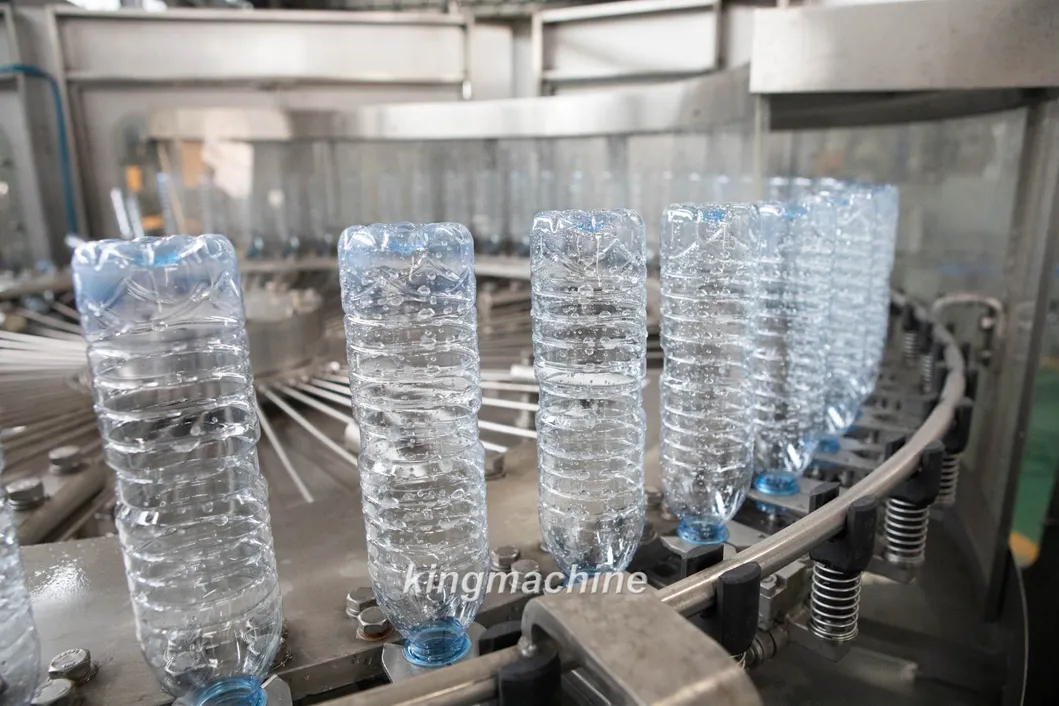

Washing heads

Washing Heads: SUS304 stainless steel rotary disk with efficient spray nozzles for thorough inner wall cleaning.

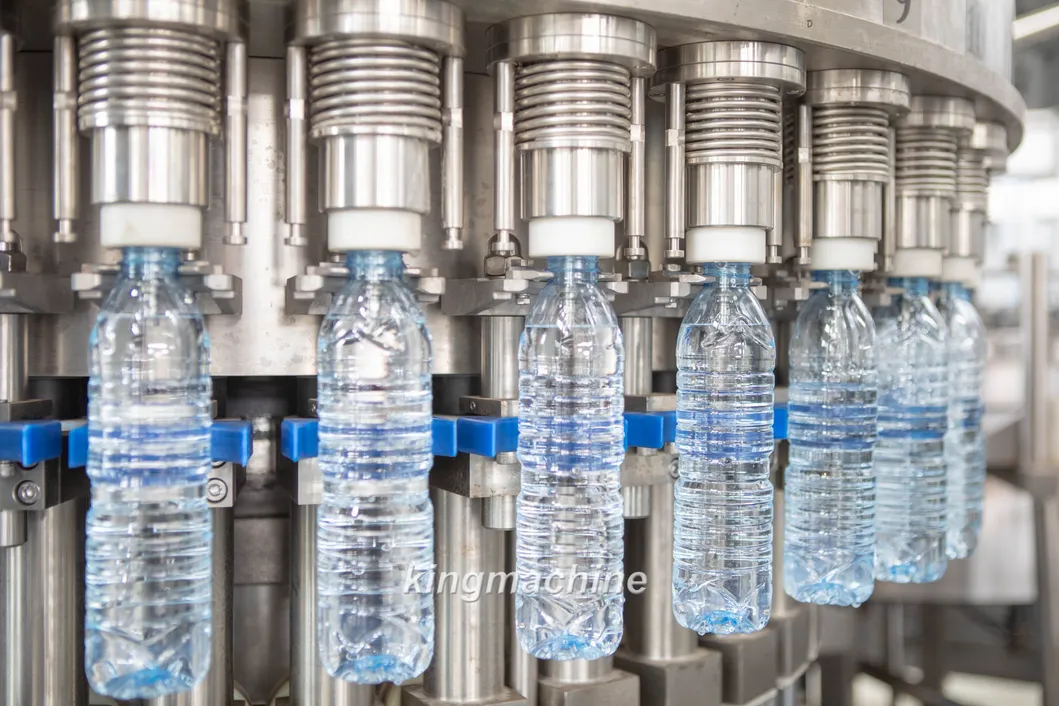

Filling heads

Filling Heads: Gravity filling method with accurate quantity control and SUS304 construction.

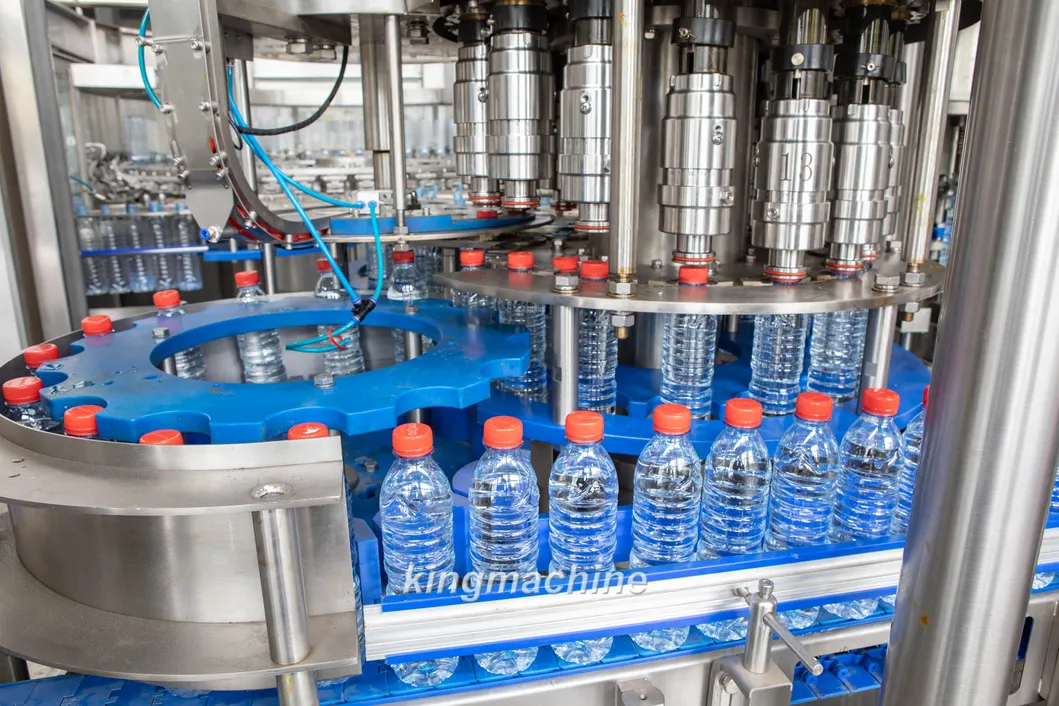

Capping heads

Capping Heads: High-precision capping technology ensuring reliability and low defective rates.

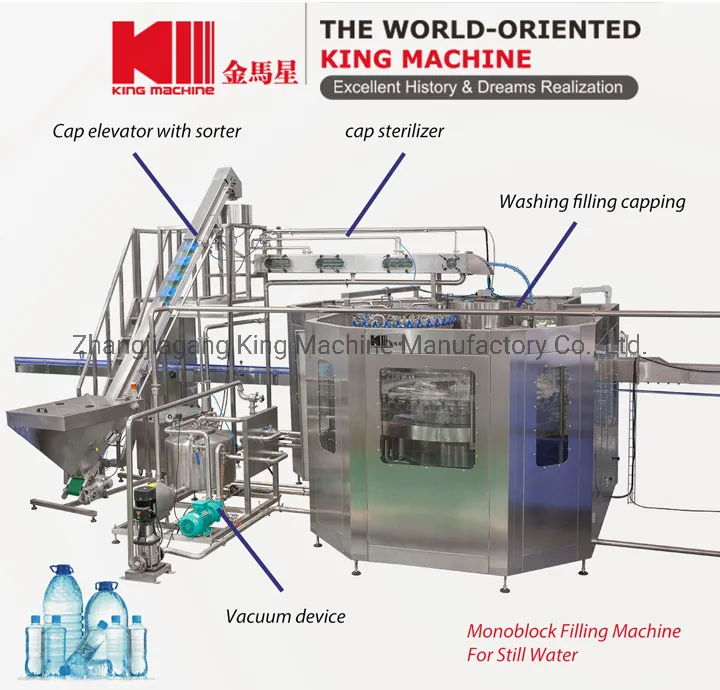

Internal Structure

Internal View: Compact design for optimal performance.

Main Features
  • Direct connection technology between wind access and move wheel; no conveyor chains needed for easier bottle shape change.
  • Bottle transmission adopts clip bottleneck technology; no need to adjust equipment height for different bottle sizes.
  • Specially designed stainless steel washing clips avoid secondary pollution at the bottle mouth.
  • High-speed gravity flow filling valve ensures fast and accurate filling without liquid loss.
  • Host adopts advanced PLC automatic control (Mitsubishi, OMRON parts).
Auxiliary Machines

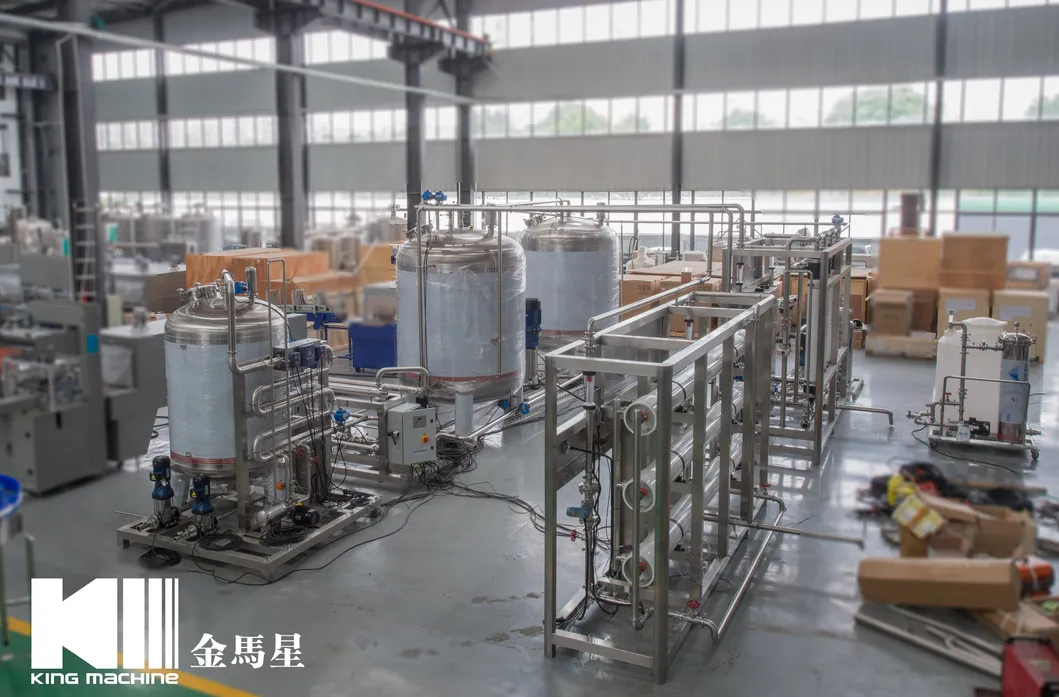

RO Water Treatment

RO Water Treatment: Includes silica sand filter, active carbon, and reverse osmosis systems.

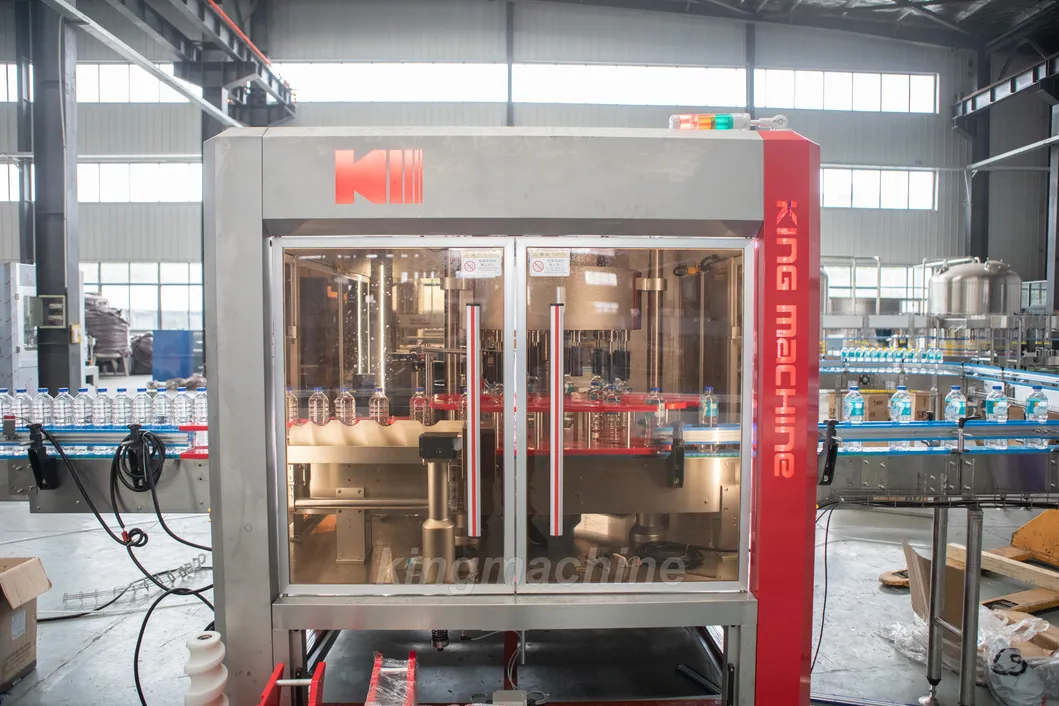

Labeling Machine

Automatic Labeling: Economical hot melt glue labeling for various container types.

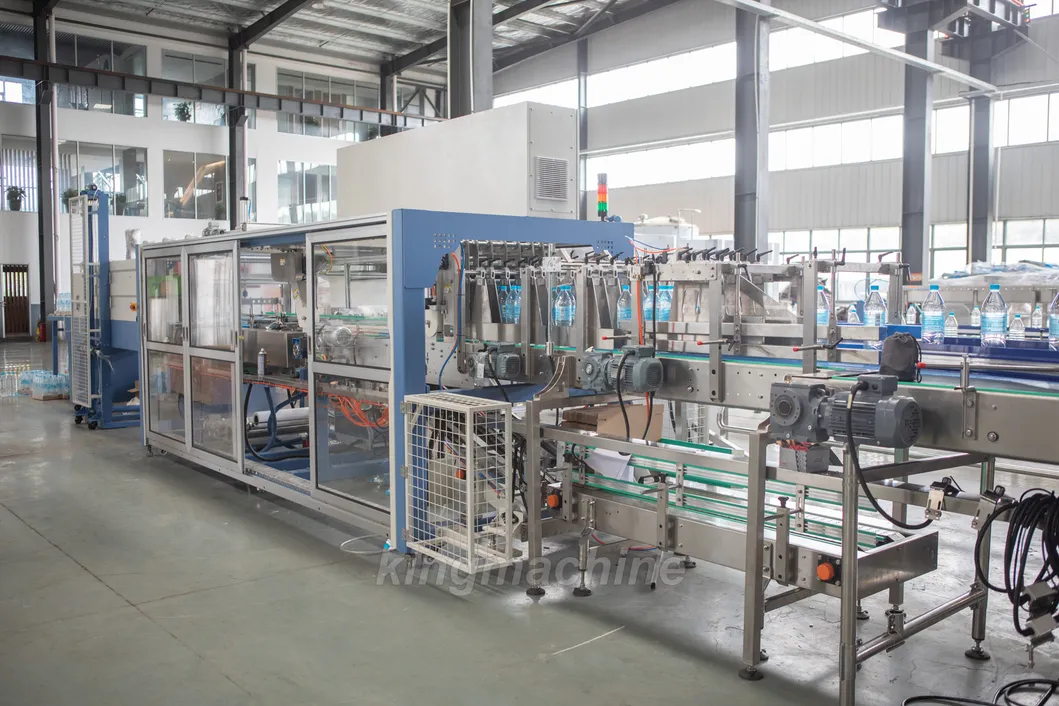

Packaging Machine

Film Packaging: Automatic PE heat shrink wrapping for multi-bottle groups.

Professional Services
✅ Installation & Debug
Experienced technicians for equipment setup and test production.
✅ Training
Technical training on structure, maintenance, and operation.
✅ Quality Guarantee
12 months warranty with free wearing parts provided.
✅ After-Sales
Life-long technical support and remote troubleshooting.

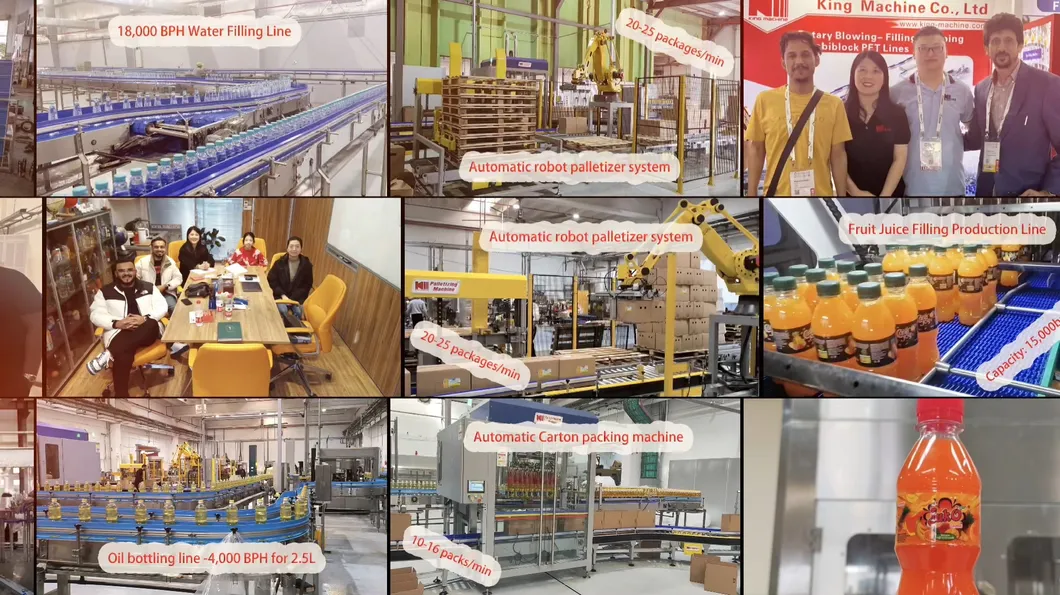

Technical Support
Frequently Asked Questions
Do you provide customized services?
Yes, we can design the machines according to your specific requirements such as material, power, filling type, and bottle shapes, providing professional suggestions based on years of industry experience.
What is the warranty for the machines?
We offer high-quality machines with a 1-year guarantee and provide life-long technical support to ensure your production runs smoothly.
How long does the installation take?
Depending on your order, we send engineers to your plant. The installation and commissioning process usually takes between 10 to 25 days.
Can I see the machine running before purchasing?
You are always welcome to visit our factory to see the machines in operation. We can also provide videos of our reference machines running at customer sites.
What kind of after-sales service do you provide?
We provide installation, debugging, operator training, and 24/7 technical support. Spare parts are available at favorable prices after the warranty period.
Is the machine suitable for different bottle sizes?
Yes, our machines are suitable for producing PET plastic bottles ranging from 250ml to 2000ml, including both round and square bottle shapes.
