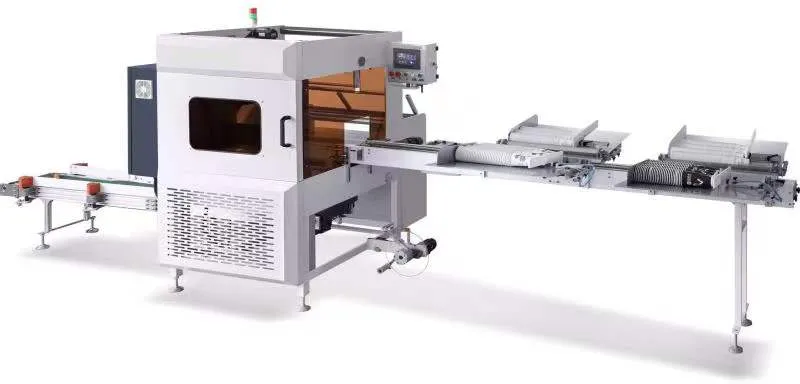

YB-520 Horizontal Packaging Machine - Four Stations

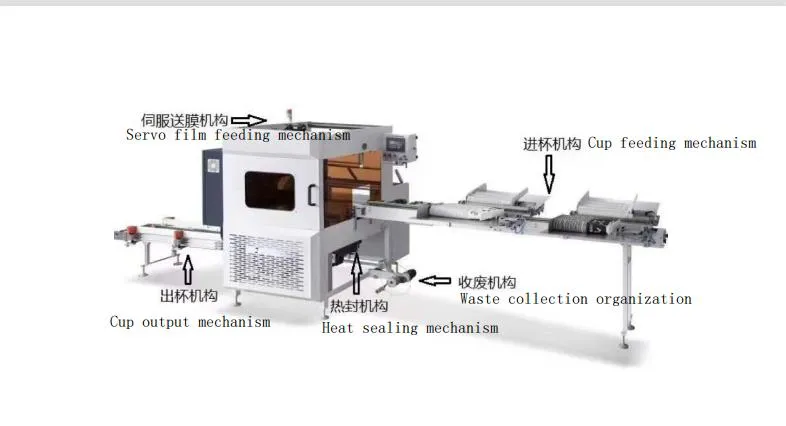

Equipment Introduction
1Cup feeding: After the paper cup is counted by the cup counting frame, it falls down and slides onto the cup table. After the optical eye detects a cup, the cup turning mechanism pours the paper cup on the rope and send it to the top of the heat sealing splint.
2Film feeding: When the optical eye detects a cup, it sends a pulse to the servo driver after being recognized by the PLC program, and sends out the corresponding length film according to the different caliber of the cup.
3Heat sealing: The hot air splint opens, the cup moves down, the splint closes, and the heat sealing knife heat seals the film to complete the bag sealing process.
4Cup output: The sealed cup drops onto the rear conveyor board, and cups of different specifications are dropped into the box from the corresponding cup outlet according to the memory function of PLC program to complete cup collection.

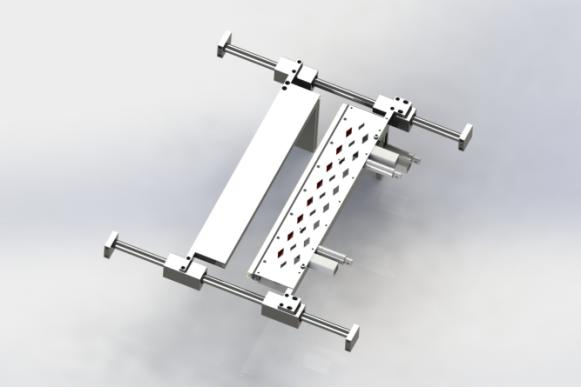

Characteristics of Equipment Mechanism (1)
The use of mechanical and pneumatic execution makes the incision more firm and beautiful. Compared with other supplier's machines, the noise is less, the machine vibration is less, and the adjustment is more convenient. In addition, the cutter uses special materials and quenching process to make the cutter more durable, and PE, OPP, PP, POF films and other types of packaging films can be effectively used. The cutting knife crosses the iron boiling dragon, which effectively prevents the film from sticking when running, making it more convenient to clean.
Characteristics of Equipment Mechanism (2)
The design of servo motor film feeding mechanism makes the film feeding more accurate. When it is produced online with multiple units of paper cup machines, the film length can be set in groups, which is more suitable for paper cups of different sizes and packaging sizes and saves film materials.

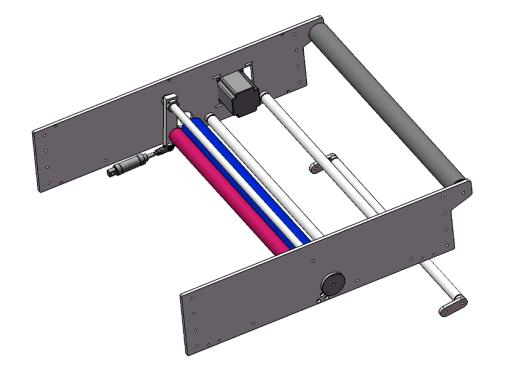

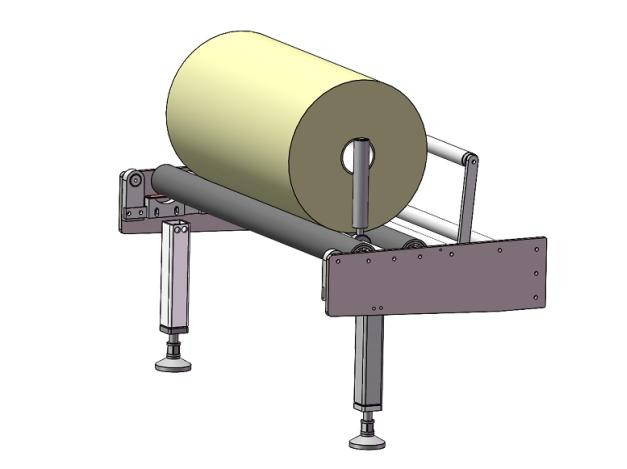

Characteristics of Equipment Mechanism (3)
The film supporting mechanism adopts the form of floor support, which is more convenient and faster than traditional machines for threading and loading film. It can bear the weight of film and has less restrictions on the size of film materials, and can be loaded with larger packaging film.

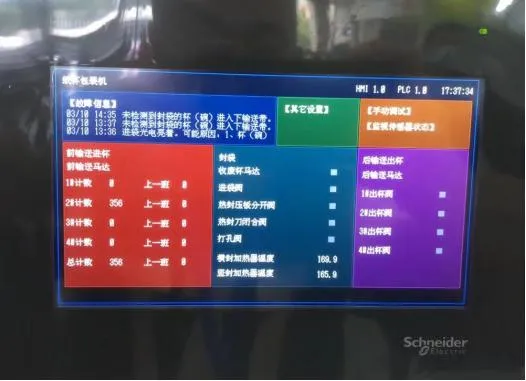

Characteristics of Equipment Mechanism (4)
The imported international brand PLC programmable controller and touch human-machine interface make the operation easier.
Ten Advantages of Equipment
- 4 independent motor control (servo motor used for feeding, discharging and waste collection)
- Motion controller for fast response to various commands
- Precise positioning of products
- Independent temperature control module for stable and uniform heating
- 304 stainless steel used for parts in contact with products
- All electrical components are from international brands
- Anti-empty bag function: Start with material, stop without material to save film
- One machine can produce different specifications and sizes online
- Automatic shutdown alarm for insufficient air pressure to reduce waste
- Stable and reliable quality with years of cooperation with first-line manufacturers

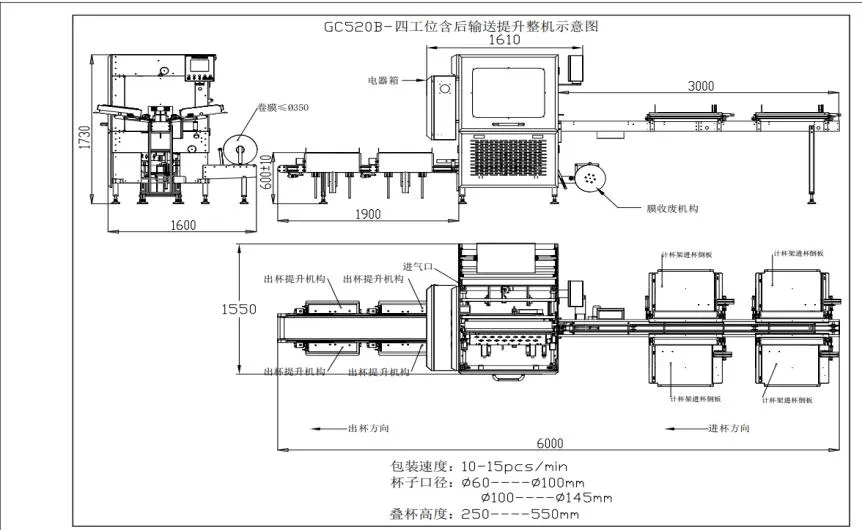

Technical Parameters - Four Stations
| Parameter | Specification (YB-520B) |
|---|
| Speed | 10-15 bag/min |
| Cup bottom size | Ø65-Ø100, Ø100-Ø145 |
| Package height | 250 - 550mm |
| Material of packing film | OPP PE PP POF |
| Thickness of packing film | 15 - 30um |
| Total power | 2.8KW |
| Electrical power | 220V 50HZ |
| Air supply | ≥ 0.5 Mpa |
| Weight | 800kg |
| Machinery size | 6000*1600*1730mm (Machine size: 1610*1600*1730) |

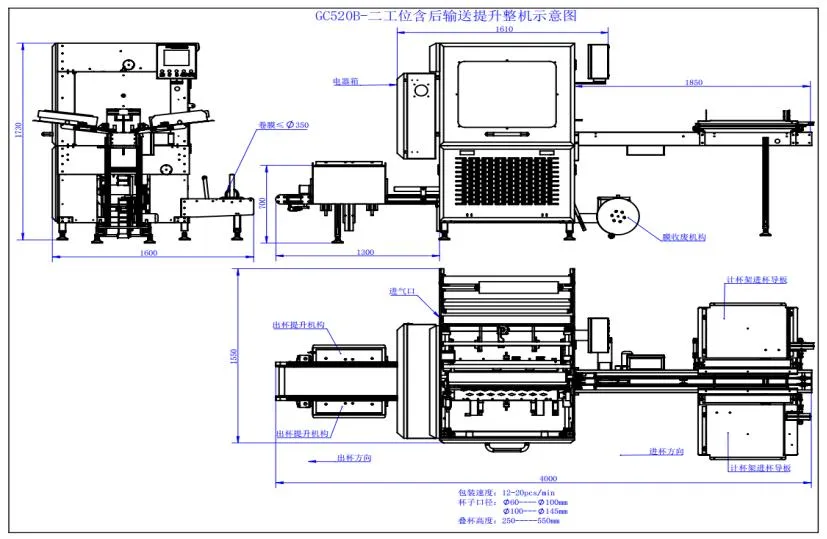

Technical Parameters - Two Stations
| Parameter | Specification (YB-520B) |
|---|
| Speed | 10-20 bag/min |
| Weight | 650kg |
| Machinery size | 4000*1600*1730mm |

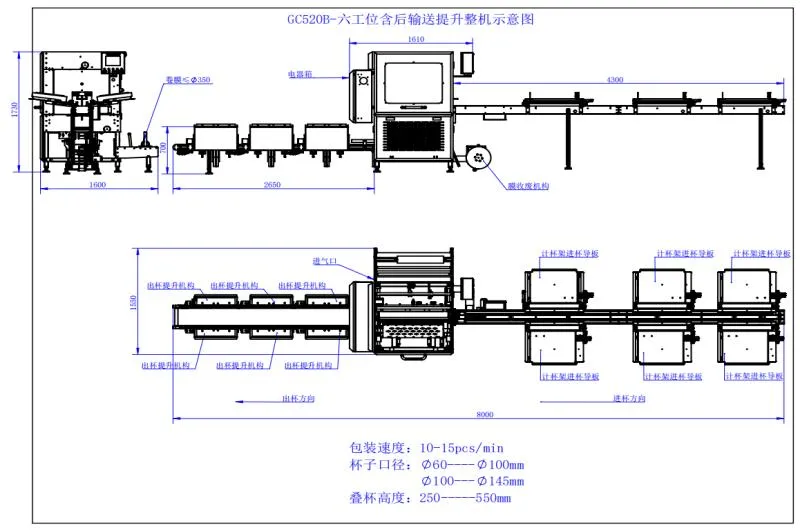

Technical Parameters - Six Stations
| Parameter | Specification (YB-520B) |
|---|
| Speed | 10-15 bag/min |
| Weight | 950kg |
| Machinery size | 8000*1600*1730mm |
Main Components Configuration
| Parts |
Brand |
Quantity |
Origin |
| PLC | Schneider | 1 set | France |
| Touch screen | Schneider | 1 pcs | France |
| Temperature Template | Schneider | 1 pcs | France |
| Servo motor | Delta/Schneider | 1 set | China/France |
| Photoelectric switch | Schneider | 6 pcs | France |
| Intermediate relay | Schneider | 6 pcs | France |
| Pneumatic components | Runjia | 1 set | China |
*Note: The above is for reference only, please refer to the actual equipment configuration.
Frequently Asked Questions
Q1: What materials can the YB-520 packaging machine handle?
A1: It is compatible with various packaging films, including PE, OPP, PP, and POF, making it versatile for different paper cup and bowl packaging needs.
Q2: How does the "Anti-empty bag" function work?
A2: The machine automatically starts when it detects material and stops when there is no material. This prevents the waste of packaging film and ensures efficient production.
Q3: Can one machine be used for different cup sizes?
A3: Yes, the machine is designed to produce different specifications and sizes online, offering great flexibility for manufacturers with multiple product lines.
Q4: What are the main benefits of using Schneider components?
A4: Using international brands like Schneider for PLC and touch screens ensures high reliability, easier operation, and global availability for maintenance parts.
Q5: Is the machine noisy during high-speed operation?
A5: No, thanks to the precision of mechanical and pneumatic execution, the machine operates with less noise and vibration compared to traditional packaging machines.
Q6: How does the servo motor improve the packaging process?
A6: The servo motor ensures extremely accurate film feeding and response times, which allows for group settings of film lengths and reduces material waste significantly.
