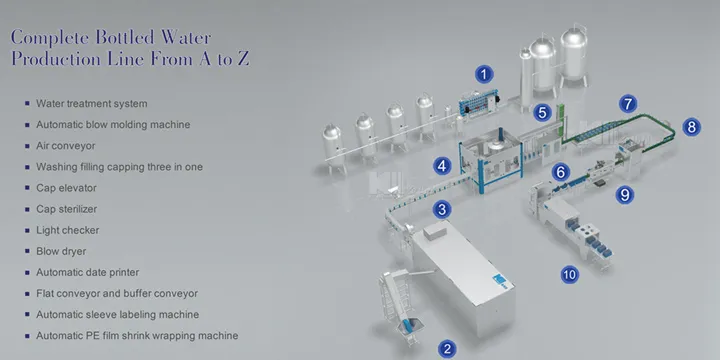

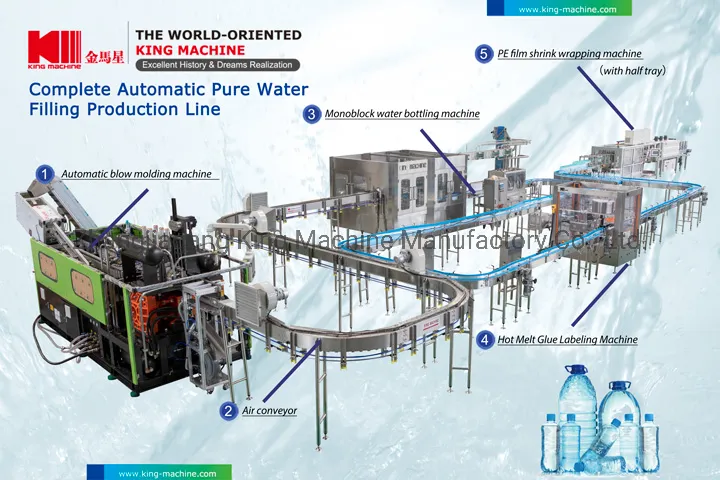

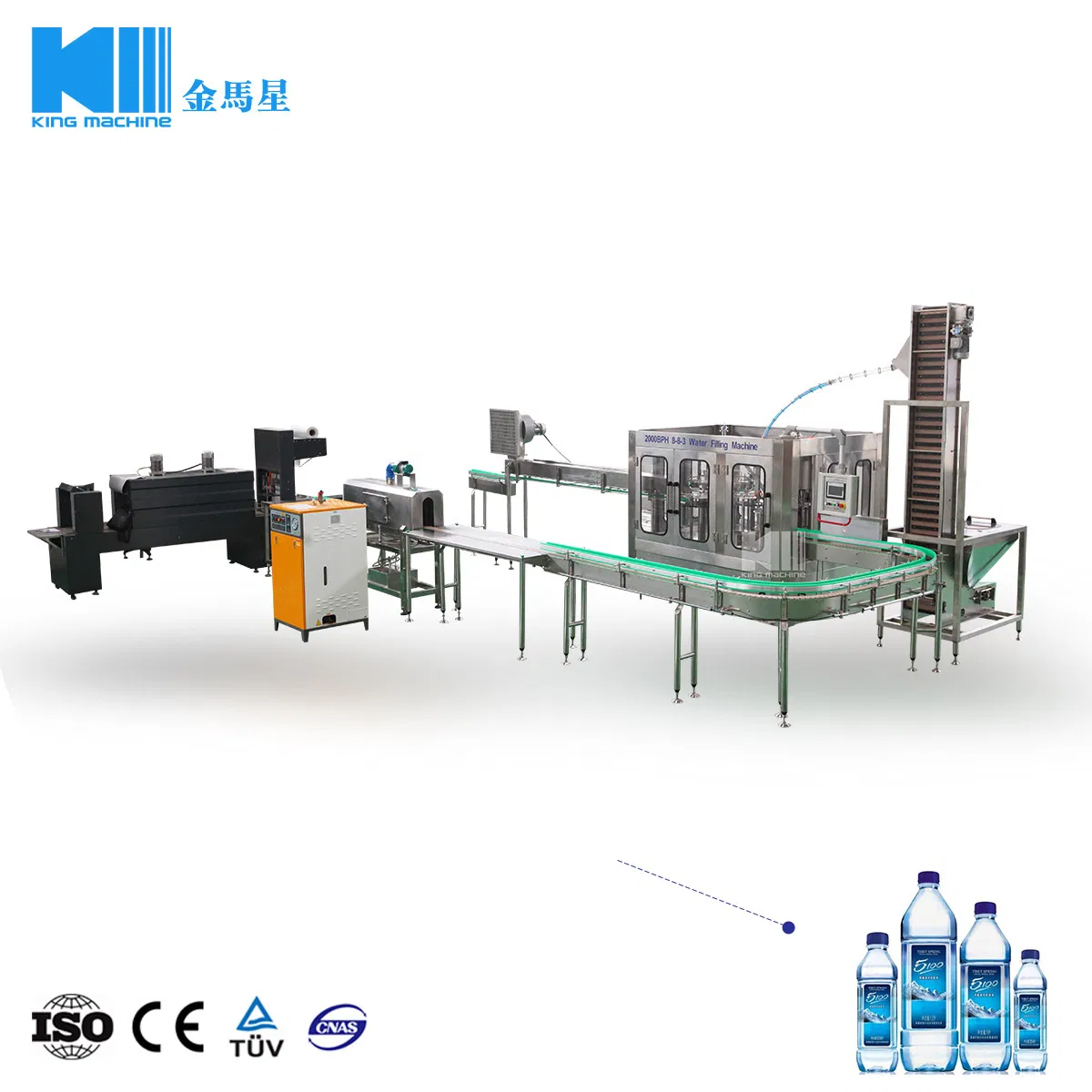

Complete solution for water filling plants including water treatment, washing, filling, capping, labeling, and automatic packing systems.

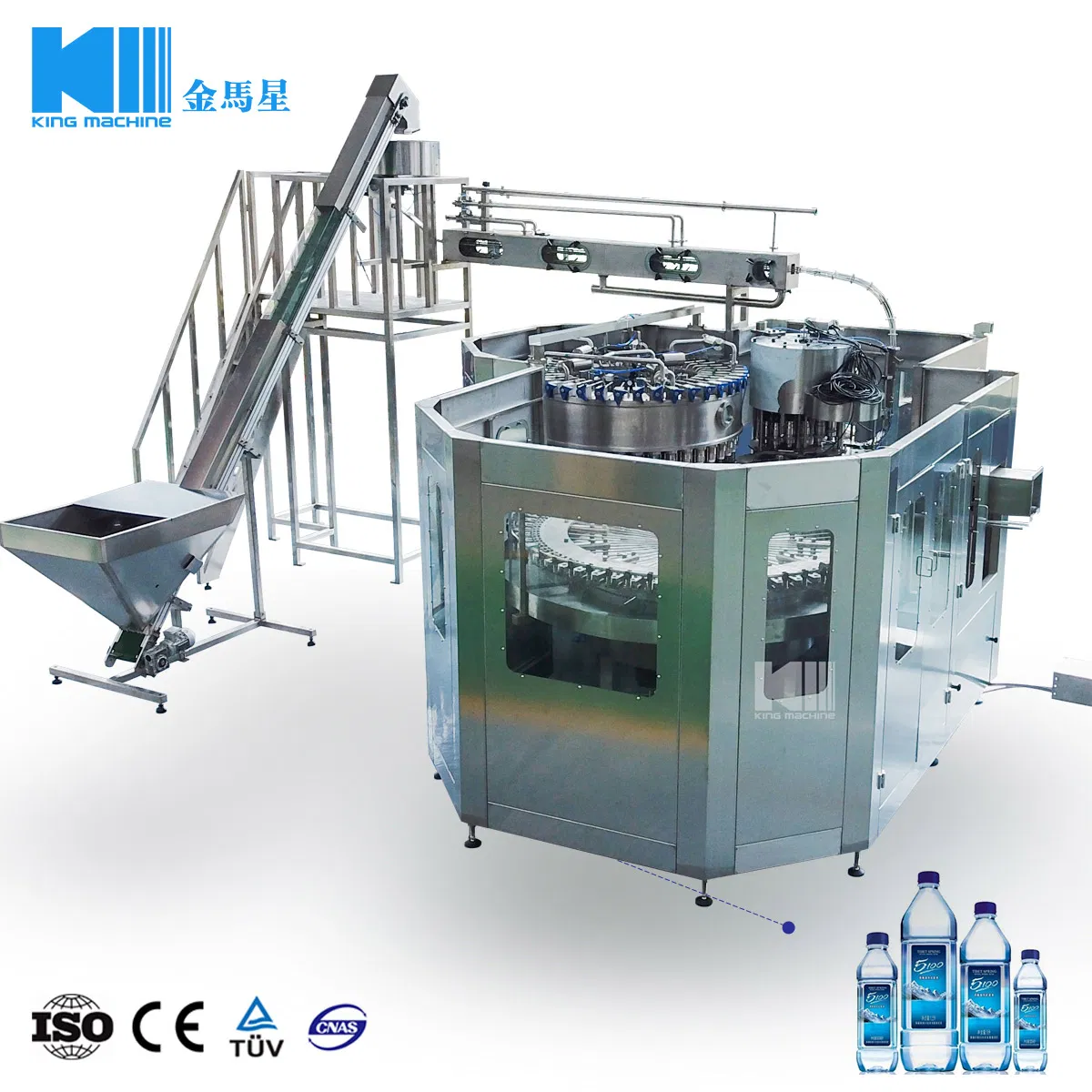

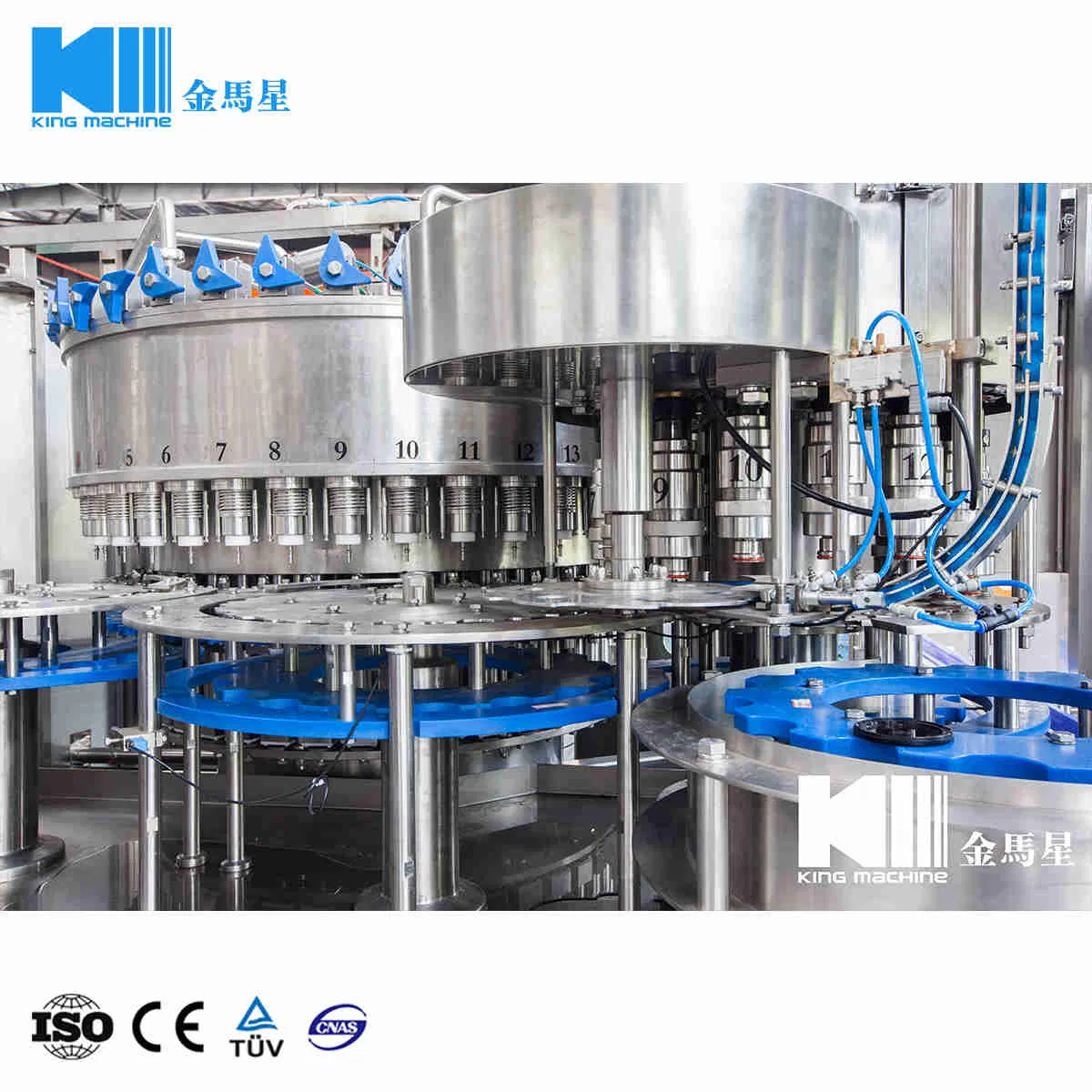

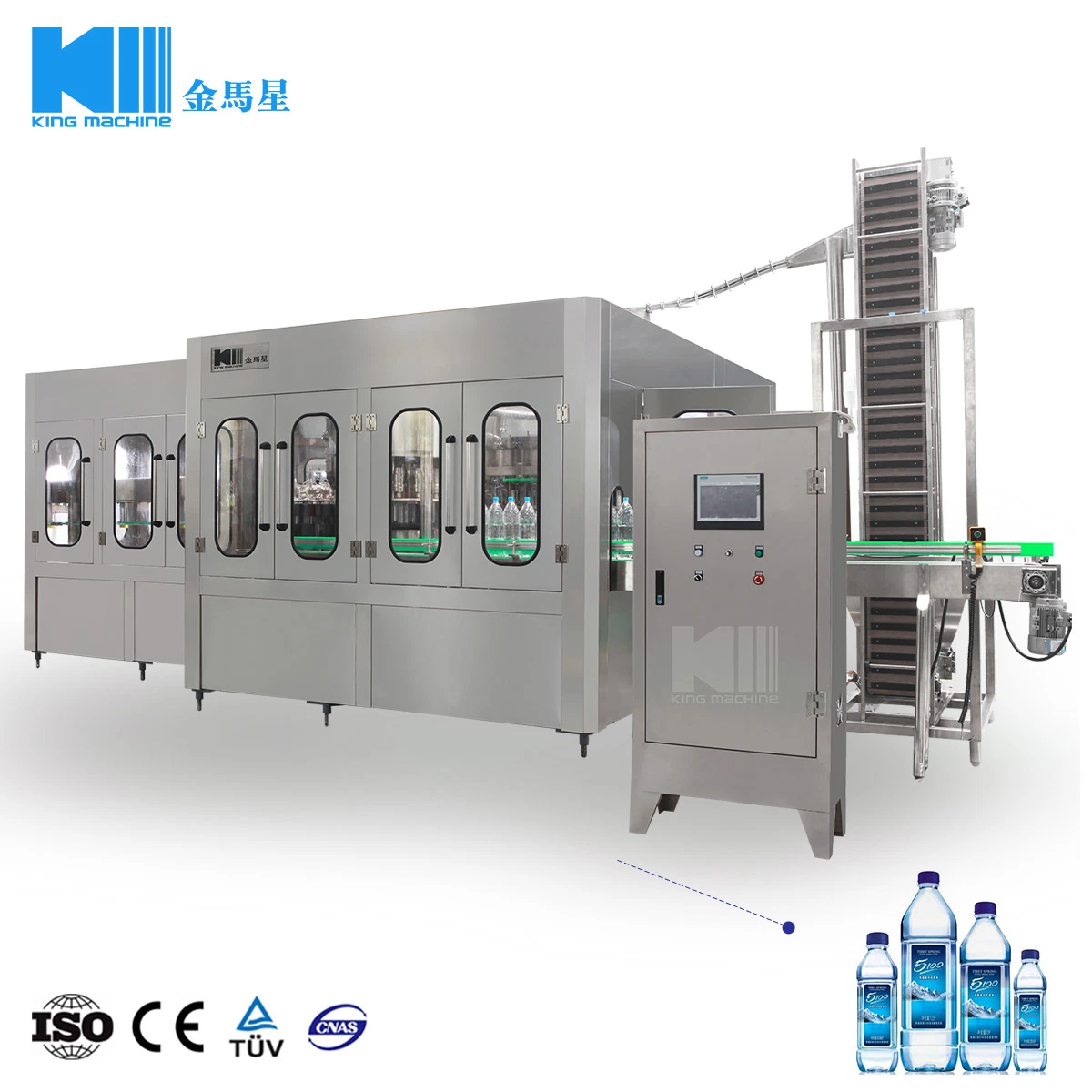

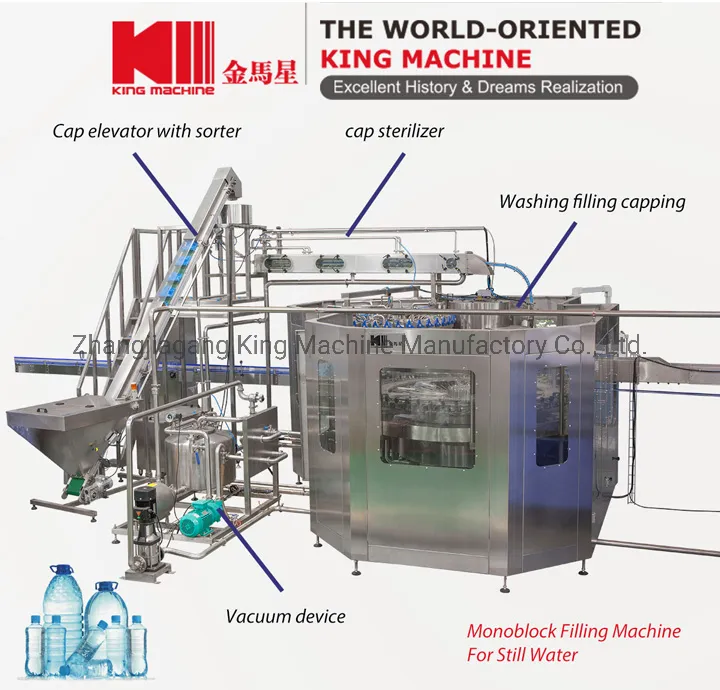

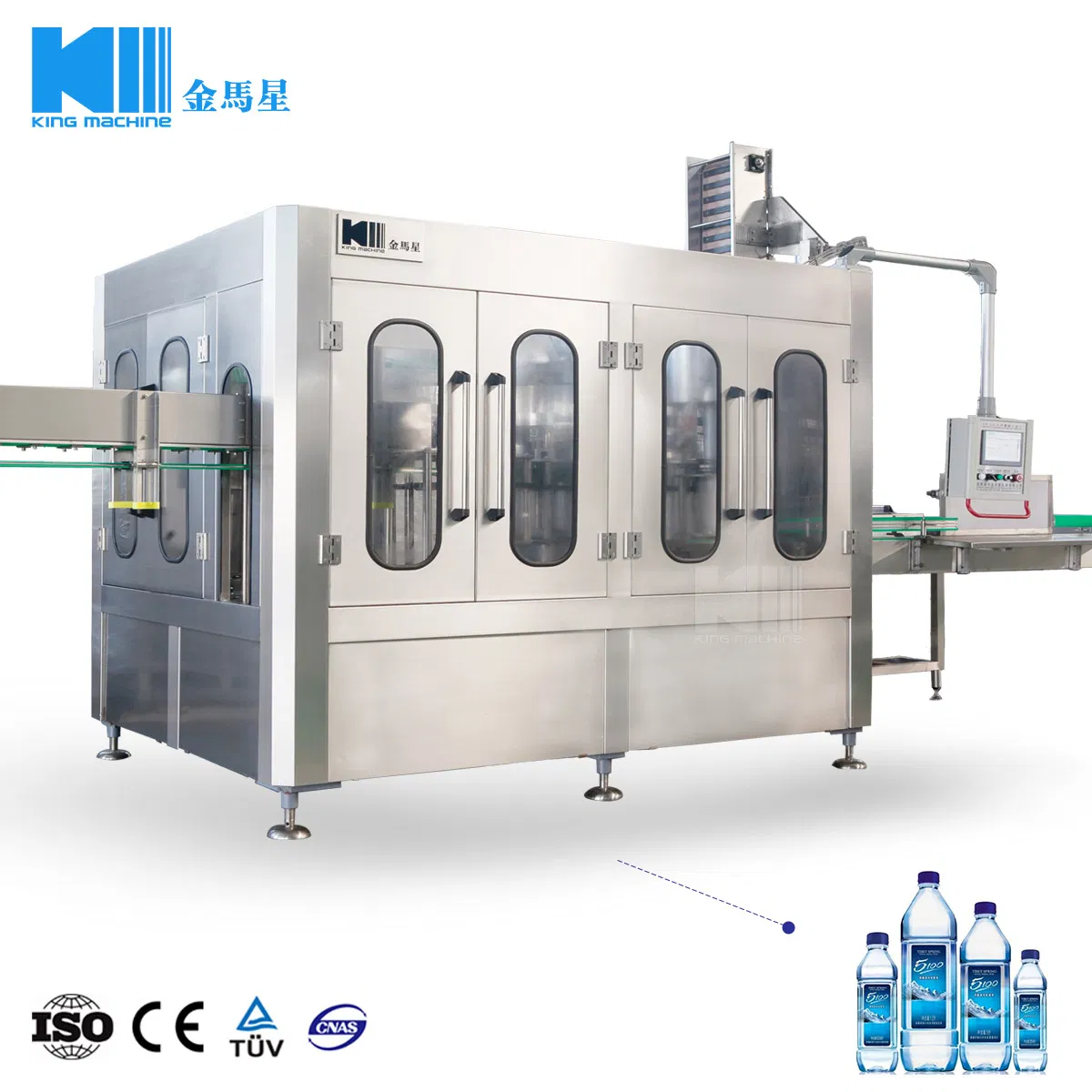

The CGF Wash-filling-capping 3-in-1 unit is used to produce polyester bottled mineral water, purified water, alcoholic beverages, and other non-gas drinks. This machinery integrates bottle washing, filling, and sealing into one automatic process, ensuring high sanitary conditions and production efficiency.
| Technical Parameter & Specifications | |
|---|---|
| Project Name | Full Automatic Complete Mineral Water Production Line (2000-20000bph) |
| Applicable Containers | PET Bottle (Square or Round) |
| Filling Volume | 100ml - 2000ml |
| Neck Type | Customizable as per request |
| Adjustable Specs | Bottle diameter ≤105mm, Height ≤335mm |
| Electrical Supply | 380V±5%, 3Phase, 50HZ±1% |
| Ambient Conditions | Temperature: 10~40ºC; Humidity: No dew |

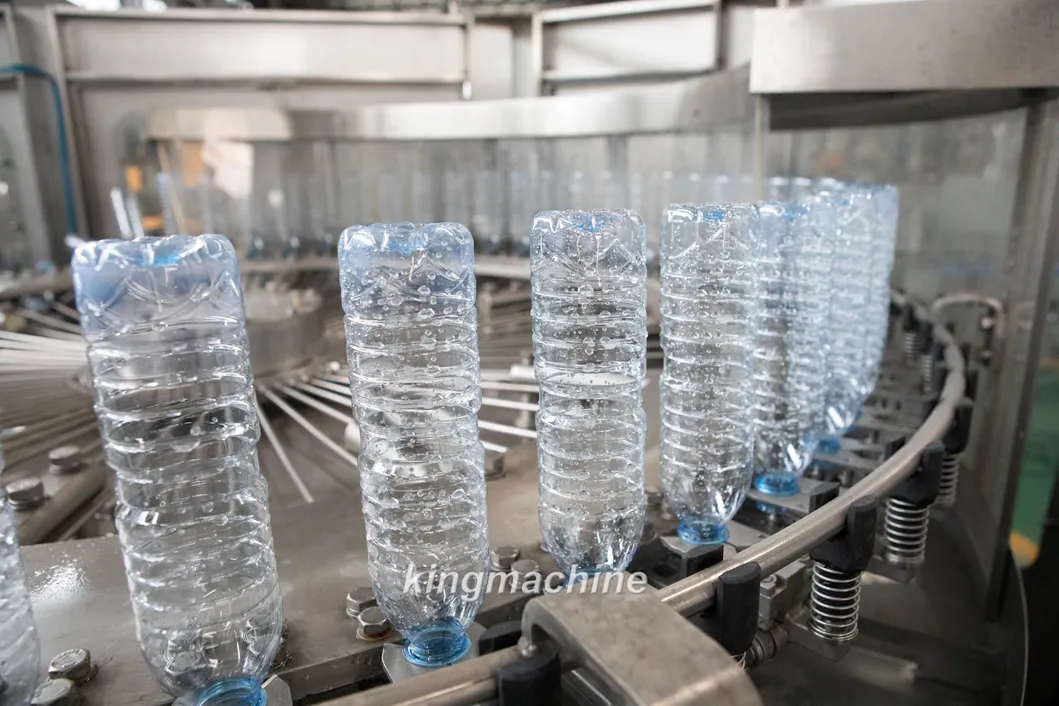

Features SUS304 stainless steel rotary disks and efficient spray nozzles for thorough internal cleaning while saving water. Uses Germany Igus corrosion-resistant bearings.

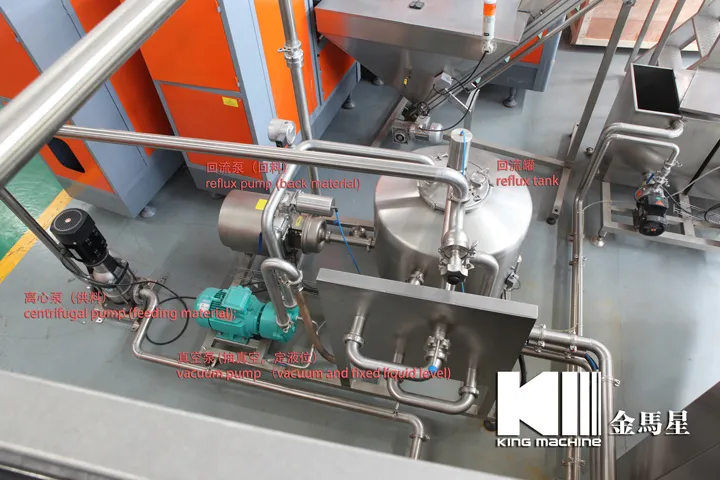

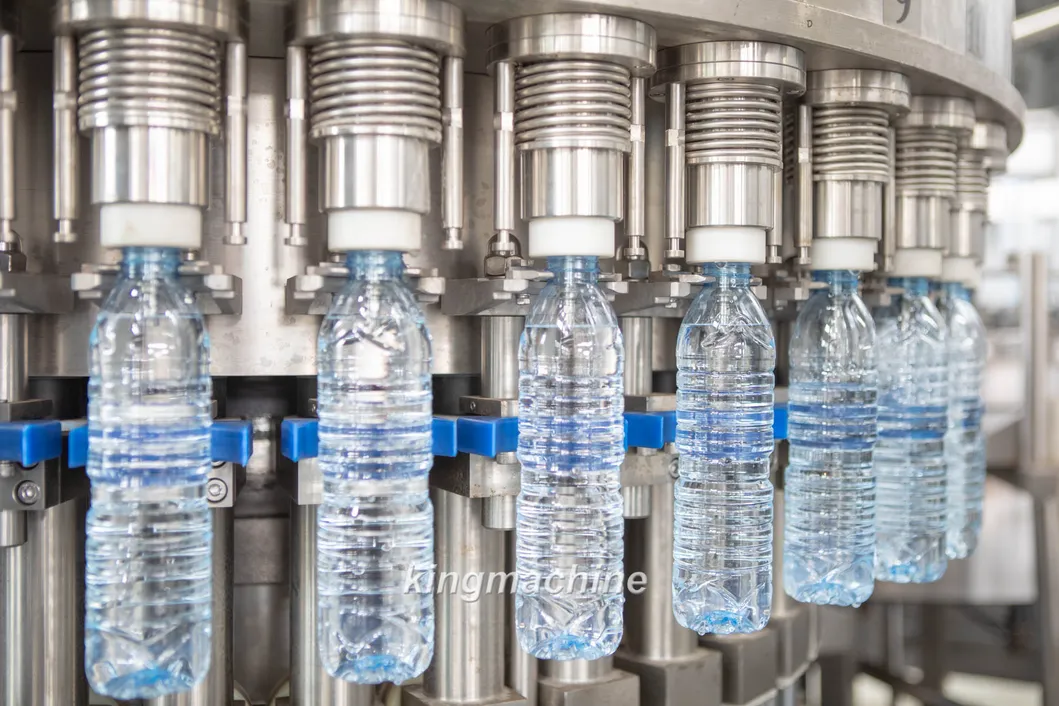

Utilizes gravity filling methods with high-accuracy SUS304 valves. The design ensures precise filling quantities and prevents liquid loss.

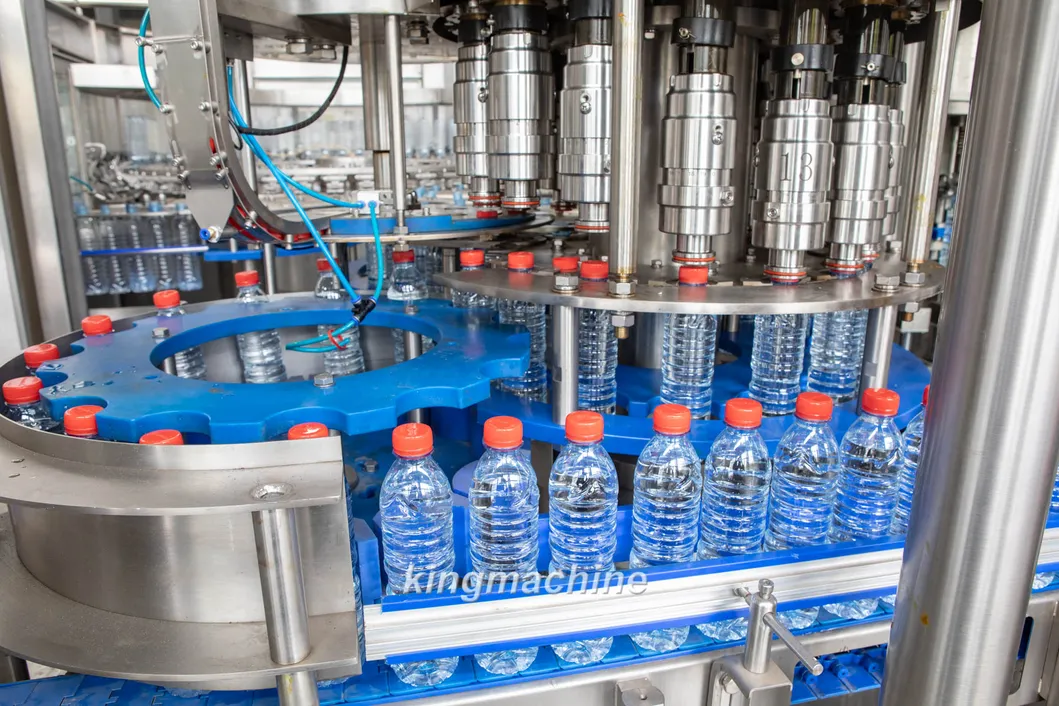

Highest precision component in the 3-in-1 unit. Employs advanced Italian technology to minimize product defect rates during the sealing process.
Large gravity flow valves designed for rapid filling without secondary pollution at the bottle mouth.
Direct connection technology between wind access and move wheels eliminates the need for complex screw and chain adjustments.
Stable bottle transmission that doesn't require equipment level adjustments when changing bottle shapes.
Equipped with PLC automatic control systems and high-end components from Mitsubishi, Schneider, and OMRON.

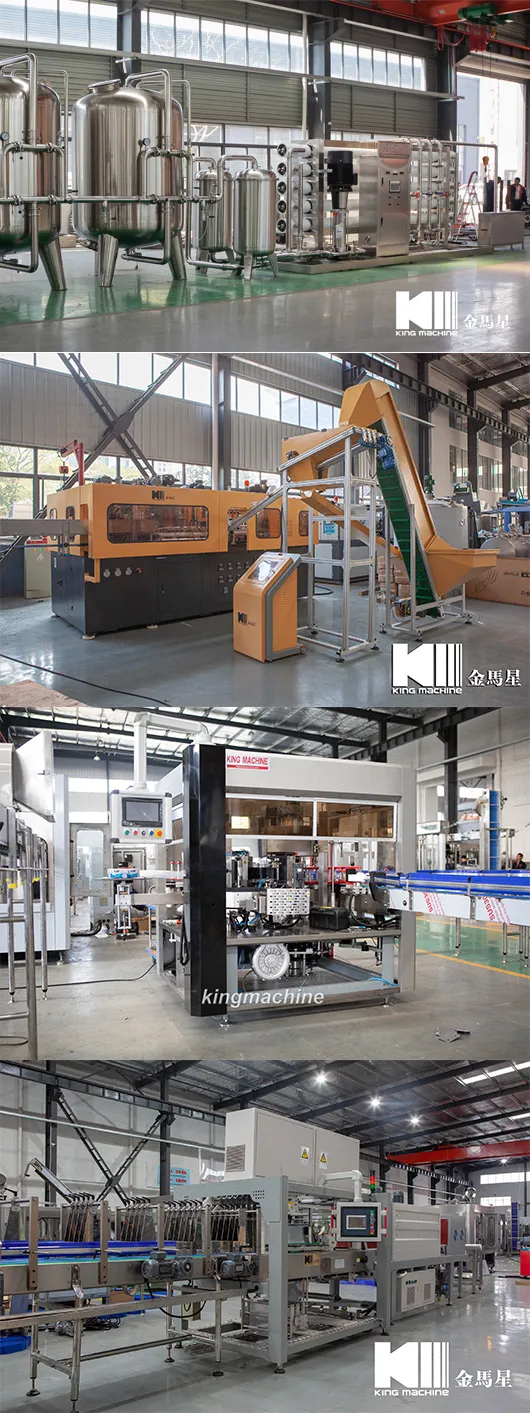

Removes organic matter, iron, and manganese. Includes sand filters, active carbon, and UV sterilizers to meet fresh drinking water standards.
High mechanical strength and non-cracking results for PET preforms. Precise measurement for bottle mouths and threads.
